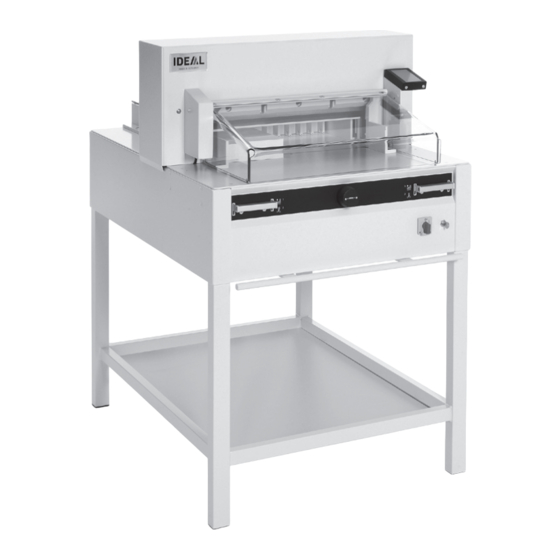

KRUG+PRIESTER IDEAL 4855 Operating Instructions Manual

Guillotines
Hide thumbs Also See for IDEAL 4855:

Advertisement

Quick Links

Download this manual
https://www.supplychimp.com/
Guillotines
GB Operating Instructions
IDEAL 4855
IDEAL 5255
IDEAL 6655

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDEAL 4855 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KRUG+PRIESTER IDEAL 4855

Summary of Contents for KRUG+PRIESTER IDEAL 4855

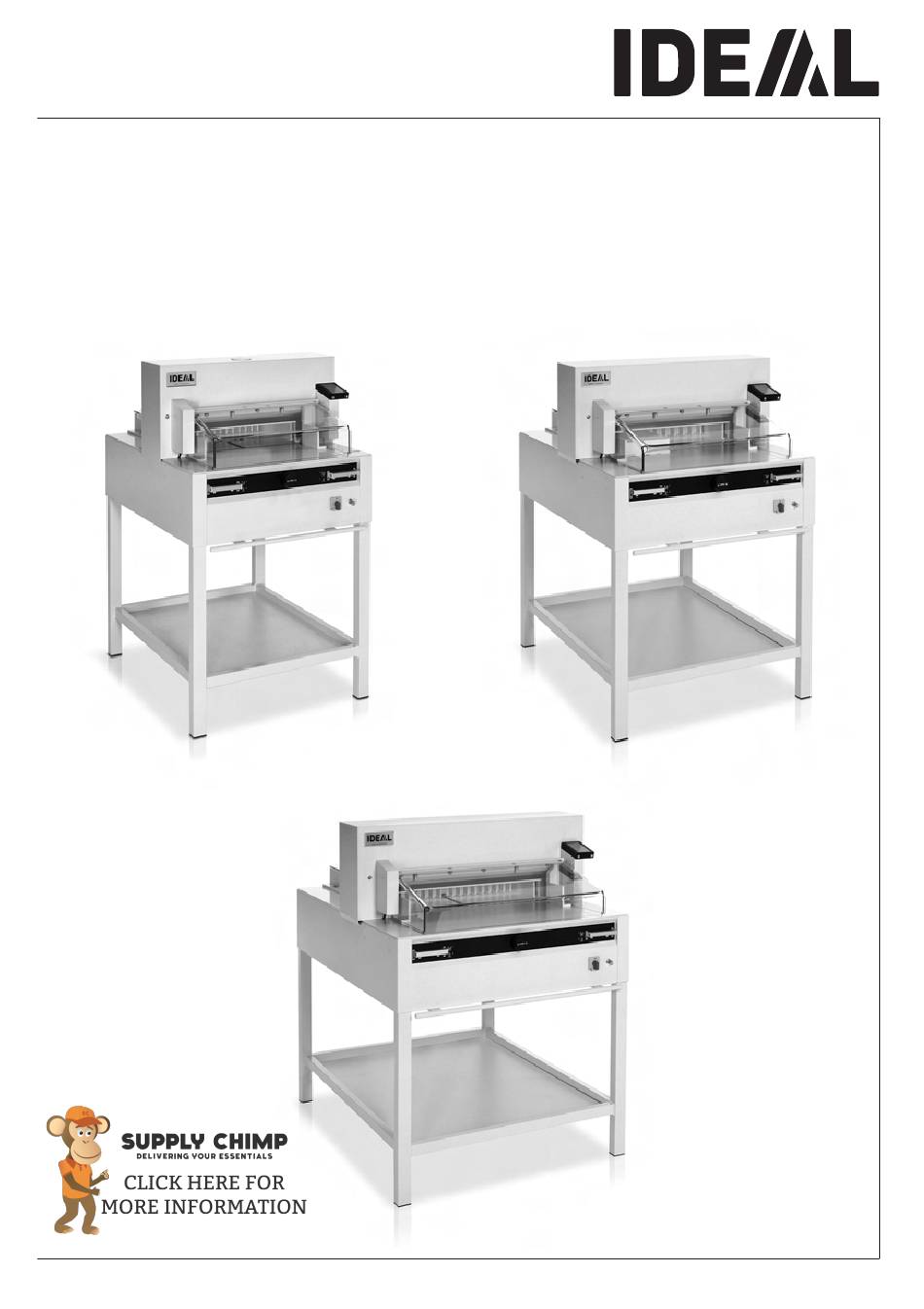

  • Page 1 Guillotines GB Operating Instructions IDEAL 4855 IDEAL 5255 IDEAL 6655...
  • Page 2 • Safety precautions • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 3 https://www.supplychimp.com/ • Safety precautions • Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin ! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
  • Page 4 • Safety precautions • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 29 und 31). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 29 and 31).
  • Page 5 https://www.supplychimp.com/ • Safety precautions • DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 29 og 31) FARE! Risiko for legemlig beskadigelse. Nikdy nenechávejte nůž bez krytu. Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu (viz.
  • Page 6 • Safety precautions • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections...
  • Page 7 https://www.supplychimp.com/ Safety precautions • • The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 8 Safety precautions • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! (Front safety guard (A), rear screwed safety guard (B) and panel (C).
  • Page 9 https://www.supplychimp.com/ Safety precautions • • The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is <...
  • Page 10 Safety precautions • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Connect the power cord to a single phase socket. 230V / 10A min 115V / 15A min Ensure free access to mains! When not in use for a longer period switch off.
  • Page 11 https://www.supplychimp.com/ Safety precautions • • Protect mains cable against heat, oil and sharp edges! Danger! Blade must always be covered by the pressing bar. Clamping Blade - 11 -...
  • Page 12 Installation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Remove the stand from the wooden pallet. 4 strong people are required to lift the machine from the pallet and place it on the stand. Secure with 4 screws (A). Put the shelf (B) on the stand.
  • Page 13 https://www.supplychimp.com/ Installation • • Tools can be kept in the holder provided . Cutting sticks (A) can be put in the tool holder - 13 -...
  • Page 14 Installation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Side tables (A), left and right are available as an option (Nr. 9000 528). Plug into socket. The machine must be connected directly to the socket. - 14 -...
  • Page 15 https://www.supplychimp.com/ Operation • • It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A). •...
  • Page 16 Operation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Position the main switch to "I" (A). Insert the key for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use.
  • Page 17 https://www.supplychimp.com/ Operation • • Optical cutting line (A) that indicates the exact position of the cut. Blade cuts on the front edge (B) of the light beam. (Only use when no exact cut is required). Position the paper on the backgauge (A) and side lays left or right (B).
  • Page 18 Operation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 The clamp moves automatically when cutting is activated. The paper can also be pressed in advance. Clamping and cutting is activated by the actuators (A) on the front table.
  • Page 19 https://www.supplychimp.com/ Operation • • Close the safety guard. Cutting activation: Press both actuators of the two-handed control system (A) simultaneously and keep pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting, release both actuators (A) of the two-handed control.
  • Page 20 IDEAL 4855 = 45 cm, 17.72 inches IDEAL 5255 = 52 cm, 20.47 inches IDEAL 6655 = 61 cm, 24.02 inches •...
  • Page 21 https://www.supplychimp.com/ Operation • • Cutting activation Warning! • Run backgauge to the front for turning the paper stack • Do not interrupt the upward movement of the blade by performing switching procedures • Wait until the display is green before activating a cut •...
  • Page 22 Operation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Eject function If EJECT is pressed instead of START after inserting the measurement , the backgauge will advance forwards so that paper can be removed. Finally the backgauge moves to the last setting.
  • Page 23 = program number. Second figure on display = program step. Smallest cutting measurement IDEAL 4855 3,0 cm/1.18 inch IDEAL 5255 3,5 cm/1.38 inch IDEAL 6655 2,5 cm/0.98 inch Each program step corresponds to one dimension. The indicated program step can be overwritten at any time.
  • Page 24 Operation • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Adapting a program when the printer’s imprint deviates • Press PRG. RUN "Load program no." appears • Enter program number 01 ... 99, and with 2 x Enter proceed to Step 1 •...
  • Page 25 https://www.supplychimp.com/ Operation • • Eject function program • If a short measurement e.g. 30 cm and then a long measurement e.g. 40 cm is cut at the start of a program then it is wise to insert an EJECT after the first cut so that the paper is pushed to the front.
  • Page 26 Blade and cutting stick replacement • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 If the cutting quality decreases: • Check the cutting depth (see page 34). • Check the cutting stick (see page 30). • Replace or grind the blade (see page 26 - 34).
  • Page 27 https://www.supplychimp.com/ Blade and cutting stick replacement • • Turn the blade depth adjustment screw to the left until it stops. (Screwdriver found in tool set (A) or tool holder (B). Close the safety guard (1.). Lower the blade by pressing both cutting actuators (2.). Keep one actuator pressed and turn off the main switch (3.).
  • Page 28 (A) (in the tool set). The slot must correspond to position "0" (B). Only IDEAL 4855 Unscrew the blade screws (C) on the right hand side. Remove the special wrench .Close the safety guard, and turn on the main switch until the blade returns to the home position.
  • Page 29 (2.). Then put the blade changing tool (A) into place and fasten it to the blade (3.). Remove 2 blade screws (1.) IDEAL 4855 and 3 blade screws (1.) IDEAL 5255, IDEAL 6655. Loosen the grips (2.) of the blade changing tool (A) lightly and allow the blade to be taken downwards out of the machine (3.).
  • Page 30 Blade and cutting stick replacement • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Take out the cutting stick with a small screw- driver. If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times).
  • Page 31 https://www.supplychimp.com/ Blade and cutting stick replacement • • Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A). • Make sure there is a space ot 11 mm or 0.43 inches! (B). •...
  • Page 32 Lightly tighten the remaining blade screws with washers (3.). Return blade changing tool to tool holder (A). Only IDEAL 4855 Lightly screw in the right blade screw with the washer (A) when the blade is lowered. Remove all tools and distribute paper along the entire cutting length (1.).
  • Page 33 https://www.supplychimp.com/ Blade and cutting stick replacement • • Lower the blade by pressing both cutting buttons (1.). Keep one button pressed and turn off the main switch (2.). With the special wrench (A) the 3 eccentrics should be screwed down (3.)until the paper is cut along the entire length of the blade (The blade must remain parallel, not too deep into cutting stick).
  • Page 34 Blade and cutting stick replacement • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 35 https://www.supplychimp.com/ Maintenance and cleaning • • Danger! Disconnect the mains before starting any service work or before removing the cover. Maintenance work may only be performed by trained staff. Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front.
  • Page 36 Maintenance and cleaning • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team.
  • Page 37 https://www.supplychimp.com/ Possible malfuntions • • Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 19. - 37 -...
  • Page 38 Possible malfuntions • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). - 38 -...
  • Page 39 https://www.supplychimp.com/ Possible malfuntions • • Machine turns off: • Machine overloaded. Safety button (A) or (B) ejects. (Allow 1 minute cooling time and reset the safety button (A) or (B). • Machine blocked. • Blade is blunt. Eliminate the cause, and push the safety button (A).
  • Page 40 Possible malfuntions • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) (see page 34).
  • Page 41 https://www.supplychimp.com/ Possible malfuntions • • Display illumination off • Machine is plugged in? (A) • Main switch on position "I"? (B) • Push in the safety button! (C) • Check the units fuse and the on-site circuit breaker! After 30 minutes the screen switches to energy-saving mode The screen is reactivated by touching the keypad area...
  • Page 42 • Accessories • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 Recommended accessories: Blade • Nr. 9000 130 IDEAL 5255 • Nr. 9000 025 IDEAL 6655 Cutting stick (6 pieces) • Nr. 9000 024 IDEAL 5255 • Nr. 9000 026 IDEAL 6655 Blade changing tool •...
  • Page 43 IDEAL 6655 1600 mm ** with side tables: (Depth) IDEAL 6655 1250 mm *** with side tables: IDEAL 4855 237 Kg *** with side tables: IDEAL 5255 261 Kg *** with side tables: IDEAL 6655 311 Kg - 43 -...
  • Page 44 Technical data • • • • IDEAL 4855 IDEAL 5255 IDEAL 6655 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2004/108/EG. Sound level information: Sound measurement to EN 13023 : 72,5 db (A) Subject to alteration without notice.
  • Page 45 https://www.supplychimp.com/ Technical data • • Krug + Priester has a certified quality management system according to DIN EN ISO 9001:2008 and a certified environmental management system according to DIN ISO 14001:2009. - 45 -...
  • Page 46 • • IDEAL 4855 IDEAL 5255 IDEAL 6655 EG-KONFORMITÄTSERKLÄRUNG EC-declaration of conformity Déclaration de conformité CE - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que 4855 GS-ID Nr. 11485002 UL-ID Nr.
  • Page 47 https://www.supplychimp.com/ IDEAL • Made in Germany Document Shredders • • Trimmers and Guillotines • •...
