Campbell OBS-5+ Operator's Manual
  1. Manuals
  2. Brands
  3. Campbell Manuals
  4. Measuring Instruments
  5. OBS-5+
  6. Operator's manual

Campbell OBS-5+ Operator's Manual

Turbidity and temperature monitoring system
Hide thumbs Also See for OBS-5+:
Table of Contents

Advertisement

Quick Links

Download this manual

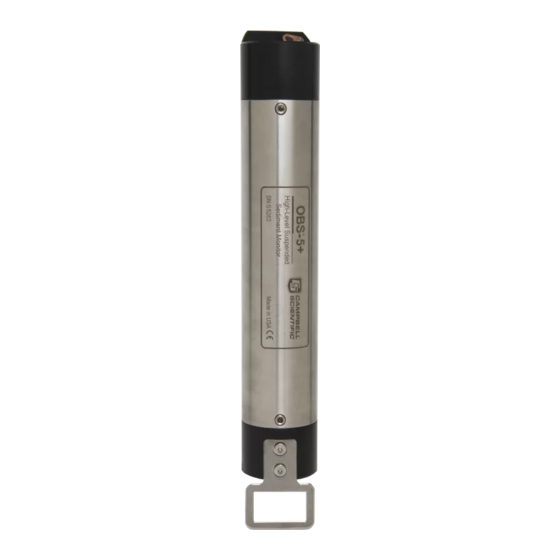

OBS-5+
Turbidity and Temperature
Monitoring System
Operator's Manual
Issued 7.12.09
©
Copyright
2007-2009 Campbell Scientific Inc.
Printed under licence by Campbell Scientific Ltd.
CSL 729
