Before using this product, please read this operating instruction carefully to use it properly. If you have any question, please contact your nearest distributor or TOHNICHI MFG. CO., LTD. This operating instruction should be stored in a safe place. An g le Disp lay M od u le M -DW...
(8) Use the product within the measurement range mentioned in the operating instruction. (9) Be sure to conduct periodic inspection on the product. If the product emits a foul odor or ignites during use, stop using it immediately, move this measuring instrument to a safety place, and contact TOHNICHI MFG. CO., LTD.

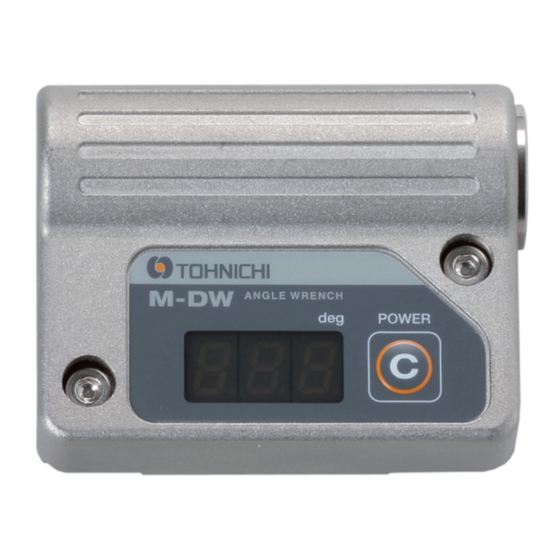

1 . Overview The M-DW is digital an angle module is designed to be attached to our torque wrench with limit switch. The LS type torque wrench can be used as an angle wrench by attaching this module. An angle from the setting torque of the torque wrench is measured.
4 . Nam es of Parts φ27 ③Battery Cap Module Fixing Screw ①Disp lay 16.5 ( 2 p c.) 21.5 ②POW ER(C) Key ①Display Displays an angle value. ② POWER (C) key 1.To turn on,press this key,wen turn off press this key more 2 seconds. 2.If this key is pressed while on the angle displays, the angle value will be cleared to 0.
Power-saving function ② The M-DW is automatically placed in the power-saving mode when it is not being used when not operating the key or activating the torque wrench The power-saving mode includes 3 phases which work as shown in the following table.
6 . Usag e ① Attach the M-DW to the LS type torque wrench. See “8. Attaching to the LS Type Torque Wrench”. This step is not required if you have purchased an integrated torque wrench. ② Adjust the setting torque of the torque wrench to the snug torque.
8 . Attaching to LS Torque Wrench 1 . Loosen 4 LS cover setscrews, LS Cover and open the LS cover. Screw 4 p c. ① 2 . Here are tw o set of tap p ed h ole for m ou n tin g th e lim it sw itch , so m ake m arks on th e sw itch b ase as sh ow n in Screw...
Page 8
4 . After replacing the limit switch with connector, check the continuity utilizing a tester. If the lever of the lim it sw itch w ith connector is p ressed too strong ly it w ill cause dam ag e, and if the pressing am ount is insufficient the sw itch w ill not operate norm ally.
9 . Precautions for Use Use the digital angle module in such a manner that it will be perpendicular to ● the rotation axis of the bolt. Otherwise, the angle cannot be accurately measured. The product is not available for the LS type torque wrench where it cannot be attached in a perpendicular manner.
1 0 . Error Messages The M-DW has a self-diagnostic function and displays an error message at the time of failure. The following lists the error messages and their remedies. Error Description Remedy solution message Place the torque wrench standstill in a stable place free from vibrations.
