Summary of Contents for Tohnichi CEM3-G-BTA Series

  • Page 1 CEM3-G-BTA MODEL Instruction Manual 1/35...

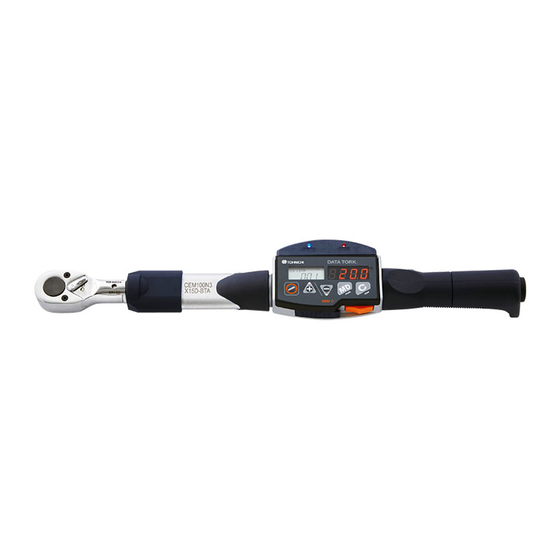

  • Page 2 1. Outline CEM3-G-BTA is the digital torque & angle wrench. It can measure the torque and angle also does the judgments by the torque and angle. The Bluetooth® can output the data and judgment result wireless. Any other specifications and features are same as CEM3-G model.
  • Page 3 CEM3-G-BTA makes judgment due to lower, higher limit torque, lower, higher limit angle and double tightening detection angle if the tool is set. If you select the "M3 ID" output mode the output data string will has the 2 digit of judment result with data. (Refer 7.5 Output format for details) If you set the "NG_MAN"...

  • Page 4: Method Of Operation

    Method of operation 2.1. Continuous display (RUN mode) when the memory counter displays “000” [Without angle setting] [With angle setting] 2.2. Maximum value display (PEAK mode) when the memory counter displays between “001” to “999” [Without torque setting] [With torque setting] [With angle setting and data memory] 4/35...
  • Page 5 2.3. Button operations ▲: Upper arrow key Send a counter one by one or continuously to read out the measured data. Keep pushing to fast-forward. ▼: Down arrow key Reverse one counter or continuously to read out the measured. Keep pushing to fast-forward.
  • Page 6 3. Explanation of each mode The CEM3-G-BTA has two modes that are Measurement mode and Display mode 3.1. Measurement mode  Inspection mode (MODE-M) MODE-M is used for the re-tightening and breakaway inspections. If you set the high and low limit torque values the tool makes judgment the measured torque result.

  • Page 7: Explanation Of Functions

    Error in angle speed detection  Turn off the power once. Keep the body still (no movement) and turn on the power again. -If “Err0” disappears, then it operates normally. -If not, contact TOHNICHI or the nearest distributor to ask for repair. 7/35...
  • Page 8  Turn off the power once and turn it on again without touching any keys. -If error disappears, then is operates normally. -If not, contact TOHNICHI or the nearest distributor to ask for repair. <Err 8> Error in data memory -Contact TOHNICHI or the nearest distributor to ask for repair.

  • Page 9: Auto Power Off

    4.9. Auto power off When it is left without any key operation of tightening operation for a set time (default setting is 3 minutes) or unloading condition (loading torque is less than 7.5% of the max. torque range of the model), the power will automatically turn off. If you prefer not to use Auto power off, set it to OFF.
  • Page 10 5. Operation examples 5.1. Tightening mode operation Shows example on the following settings: Angle setting Measurement mode setting MODE-T Lower limit torque setting 30N・m Higher limit torque setting 45N・m Trigger torque setting 5N・m An_d Double tightening detection angle setting 5 deg An_L Lower limit angle setting 10 deg...
  • Page 11 After release the torque load, the tool judges the measured data due to Auto reset timer setting. (If Auto reset timer is off, press "MEM" key to judge the result) [When judgment is OK] The blue LED turns on and the tool outputs the measured data to external device. If the Output format is set to “M3-ID”, it outputs the torque and angle data.
  • Page 12 5.2. Inspection mode operation Shows example on the following settings: Angle setting Measurement mode setting MODE-M Lower limit torque setting 35N・m Higher limit torque setting 45N・m Trigger torque setting 5N・m An_d Double tightening detection angle setting 0 deg An_L Lower limit angle setting 10 deg An_h Higher limit angle setting...
  • Page 13 [When judgment is OK] The blue LED turns on and the tool outputs the measured data to external device. If the Output format is set to “M3-ID”, it outputs the torque and angle data. [When judgment is NG] ・ If you select “NGAUTO” in NG setting, solid red LED inform NG result for 1 second and all measured data are automatically sent to external device.

  • Page 14: Communication Conditions

    6. Power operation and connection for Bluetooth® ・ When press "Power" switch to turn on the tool the Bluetooth® powers on and the red power LED turns on. ・ To turn off the Bluetooth® power, press and hold the “Power” switch more than 2 seconds during the tool power is on.

  • Page 15: Input Commands

    7.3. Communication format  When set “M3+ID” for communication format setting 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 0 0 1 + 1 0 0 + 0 9 0...
  • Page 16 7.5. Example of communication  When set to the 50.00 for Higher and 40.00 for lower limit torques External device CEM3-BTA A T 0 3 7 , 5 0 . 0 0 , 4 0 . 0 0 ● Hi/Lo limit torques CR LF R E 0 0 3 , O K ●...
  • Page 17 8. Various settings 8.1. Setting items Setting items Display Default Selectable from Note Angle feature OFF/ ON Measurement mode MODE-M MODE-M/ MODE-T N ･ m/ kgf ･ cm/ kgf ･ m/ Unit of torque USEL N ･ m lbf ･ in/ lbf ･ ft Lower limit torque 0 ～...
  • Page 18 8.2. Setting procedure by key operation  Set the counter to “000” using upper or down arrow keys. The following displays are shown depend on the angle feature is on or off. [Without angle setting] [With angle setting]  Press and hold the “MD” key more than 2 seconds to move setting mode i.
  • Page 19 Measurement mode (Default: MODE-M) Select the mode from “MODE-T” (Tightening mode) or “MODE-M” (Inspection mode). ※ When set to “MODE-M” the double tightening detection angle setting will be skipped. If there is double tightening detection angle setting and change to “MODE-M” the double tightening detection angle will be set to “0”.
  • Page 20 Higher limit torque (Default: 0) ※ If the value is set less than lower limit torque the display shows an error "SETERR". Set the number using down arrow key and move the digit using upper arrow key. Press “MEM” key to save setting and go to next. Press “MD” key to skip setting and go to next. Press “C”...
  • Page 21 viii. Lower limit angle (Default: 0) Set the lower limit angle from trigger torque ※ If the value is set less than double tightening detection angle the display shows an error "SETERR". Set the number using down arrow key and move the digit using upper arrow key. Press “MEM”...
  • Page 22 Auto reset timer (Default: 0.0) Set reset timer from 0.0⇔0.1⇔0.2⇔0.3⇔0.4⇔0.5⇔1.0⇔2.0⇔3.0⇔4.0⇔5.0 sec. To inactivate auto reset function, select 0.0 sec. Select the reset timer using upper or down arrow keys. Press “MEM” key to save setting and go to next. Press “MD” key to skip setting and go to next. Press “C” key to go back to RUN mode (measurement mode).
  • Page 23 xiv. Auto power off (Default: 3MIN) Select an auto power off timer from 3 minutes, 10 minutes, 30 minutes or NONE. The tool turns off after time that is set, however the Bluetooth® is not turned off. If it is set to NONE, requires the “Power” key is pressed to turn off or the tool will work until the battery is gone.
  • Page 24 xvi. Baud rate (Default: 9600bps) Select the baud rate from 2400, 4800, 9600 or 19200 bps. Match it with your PC setting. Select the baud rate using upper or down arrow keys. Press “MEM” key to save setting and go to next. Press “MD” key to skip setting and go to next. Press “C” key to go back to RUN mode (measurement mode).
  • Page 25 xviii. Parity (Default: NONE) Select the parity from EVEN, ODD or NONE. Match it with your PC setting. NONE ＯＤＤ Ｐｒｔ ＥＶＥＮ Select the parity using upper or down arrow keys. Press “MEM” key to save setting and go to next. Press “MD” key to skip setting and go to next. Press “C” key to go back to RUN mode (measurement mode).

  • Page 26: Default Setting

    Default setting All data would be cleared and settings back to default when select "DFT-Y" except for the time and date settings. Select the "DFT-Y" or "DFT-N" using upper or down arrow keys. When display shows "DFT-Y" and press “MEM” key, the tool is factory reset. to save setting and go to next. Press "MEM"...

  • Page 27: Hour Setting

    xxi. Time (Clock) Press "MEM" key to next. Press "MD" or "C" keys to go back to RUN mode (measurement mode).  Hour setting Set hour using upper or down arrow keys. Press “MEM” key to save setting and go to next.
  • Page 28  Year setting Set year using upper or down arrow keys. Press “MEM” key to save setting and go to next. Press “MD” key to skip setting and go to next. Press “C” key to go back to RUN mode (measurement mode). ...
  • Page 29 9. Data output and clear 9.1. Batch measurement data output Set the counter number to the upper end that you need using ▲▼ keys, then press “MD” key to the next Set the number on right display to the lower end that you need using ▲▼ keys then press “MD”...
  • Page 30 If the tool is connected with external equipment via Bluetooth, right display turns off and left display shows numbers from lower to upper end during batch data output NOTE: Press "C" key to cancel data output. Other keys won't work during data output Batch data output completed Press “MD”...
  • Page 31 9.2. Data processing function It processes the measured data to calculate the data quantity, maximum/ minimum/ average torque of the selected data range Set the counter number to the upper end that you need using ▲▼ keys, then press “MD” key to the next Set the number on right display to the lower end that you need using ▲▼...
  • Page 32 The display shows minimum value of the selected data range. Press “MD” key to proceed or press “C” key to go back to measurement mode The display shows minimum value of the selected data range. Press “MD” or “C” key to go back to measurement mode 32/35...
  • Page 33 9.3. Data clearance 9.3.1. Delete a single data Set the counter number to be deleted Press "C" key to delete ・ The example display if there is no Hi/ Lo limit torque setting ・ The example display if there are Hi/ Lo limit torque settings 9.3.2.
  • Page 34 Example 1) To delete data 001 to 200 Set counter to 200 and press “MD” key. Confirm STT shows 1 and press “MD” to the next Example 2) To delete data 101 to 200 Set counter to 200 and press “MD” key. Set STT number to 101 and press “MD” to the next Example 3) To delete all data Set counter to 999 and press “MD”...

  • Page 35: Error Messages

    Turn off the power once and turn it on without touching any other keys. continuously pressed -If error message disappears, then it operates normally. "MEM" key is Err3 -If error message remains on the display, contact TOHNICHI continuously pressed or your nearest distributo to ask for repair. "C" key is Err4 continuously pressed "MD"...
