Tohnichi ATGE-G Operating Instructions Manual

Digital torque gauge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL ATGE-G
OPERATING INSTRUCTION

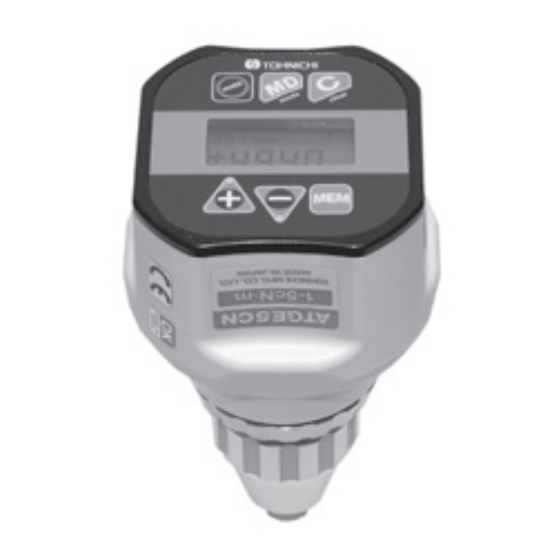

ATGE-G
ATGE-G Model
ATGE5CN-G
ATGE5CN-G
(display put together)
(display put apart)
ATGE5CN-G
(display removed and
optional table attached)
To use this product properly and safely, please read this manual carefully before use. If you have
any question about the product and its operations, please contact your nearest distributor or
TOHNICHI MFG. CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATGE-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tohnichi ATGE-G

Summary of Contents for Tohnichi ATGE-G

  • Page 1 (display removed and optional table attached) To use this product properly and safely, please read this manual carefully before use. If you have any question about the product and its operations, please contact your nearest distributor or TOHNICHI MFG. CO., LTD.
  • Page 2 To customers: Before using this product, please read this operating instructions carefully to use it properly. If you have any question, please contact your nearest distributor or TOHNICHI MFG. CO., LTD. This operating instruction should be stored in a safe place.
  • Page 3 Warning • Do not use this instrument in an atmosphere of flammable gas or steam. · Use in such an atmosphere may cause a fire. • Disassembly or modification of the instrument is prohibited. · It may result in loss of safety, degradation in functions, shortening of product life, or failure. •...
  • Page 4 · Do not bend or pull the cable connecting the gauge and the display. · The battery inside ATGE-G is for sample use only, and may not be fully charged. · Do not connect ATGE-G to PC by USB cable when a battery is not inside. It may cause malfunction.

  • Page 5: Table Of Contents

    4. Detailed Descriptions of Various Functions....8 5. How to Use..............11 5-1. Before use ...............11 5-2. Rotating ATGE-G itself to measure ......12 5-3. Fixing ATGE-G on the table to measure....13 6. Operating Examples ............15 6-1. Computing function..........15 6-2. All measurement data output at a time .....16 6-3.

  • Page 6: Features

    (11) Data can be transferred directly to PC through the USB interface. (12) Compliant with CE marking for international use including EU. (13) Table Attachment is available as option to use ATGE-G fixed on it. (14) USB power adapter is available for continuous use.

  • Page 7: Names Of Parts And Descriptions

    Names of Parts and Descriptions (1) (2) (6) (7) (11) (12) (10) (1) Liquid Crystal Display Displays the counter, auto memory, [Display] residual battery indicator, units and Counter Battery indicator Torque unit torque value. Power Switch Turns the power to ON/OFF. When the power is turned ON, key checks are conducted automatically.
  • Page 8 Memory Key Saves the measured data and moves the counter forward to the next. The displayed measurement data is output to the external device. When auto memory (0.1 to 5 sec.) is in effect, MEM key cannot be used for saving. Mode Key This key selects the number of sample, max/min/average value, etc.

  • Page 9: Detailed Descriptions Of Various Functions

    · If Err 0 message disappears, then it can be used normally. · If Err 0 message remains displayed, press reset switch, press clear again under stable condition. If it still remains, there may be a sensor problem. Contact TOHNICHI to seek further assistance.
  • Page 10 If it still remains, the membrane switch, the circuit board or the internal memory may have problem. Contact TOHNICHI to seek further assistance. If the “Err” remains displayed, it is advised to turn off the power or take out the lithium battery to stop electricity consumption.
  • Page 11 (7) Residual battery indicator The LCD indicates the remaining battery status in 4 steps. There is enough battery remaining. Remaining battery amount is not enough. The battery life is half of the full operating time. It is almost time to replace batteries. Battery alarm There is no battery remaining.

  • Page 12: How To Use

    How to Use 5-1. Before use · Before  using  the  torque  gauge,  open  the  display  portion  and  remove  the  battery  insulating sheet. Pull out sheet Torque gauge Battery insulating Battery cover Display · Turn on the power of the torque gauge and make sure that there is enough battery remaining. · If the battery indicator is flashing, change the batteries. 10mm · To hold an object firmly in the chuck, the length should be 10mm or longer. Note * The body and display part is connected by a cable, be careful not to damage the cable. * Be careful not to pinch the cable when putting the display part into the body.

  • Page 13: Rotating Atge-G Itself To Measure

    5-2. Rotating ATGE-G itself to measure · Before measurement, check that ATGE-G shows 0 on the display. If it is not zero, push clear key at no load condition and get 0. · Hold the chuck holder fixed and open the three-jaw chuck. Place the object inside the three- jaw chuck.

  • Page 14: Fixing Atge-G On The Table To Measure

    5-3. Fixing ATGE-G on the table to measure · Take out the display and place ATGE-G on the measuring board with the three-jaw chuck side up. When measuring an object (other than a screwdriver) · Before measurement, check that ATGE-G shows 0 on the display. If it is not zero, push clear key at no load condition and get 0.
  • Page 15 * Make sure to fix the measuring object in the center and keep it level against the torque gauge in order to measure the accurate torque. * In case that auto-zero be effected when the measuring object is set to ATGE-G, make sure the object and ATGE-G is in stable condition.

  • Page 16: Operating Examples

    Operating Examples 6-1. Computing function The number of data, maximum value, minimum value and average value of the measurement data in the specified range are calculated. Using this button, set the counter at the upper limit Memory display cN·m value in the range of data to be calculated. Press MD.

  • Page 17: All Measurement Data Output At A Time

    6-2. All measurement data output at a time All measurement data in the specified range is output at a time to an external device (PC). Make sure output baudrate is set and USB cable (No.384) is connected in advance. Set the counter at the upper limit value in the range of Memory display cN·m data to be output.

  • Page 18: Delete Measurement Data

    6-3. Delete measurement data Measurement data can be deleted as follows. (1) Delete 1 data Display the counter number of data to be deleted. Memory display cN·m Press to delete. The measurement is deleted. cN·m (2) Delete data in the specified range Set the counter at the upper limit value of the data range to delete.

  • Page 19: External Output Specifications

    * If the ATGE-G and multiple TOHNICHI USB serial output devices (CEM3, R-DT999, ST2) are connected to a PC at the same time, communication may not be established. * Do not connect ATGE-G to PC with USB cable when no battery is installed, or when the battery is running out (Battery alarm).

  • Page 20: Procedures Of Various Settings

    Procedures of Various Settings This chaper explains various settings. Measurement display * Before setting, make sure that the counter shows 000 (RUN mode). Press MD for voer 2 seconds till the mode setting display appears. Then, release the MD key. 8-1.

  • Page 21: Auto Memory/Reset Setting

    8-3. Auto memory/Reset setting (3) Auto Memory/Reset setting Select the timing of Auto memory/Reset. (0.0 0.0 sec.) Auto Memory/ Reset set at If you prefer manual saving, set it to 00. 0.5 sec. Press to save the setting and proceed to next. The display returns to the measurement display.

  • Page 22: Change Of Battery

    Change of Battery (1) If the battery alarm is displayed, the battery needs replacement. (2) Put apart the display part and slide open the battery cover on the back side of the display. (3) Remove the battery from the holder, and replace it with a new battery. Battery cover (4) Slide forward the battery to take it out.

  • Page 23: Optional Accessories

    (7) Adapter for USB connector BA-5 This adapter can be used when using external power supply. Use it with USB connecting cable No.384 (Option). To change to external power supply, the dip switch inside ATGE-G needs to be changed. Specification: Input Voltage AC100-240V 50/60Hz Output Voltage DC5V 0.5A, Output terminal USB...

  • Page 24: How To Use The Usb Adapter

    How to Use the USB Adapter (1) Use the USB connecting cable. (Part No.384) (2) Slide open the battery cover on the back of the display. Battery cover (3) Set the dip switch to “USB” position with a slotted screwdriver. * Do not apply excessive force to the dip switch not to damage it.
  • Page 25 (5) Connect USB cable B-type (female) to USB connecter (male) on Display part. Display part USB mini B-type (female) USB cable mini B-type (female) (6) ATGE turns ON as you plug AC adapter Power ON plug to power source. LCD display shows as follows. All display kgf·cm N·m ozflbf·inft...

  • Page 26: Specifications

    Specifications Specifications Accuracy ±2%+1digit Torque Range cN·m mN·m gf·cm ozf·in Model Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit ATGE05CN-G 0.1-0.5 0.001 0.01 10-50 0.15-0.7 0.001 ATGE1CN-G 0.2-1 0.001 2-10 0.01 20-100 0.3-1.4 0.001 ATGE2CN-G 0.4-2 0.002 4-20 0.02 40-200 0.6-2.8 0.002 ATGE5CN-G...
  • Page 27 Dimensions Reset switch Chuck diameter USB terminal USB cap Chuck holder Approx. ø69 Three-jaw chuck ø67 Display 72.6 Approx. 120...
  • Page 28 Designs and specifications are subject to change without notice. TOHNICHI MFG. CO., LTD. TEL: +81-(0)3-3762-2455   FAX: +81-(0)3-3761-3852 2-12, Omori-kita, 2-Chome Ota-ku, Tokyo 143-0016, JAPAN E-mail: overseas@tohnichi.co.jp Website: http://tohnichi.jp N. V. TOHNICHI EUROPE S. A. TEL: +32-(0)16-606661   FAX: +32-(0)16-606675 Industrieweg 27 Boortmeerbeek, B-3190 Belgium E-mail: tohnichi-europe@online.be Website: http://www.tohnichi.be TOHNICHI AMERICA CORP. TEL: +1-(0)847-947-8560   FAX: +1-(0)847-947-8572 1303 Barclay Blvd. Buffalo Grove, IL 60089 U. S. A. E-mail: inquire@tohnichi.com inquiry@tohnichi.com Website: http://tohnichi.com TOHNICHI AMERICA CORP. - Atlanta Office TEL: +1-(0)678-423-5777   FAX: +1-(0)678-423-1333 4046 Hwy. 154 Suite 103 Newnan, GA 30265 TOHNICHI SHANGHAI MFG. CO., LTD. TEL: +86-(021)3407-4008   FAX: +86-(021)3407-4135 Rm. 5 No. 99 Nong1919. Du Hui Road.  ⒸTOHNICHI Mfg. CO., LTD. All Rights Reserved. Minhang. Shanghai. P.R. China 16.07.HT 14.08.L...
