Summary of Contents for Exile XM15.1
- Page 1 AMPLIFIER Owner’s Manual Models: XM15.1 XM15.4 XM30.2 JAVELIN...
- Page 2 Into 2 ohm (Sub CH) 800w x 1 Into 4 ohm (Sub CH) 500w x 1 Fuse Size 40Ax3 Power/Ground Wire Size 4 AWG Dimensions 15.0in L x 7.5in W x 2.3in H © 2017 Exile Audio • www.exileaudio.com Amplifier Manual...
- Page 3 This must be connected to the fused positive terminal (+12V) of the car’s battery. REMOTE This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition. Amplifier Manual © 2017 Exile Audio • www.exileaudio.com...
- Page 4 This amplifier requires two 40A fuses. the vehicle. 12V+ This must be connected to the fused positive terminal (+12V) of the car’s battery. © 2017 Exile Audio • www.exileaudio.com Amplifier Manual...
- Page 5 This amplifier requires two 40A fuses. the vehicle. 12V+ This must be connected to the fused positive terminal (+12V) of the car’s battery. Amplifier Manual © 2017 Exile Audio • www.exileaudio.com...
-
Page 6: Monoblock Power Amplifier
This must be connected to the fused positive terminal (+12V) of the car’s battery. REMOTE This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition. © 2017 Exile Audio • www.exileaudio.com Amplifier Manual... -
Page 7: Power Amplifier
Aux Input: Battery Battery phone/ mp3 player Ground Distribution Block 4 ga. Cabin Subwoofer Tower zoned line driver Amplifier Amplifier Amplifier Input Input Input 4ohm 2ohm subwoofer tower speakers 2ohm cabin speakers Amplifier Manual © 2017 Exile Audio • www.exileaudio.com... -
Page 8: Installation Diagrams

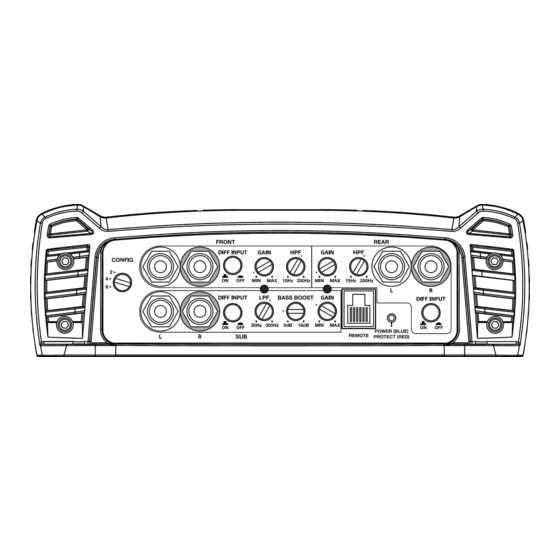

Note: Recommended system settings are indicated by the arrows on the silkscreen shown above. The amplifier should come preset to these positions. To get back to the recommended settings first turn the knob all the way counter clockwise, then turn it clockwise untill you reach the arrow indicated for each knob. © 2017 Exile Audio • www.exileaudio.com Amplifier Manual... -
Page 9: Installation Diagram
To get back to the recommended settings first Channel RCA Channel RCA turn the knob all the way counter clockwise, then turn it clockwise untill you reach the arrow indicated for each knob. Amplifier Manual © 2017 Exile Audio • www.exileaudio.com... - Page 10 To get back to the recommended settings first Channel RCA Channel RCA turn the knob all the way counter clockwise, then turn it clockwise untill you reach the arrow indicated for each knob. © 2017 Exile Audio • www.exileaudio.com Amplifier Manual...
- Page 11 Amplifier Manual © 2017 Exile Audio • www.exileaudio.com...
- Page 12 LIMITED WARRANTY Exile warrants this product to be free from defects in material and workmanship under normal use for a period of one year from date of original purchase when purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90 days from date of purchase, regardless of place of installation.
