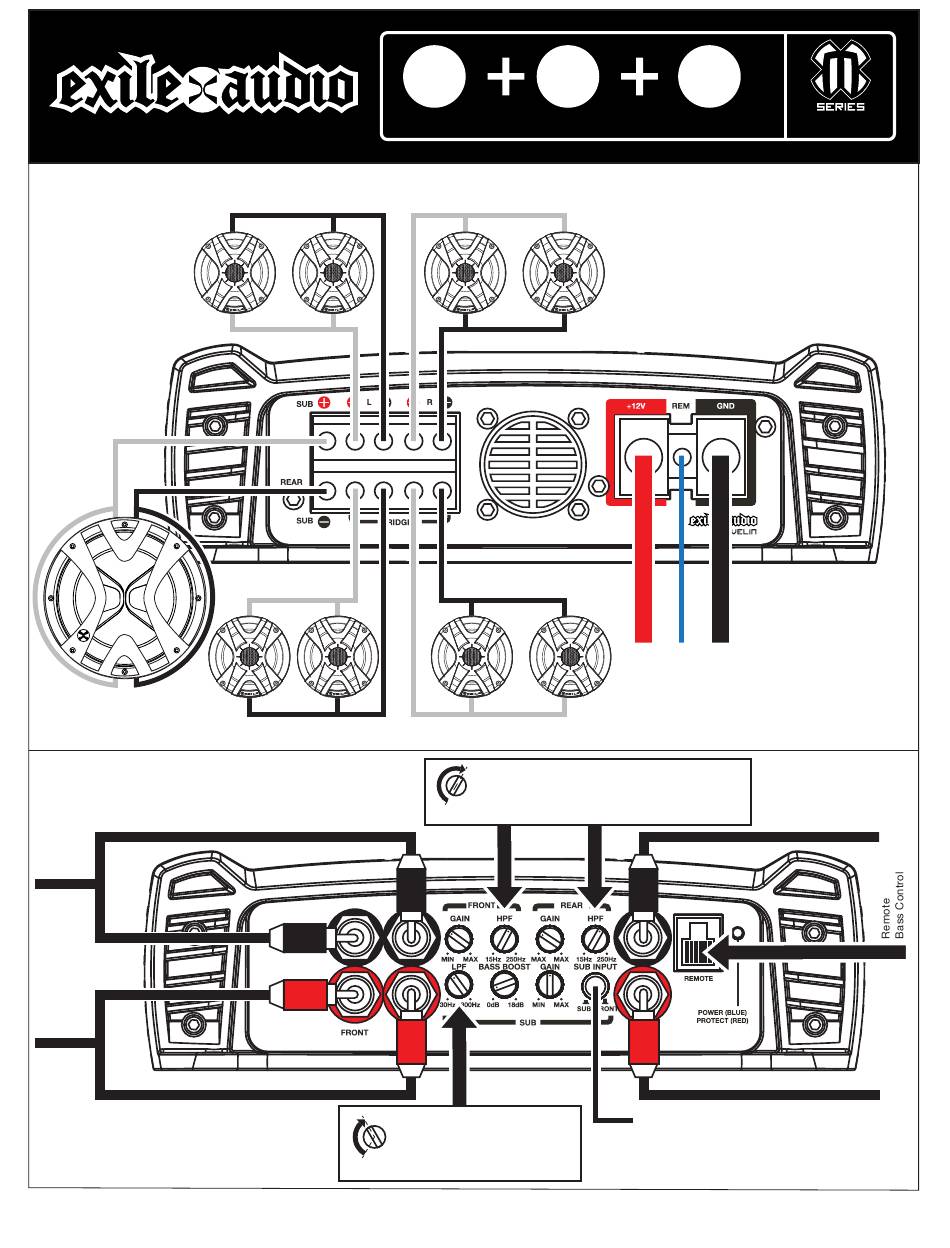

Exile XM Series Wiring Manual

TERMINAL SIDE
Subwoofer
800W @ 2ohms
SIGNAL SIDE
Note: Use a Y adapter to split the left channel output from
your source unit to supply both the front left and rear left
inputs on your amplifier.
Left
Channel
RCA
Right
Channel
RCA
Note: Use a Y adapter to split the right channel
output from your source unit to supply both the
front right and rear right inputs on your amplifier.
© 2013 Exile Audio.
1
Javelin
120W @ 2ohms
Front Left
Rear Left
120W @ 2ohms
1 o'clock
LPF Settings: For Subwoofer
Starting at 30Hz
(fully turned counterclockwise),
turn the knob to 11 o'clock
11 o'clock
4
pr
Cabin Speakers
120W @ 2ohms
Front Right
Rear Right
120W @ 2ohms
HPF Settings: For XM7 / SXT65 / SX65M:
Starting at 15Hz (fully turned counterclockwise),
turn the knob to 1 o'clock
1
DVC Subwoofer
WIRING CHART
4 gauge power and ground required.
Subwoofer Channel RCA's
Note: If the source unit is not a ZLD you can share the
sub input with the front channel input by pressing this
button to "front". This eliminates the need to run a third
par of RCA cables to your amplifier, for the sub input.
www.exileaudio.com
