- Page 1 . e x i l e a u d i o . c o m SHIFT SERIES AMPLIFIERS OWNER’S MANUAL Designed and Engineered MODELS: S50.4 / S110.5 / S60.1 / S100.1 / S150.1 in the USA. Made in China...

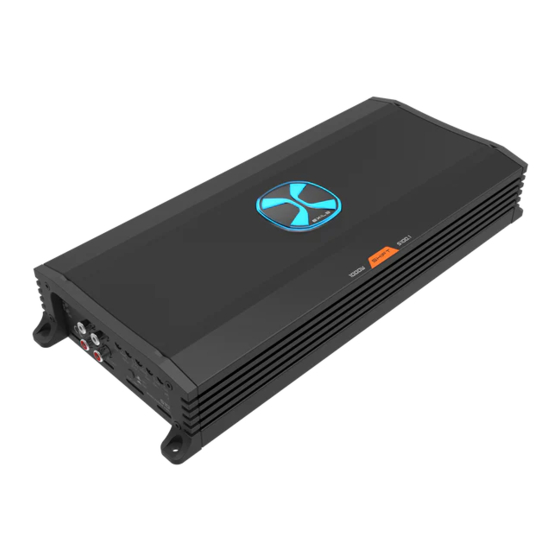

- Page 2 FEATURES The Shift series amplifier offer big power in a compact chassis. This makes for easy installation in tight spaces without sacrificing any of the output. Shift amps utilize Class D efficiency and come packed with features to give you ultimate control over your audio.
-
Page 3: Specifications
SPECIFICATIONS SPECIFICATIONS Monoblock Multichannel Amplifier Class Class D Amplifier Class Class D Frequency Response: 15 - 220Hz Frequency Response: 20 - 20kHz Total Harmonic Distortion < 1% Total Harmonic Distortion <1% Signal to Noise Ratio: 70dB (1W) Signal to Noise Ratio: 75dB (1W) Gain Range 0.2 - 5V... -
Page 4: Control Functions
CONTROL FUNCTIONS S60.1 / S100.1 / S150.1 9 10 11 S100.1 / S150.1 S60.1 / S100.1 / S150.1 6: REMOTE Connect the remote controller to control the Subwoofer amplifier volume from the driver seat location, for ease of adjustment during playing. 7: INPUT These RCA input jacks are for use with source units that have RCA outputs. - Page 5 CONTROL FUNCTIONS S50.4 S50.4 S50.4 1: SPEAKER 8: LPF/FUL/HPF SELECTOR & FREQUENCY ADJUST KNOB Connect speaker/subwoofers to these terminals. Be sure to check wire for proper This switch and knob control Low Pass Filter, High Pass and Full pass function. polarity.
- Page 6 CONTROL FUNCTIONS S110.5 LEFT RIGHT +12V INPUT AUTO INPUT FRONT REAR FRONT REAR LEVEL TURN ON PROTECT GAIN GAIN PRE IN AUDIO MINM 200Hz MINM 200Hz SPK IN DC OFFSET SUBWOOFER INPUT LEVEL GAIN SUBSONIC BASS BOOST REMOTE PRE IN BRIDGED 5 CHANNEL POWER AMPLIFIER MINM...
-
Page 7: Wiring Diagrams
WIRING DIAGRAMS MONO AMPLIFIER WIRING (ONE WOOFER LOAD) MONO AMPLIFIER WIRING (TWO WOOFER LOAD) - Page 8 WIRING DIAGRAMS DUAL AMPLIFIER BRIDGE MODE AMP 1 - MASTER AMP 1 - MASTER AMP 2 - SLAVE AMP 2 - SLAVE ATTENTION When bridging two amplifiers you should use same model amplifiers. Please make sure the negative speaker terminal of two amplifiers are connected by the same gauge cables as the positive terminal being used. DO NOT connect any signal cables to the input RCA jacks when bridged as slave unit.
- Page 9 WIRING DIAGRAMS S50.4 FOUR CHANNEL MODE S50.4 THREE CHANNEL MODE...
- Page 10 WIRING DIAGRAMS S110.5 FIVE CHANNEL MODE INPUT INPUT AUTO FRONT REAR FRONT REAR LEVEL TURN ON PROTECT GAIN GAIN PRE IN AUDIO MINM 200Hz MINM 200Hz SPK IN DC OFFSET SUBWOOFER INPUT LEVEL GAIN SUBSONIC BASS BOOST REMOTE LEFT RIGHT +12V PRE IN MINM...
- Page 11 LIMITED WARRANTY Exile warrants this product to be free from defects in material and workmanship under normal use for a period of one year from date of original purchase when purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90 days from date of purchase, regardless of place of installation.
