Summary of Contents for WIKA 3D Instruments CPP30
- Page 1 Operating Instructions Hand Test Pumps CPP30 CPP700-H KT-205 05/15...
-
Page 2: Table Of Contents
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic Operating Instructions Hand Test Pumps 1. General ........................3 1.1 General Instructions & Warranty ..................3 1.2 Safety Instructions......................3 2. Product Description ....................4 3. Mounting Instructions....................5 4. Operation .................... -
Page 3: General
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 1. General 1.1 General Instructions & Warranty In the following chapters detailed information on the CPP30 and CPP700-H hand test pump and its proper use can be found. Should you require further information, or should there be problems which are not dealt within detail in the operating instructions, please contact the address below: 3D Instruments, LP 2900 East White Star Ave. -
Page 4: Product Description

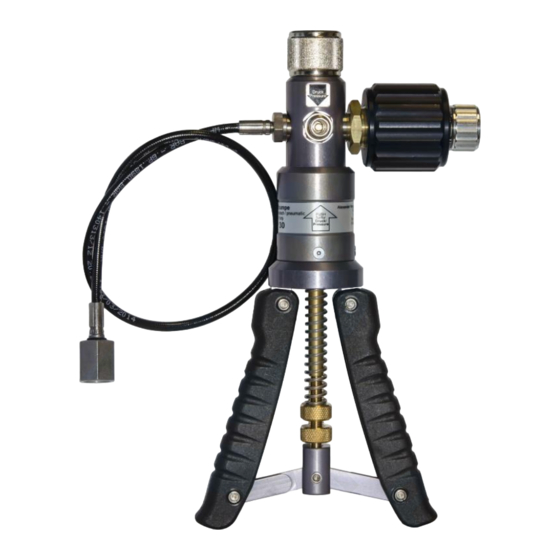

Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 2. Product descriptions The CPP30 and CPP700-H hand test pumps are used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurements. These pressure tests may be carried out in laboratories, workshops or on site at the measuring point. -
Page 5: Mounting Instructions
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 3. Mounting instructions The reference instrument is fitted to the upper side of the hand test pump CPP30 or CPP700-H. The reference instrument is sealed to the ¼” NPT Fitting using Teflon Tape. This Fitting connects to each of the Hand Pumps by an integral O-Ring sealing gasket (1). -
Page 6: Operation
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 4. Operation of Hand Pumps 4.1 CPP700-H Operation Make sure, the CPP700-H is in priming position. If necessary, press the Pressure/Bleed Switch (4). Pressure/Bleed Switch (4) Handles in position for: -Priming- -High Pressure Generation- ... -
Page 7: Cpp30 Vacuum Operation
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 4.2 CPP30 Pressure Operation Make sure that the Pressure Relief Valve (3) is open. Check whether the Change-Over Switch (4) is correctly set for pressure (see the sticker on the pump). -
Page 8: Maintenance Instructions
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic Turn the Pressure Relief Valve (3) clockwise until it is closed. There is no hard “stop”. Please do not force. Press the Ergonomic Handles (5) until the approximate vacuum has been reached down to a maximum of -13 psig (-26 in/Hg or -0.9 bar). -
Page 9: Troubleshooting
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 6. Troubleshooting If the pressure or vacuum cannot be generated correctly or if the set pressure or vacuum does not stay stable, this is likely caused by incorrectly positioned or selected sealing gaskets. Please also check whether any adapters used on the test specimen have been tightened sufficiently to eliminate leaks. -
Page 10: Order Data / Accessories
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 8. Order Information / Accessories Description: Order No. CPP700-H Hydraulic Hand Pump 0 to 10,000 psi Range, Medium: Clean Water (free of calcium-carbonate / scale) or Hydraulic Oil. Includes ¼” NPT Female Gauge Fitting, 40” 14124909 Length (1 M) Hose with ¼”... -
Page 11: Service Kit Assembly Instructions
Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 9. Service Kit Assembly Instructions Service Kit P/N 12139786 for CPP30 Pneumatic Hand Pump Service Kit P/N 13001442 for CPP700-H Hydraulic Hand Pump 3D Instruments Operating Instructions for Hand Pumps Version 1.1... - Page 12 Hand Test Pumps CPP30 Pneumatic & CPP700-H Hydraulic 2900 East White Star Ave. Anaheim, CA 92806 U.S.A. Phone: 714-399-9200 Fax: 714-409-3371 E-mail: cs@3dinstruments.com Web: http://www.3dinstruments.com © 2015 3D Instruments, LP 3D Instruments Operating Instructions for Hand Pumps Version 1.1...
