Summary of Contents for WIKA mensor 83

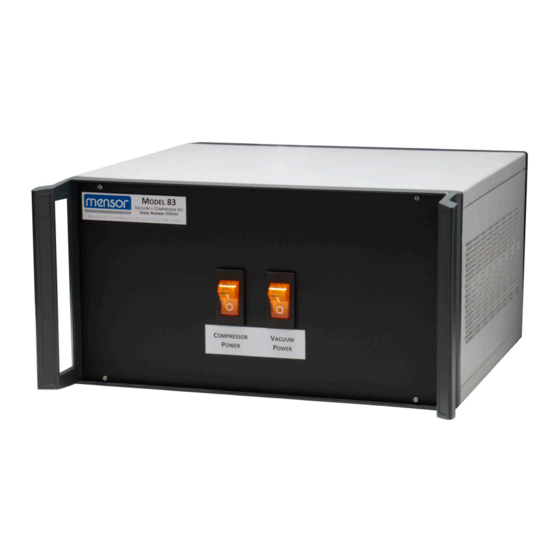

- Page 1 Operating instructions Vacuum Pump and Compressor Set Model 83 Vacuum Pump and Compressor Set, Model 83...
- Page 2 Operating instructions © 02/2020, Mensor, LP. All rights reserved. Mensor is a registered trademark of Mensor, LP. All other brand and product names are trademarks or registered trademarks of their respective companies. Prior to starting any work, read the operating instructions! Keep for later use! Mensor operating instructions Vacuum Pump and Compressor Set, Model 83...
-
Page 3: Table Of Contents
Beyond the Warranty ......12 Calibration Services by Mensor or WIKA worldwide ..... 13 6. -
Page 4: General Information
- Application consultant: Tel.: (+1) 512-396-4200 (+1) 800-984-4200 (USA only) Fax: (+1) 512-396-1820 E-Mail: sales@mensor.com techservices@mensor.com Importer for Europe WIKA Alexander Wiengand SE & Co. KG Alexander Wiegand-Straße Address 63911 Klingenberg, Germany - Internet address: www.wika.de / www.wika.com - Relevant data sheet: CT 25.12... -
Page 5: Ce Emission Notice
General Information 1.2.2 CE Emission Notice This equipment is of the emission class B, intended for operation in industrial, residential or commercial environments. Software License Agreement This product contains intellectual property, i.e. software programs, that are licensed for use by the end user/customer (hereinafter “end user”). -
Page 6: Safety
Safety 2. Safety Explanation of Symbols DANGER! ... indicates a directly dangerous situation resulting in serious injury or death, if not avoided. WARNING! ... indicates a potentially dangerous situation that can result in serious injury or death, if not avoided. CAUTION! ... -
Page 7: Product Warnings
Safety Skilled personnel Skilled personnel, authorized by the operator, are understood to be personnel who, based on their technical training, knowledge of measurement and control technology and on their experience and knowledge of country-specific regulations, current standards and directives, are capable of carrying out the work described and independently recognizing potential hazards. Operating personnel The personnel trained by the operator are understood to be personnel who, based on their education, knowledge and experience, are capable of carrying out the work described and independently recognizing potential hazards. -
Page 8: Personal Protective Equipment
Safety Personal Protective Equipment The personal protective equipment is designed to protect the skilled personnel from hazards that could impair their safety or health during work. When carrying out the various tasks on and with the instrument, the skilled personnel must wear personal protective equipment. - Page 9 Safety inside the 9476 chassis. WARNING! Any maintenance or troubleshooting should be performed by technicians knowledgeable in pneumatic pressure instrumentation and AC powered electronic equipment. WARNING! The unit weighs approximately 40 lbs. and is intended as a ‘two person lift.’ HOT! Some moving mechanical devices contained within the chassis (specifically solenoid valves) can build up excessive heat during continuous operation.
-
Page 10: Operation
Initial setup 3. Operation Operation The rear panel AC input module has a master power switch. Operation of the vacuum channel, pressure channel or both channels can be initiated by applying power using the power switch/breakers on the front panel. The unit requires 85 – 264 VAC, 47 – 63 Hz. No internal regulation of the pressure or vacuum is provided in the unit. -
Page 11: Configurations
Installation 4. Configurations Single compressor: 83-C ■ Single vacuum: 83-V ■ Dual compressor: 83-CC (2 independent compressor channels) ■ Dual compressor: 83-2C (single channel, parallel pumps for increased flow) ■ Dual vacuum: 83-VV (independent channels) ■ Dual vacuum: 83-2V (single channel, parallel pumps for increased flow) ■... -
Page 12: Calibration And Maintenance
Communication configuration 5. Calibration and Maintenance For contact details, please see Chapter 1 “General information” or the back page of the operating instructions. Calibration Calibration of the pressure equipment should be done periodically. Mensor Digital Pressure Transducers used in the instrument have a recommended calibration interval of 365 days. -
Page 13: Calibration Services By Mensor Or Wika Worldwide
Calibration Services by Mensor or WIKA worldwide Mensor and WIKA worldwide have extensive experience and knowledge of Mensor products. Calibration of the transmitters can be performed at the addresses below or by competent internal or external labs using the procedures in this section. -
Page 14: Specifications
Specifications 6. Specifications General Specifications Power: 85 - 264 VAC, 47 - 63 Hz 0.5 Amps (1.2 start-up) with dual pumps Main power input and switch on rear panel. Independent pump power switches on front panel. Porting: ¼” male tube fitting standard (additional options available) Pressure: Approximately 40 psi per compressor channel Approximately 29 inHg per vacuum channel... -
Page 15: Maintenance
Maintenace 7. Maintenance General Maintenance Rear panel fan grills should be periodically cleared of any dust/debris build up. Frequency will depend on operating environment. If the unit is to be taken out of service for an extended period of time, the Shutdown Procedure should be followed. Under normal conditions, the pump should operate in excess of 4000 hours when unit is kept within the recommended temperature operating range. - Page 16 WIKA subsidiaries worldwide can be found online at www.wika.com. Mensor LP Imported to Europe by: 201 Barnes Drive WIKA Alexander Wiegand SE & Co. KG San Marcos, TX 78666 • USA Alexander-Wiegand-Straße 30 Tel. (+1) 512 3964200-15 63911 Klingenberg • Germany Fax (+1) 512 3961820 Tel.
