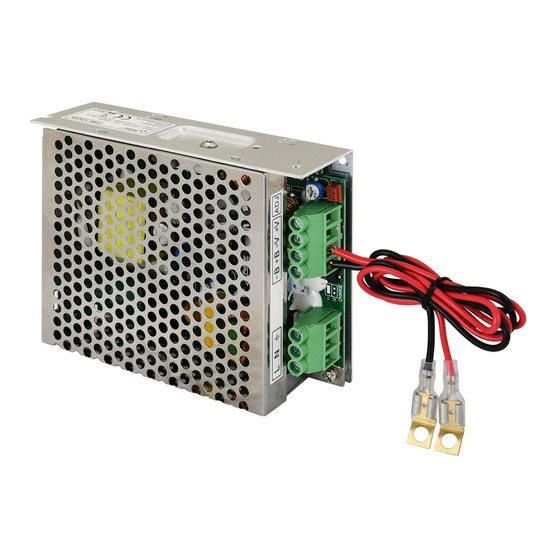

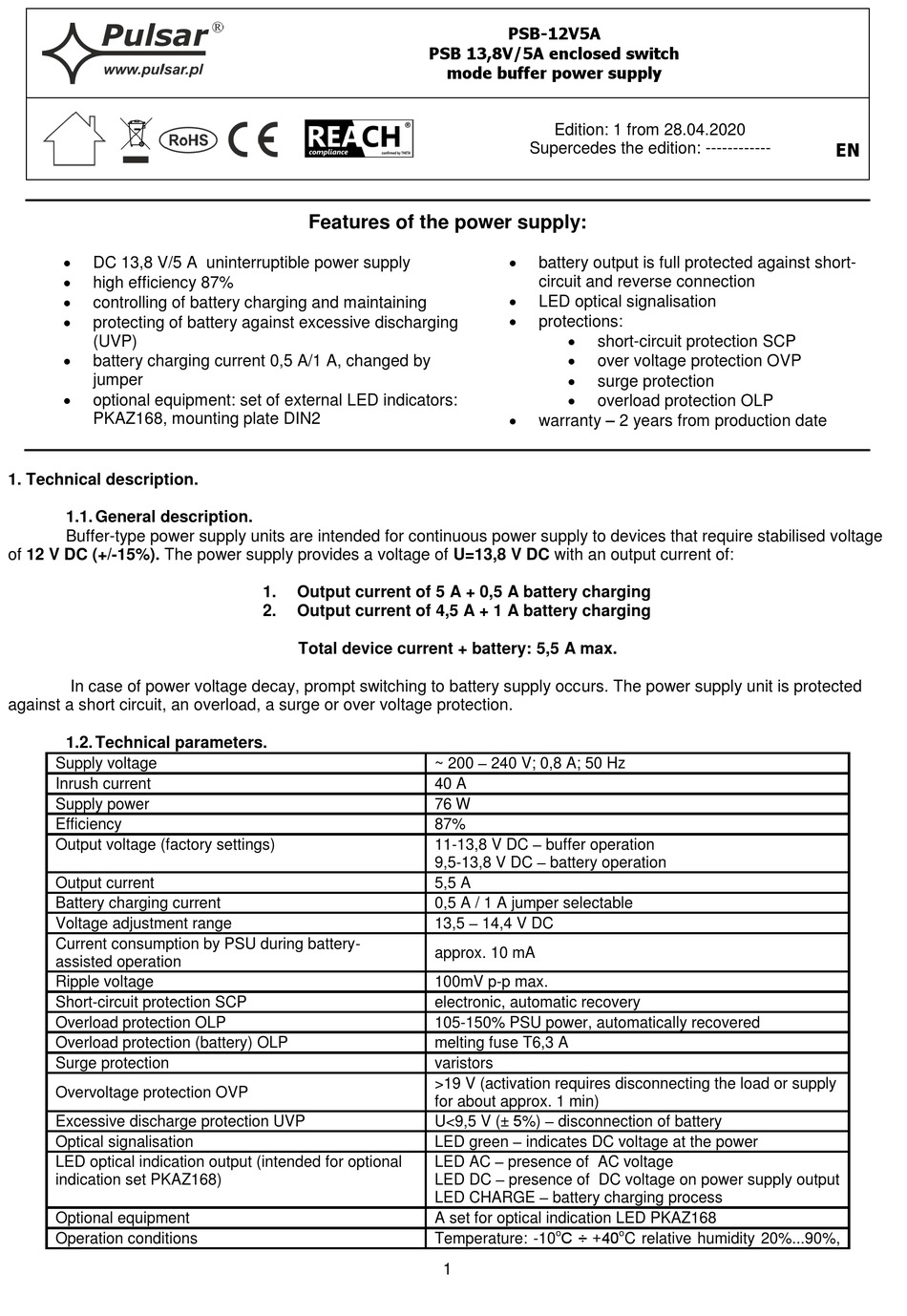

Pulsar PSB-12V5A Quick Start Manual


DC 13,8 V/5 A uninterruptible power supply

high efficiency 87%

controlling of battery charging and maintaining

protecting of battery against excessive discharging
(UVP)

battery charging current 0,5 A/1 A, changed by
jumper

optional equipment: set of external LED indicators:
PKAZ168, mounting plate DIN2
1. Technical description.
1.1. General description.
Buffer-type power supply units are intended for continuous power supply to devices that require stabilised voltage
of 12 V DC (+/-15%). The power supply provides a voltage of U=13,8 V DC with an output current of:
In case of power voltage decay, prompt switching to battery supply occurs. The power supply unit is protected
against a short circuit, an overload, a surge or over voltage protection.
1.2. Technical parameters.
Supply voltage
Inrush current
Supply power
Efficiency
Output voltage (factory settings)
Output current
Battery charging current
Voltage adjustment range
Current consumption by PSU during battery-
assisted operation
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Overload protection (battery) OLP
Surge protection
Overvoltage protection OVP
Excessive discharge protection UVP
Optical signalisation
LED optical indication output (intended for optional
indication set PKAZ168)
Optional equipment
Operation conditions
PSB 13,8V/5A enclosed switch
Features of the power supply:
1. Output current of 5 A + 0,5 A battery charging
2. Output current of 4,5 A + 1 A battery charging
Total device current + battery: 5,5 A max.
PSB-12V5A
mode buffer power supply
Edition: 1 from 28.04.2020
Supercedes the edition: ------------

battery output is full protected against short-
circuit and reverse connection

LED optical signalisation

protections:

short-circuit protection SCP

over voltage protection OVP

surge protection

overload protection OLP

warranty – 2 years from production date
~ 200 – 240 V; 0,8 A; 50 Hz
40 A
76 W
87%
11-13,8 V DC – buffer operation
9,5-13,8 V DC – battery operation
5,5 A
0,5 A / 1 A jumper selectable
13,5 – 14,4 V DC
approx. 10 mA
100mV p-p max.
electronic, automatic recovery
105-150% PSU power, automatically recovered
melting fuse T6,3 A
varistors
>19 V (activation requires disconnecting the load or supply
for about approx. 1 min)
U<9,5 V (± 5%) – disconnection of battery
LED green – indicates DC voltage at the power
LED AC – presence of AC voltage
LED DC – presence of DC voltage on power supply output
LED CHARGE – battery charging process
A set for optical indication LED PKAZ168
o
C ÷ +40
Temperature: -10
1
o
C relative humidity 20%...90%,
EN
