Summary of Contents for Scotsman Prodigy ELITE MC222 ECC

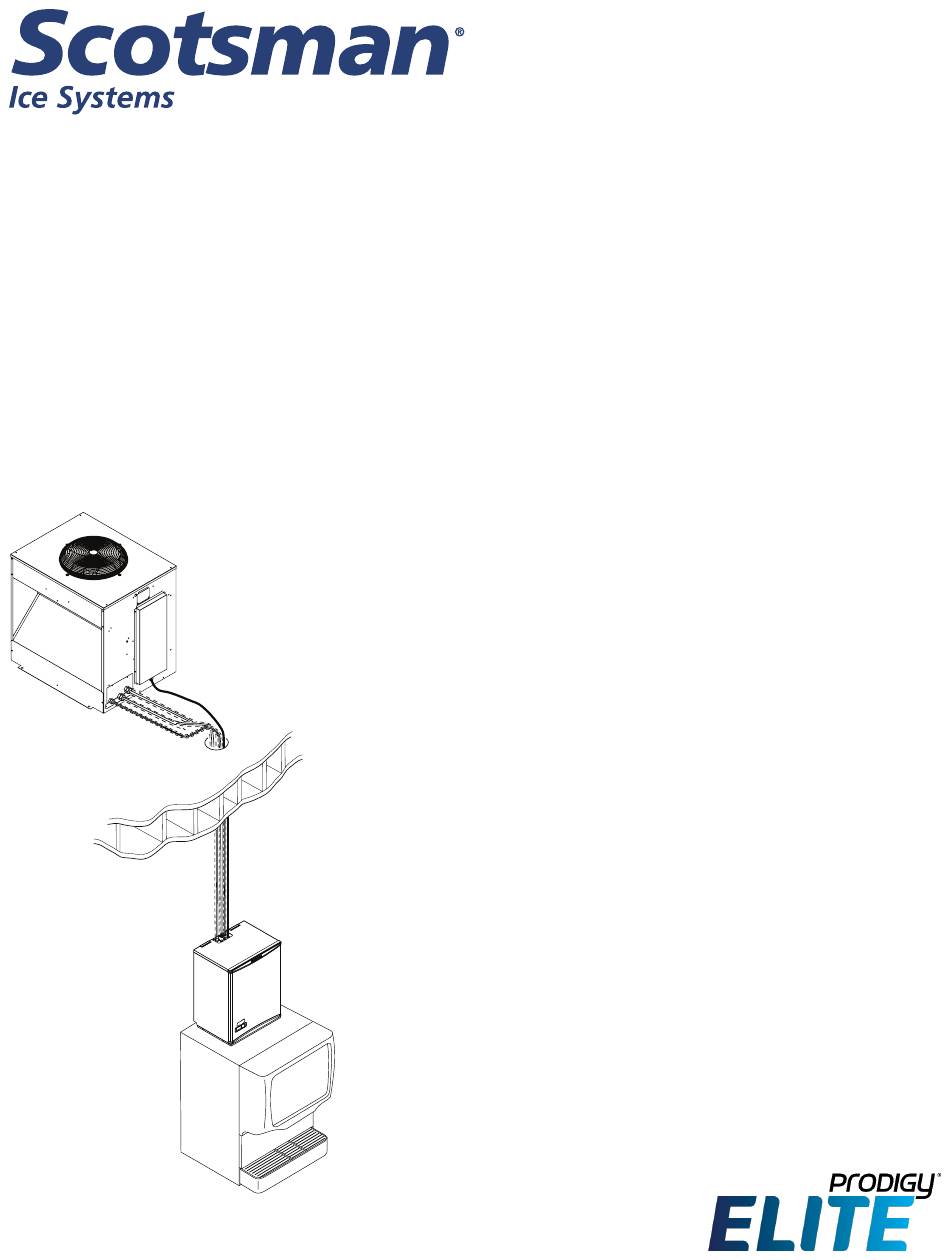

- Page 1 Installation and User’s Manual for Remote Low Side Modular Cube Prodigy ELITE® A Series Model MC222 with ECC Condensing Unit...
-
Page 2: Table Of Contents
The Maintenance section contains the In addition, the Scotsman ICELINQ® app allows users instructions and schedules for the sanitation and to connect to the machine via Bluetooth® to monitor, cleaning of the machine. -
Page 3: Configuration
Scotsman. Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and design are subject to change without notice. -
Page 4: Specifications And Location Information
MC222 and Condensing Unit Remote Low Side User Manual Specifications and Location Information Model Electrical Minimum Maximum System Charge, Cabinet Size* Unit volts/Hz/phase Circuit Fuse Size oz of R-404A w” x d” x h” Weight (lb) Ampacity MC222SL-1E 115/60/1 1.13 shipped w/none 22 x 16.5 x 29 ~100... -
Page 5: Cabinet Drawings, Ice Making Head
MC222 and Condensing Unit Remote Low Side User Manual Cabinet Drawings, Ice Making Head June 2022 Page 5... -
Page 6: Cabinet Drawings, Condensing Unit
MC222 and Condensing Unit Remote Low Side User Manual Cabinet Drawings, Condensing Unit TOP VIEW 992.81 39.09 814.22 32.06 SIDE VIEW LINE SET AND ELECTRICAL ATTACHMENT SIDE 750.06 29.53 32.05 330.86 1.26 13.03 FRONT VIEW TYP. 887.73 34.95 .88" ELECTRICAL INLET 3/4"... -
Page 7: Pre-Installation Details
• Scotsman ID150: KBT40 There are two ways water can contain impurities: • Scotsman ID200 or ID250: KBT41 in suspension or in solution. Suspended solids can be filtered out of the water. In solution or dissolved Bin Adapter Kits: solids must be diluted or treated. Water filters are •... -
Page 8: Create The System
The remote tubing connections are at the top of the machine, and connections should not be made until In 2013 Scotsman made a change to the Eclipse the machine is nearly in its final installed position. tubing kits: The 115/60 Hz ice making section is cord connected •... -
Page 9: Completed System Example
MC222 and Condensing Unit Remote Low Side User Manual Completed System Example June 2022 Page 9... -
Page 10: Place Remote System
MC222 and Condensing Unit Remote Low Side User Manual Place Remote System Roof preparation Roof Pipe Curb or Pitch Pocket: Most installations of this system will place the To avoid potential kinking of the refrigeration tubing, condensing unit on the roof of a building. The roof avoid small, tight radius types of covers on pitch must be physically able to accept the load of the pockets. - Page 11 MC222 and Condensing Unit Remote Low Side User Manual Lower Light and Switch Panel This user accessible panel provides important operational information and duplicates the lights and switches on the controller. It also allows access to the On and Off buttons that operate the ice machine. Sometimes access to the switches should be limited to prevent unauthorized operation.
-
Page 12: Place Ice Making Head
NOT have gasket tape install tape such as supply and a gravity drain. Scotsman part number 19-0503-04. The adapter to Determine how the drain will be connected to the ice ice head base MUST be sealed with gasket tape or making section. -
Page 13: Drain Connections
MC222 and Condensing Unit Remote Low Side User Manual Drain Connections Right Draining: Left Draining: Rotate elbow to the other direction. 1. Connect ¾” PVC to the female PVC fitting. Connect ¾” PVC to the PVC fitting. If copper is required by code, remove the PVC Back Draining: Rotate elbow to face the back or connector and install a ¾”... -
Page 14: Water Supply
MC222 and Condensing Unit Remote Low Side User Manual Water Supply: A 3/8" flare nut on tubing is located at the top panel, near the refrigeration tubing. Inside the hardware bag, inside the cabinet, a 3/8" inch double male flare adapter (flare union) is supplied. -
Page 15: Electrical
MC222 and Condensing Unit Remote Low Side User Manual Electrical: Condensing Unit Head Route interconnecting control wire through proper Plug head’s power cord into a nearby 115 volt hole end of condensing unit and plug into the electrical outlet. connection on the control box. Route power conduit (liquid tight) and wires to the junction box of the ECC unit. -
Page 16: Connect Refrigeration
MC222 and Condensing Unit Remote Low Side User Manual Connect Refrigeration At Head Requires brazing, steps must be performed by an EPA certified type II or higher technician. 1. With nitrogen flowing from condensing unit, braze At Head: the liquid, vapor and suction line connections. 1. -
Page 17: Complete The Installation
MC222 and Condensing Unit Remote Low Side User Manual Complete the Installation After the utilities and refrigeration connections have Note: The refrigerant lines above the machine must been made, secure the unit to the dispenser or bin be able to move freely while the machine is being top. -
Page 18: Reference For Start Up: Controller Operation
Compressor - on when the compressor contactor • Displays status and diagnostic codes is energized Scan QR code to download the Scotsman ICELINQ™ App: Push Buttons • Ready to Harvest - on when the ice thickness Connect to this machine via Bluetooth to access additional machine operations, •... -
Page 19: Initial Start Up
9. Fill out and mail the warranty registration form or be noticeable until the water begins to cool and frost register it on line at www.scotsman-ice.com. forms on the evaporator tubing. 6. Go to the condensing unit and confirm that the compressor and fan motor are operating. -
Page 20: Ice Thickness And Water Purge Adjustment
MC222 and Condensing Unit Remote Low Side User Manual Ice Thickness and Water Purge Adjustment Bridge Thickness - For the Service Tech Only 1/8 to 3/16” 1. Push and hold Off till the machine stops. Bridge 2. Remove evaporator cover. 3. -
Page 21: Adjustable Ice Level Control
MC222 and Condensing Unit Remote Low Side User Manual Adjustable Ice Level Control There is an adjustment post and an additional indicator light to the right of the four indicator lights. The cuber drops ice in large sections. That ice will The ultrasonic ice level control allows the user to break up into random parts as it falls into the bin, but control the point that the ice machine will stop making... -
Page 22: Cleaning, Sanitation And Maintenance
Preparing to Clean: Clean internal parts: 1. Remove the front panel. 6. Mix a cleaning solution of 6oz of Scotsman Clear 1 scale remover with 9 cups (72oz) of 105-115° F 2. Remove the evaporator cover. potable water. Scale Removal: 7. - Page 23 18. Push and release the “ON” button to resume ice making. Want more detail? Scan QR Code to download the Scotsman IcelinQ™ App to connect to this machine via Bluetooth and access the self-guided cleaning process. Exterior Panels Fingerprints, dust and grease will require cleaning with a good quality stainless steel cleaner.
-
Page 24: Operational Characteristics 800 Lb System
MC222 and Condensing Unit Remote Low Side User Manual Operational Characteristics 800 lb system Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F. -20/50/40 70/70/50 90/90/70 120/110/100 Freeze 9 to 10 minutes 10 to 12 minutes 13 to 15 minutes 19 to 21 minutes Harvest 2 to 3 minutes... - Page 25 MC222 and Condensing Unit Remote Low Side User Manual Below information applies to both size systems: Headmaster maintains a minimum discharge pressure during freeze of 217 PSIG + 25, -15 PSIG. CPR Valve Setting: 55 - 60 PSIG. Note: CPR allows a maximum low side pressure at the compressor. Maximum only occurs during harvest. Refrigerant Charge •...
-
Page 26: What To Do Before Calling For Service
If so, remove the ice and the machine All Prodigy ELITE® models are Bluetooth® enabled should start in a few minutes. and are compatible with the Scotsman ICELINQ® app, available on both the Apple App Store and To Manually Reset the machine. - Page 27 SCOTSMAN ICE SYSTEMS 101 Corporate Woods Parkway Vernon Hills, IL 60061 www.scotsman-ice.com 800-726-8762 17-3737-05...
