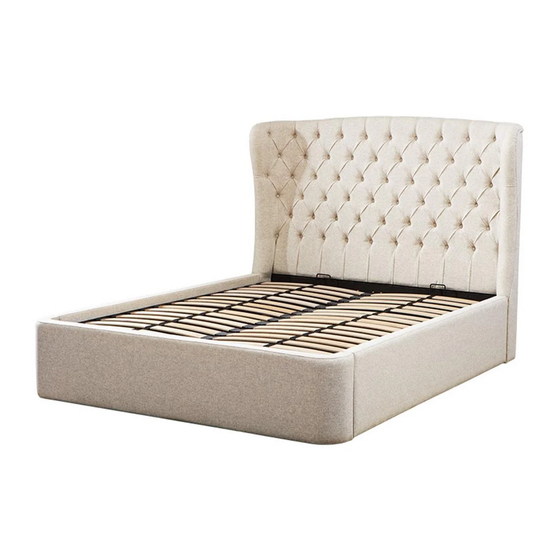

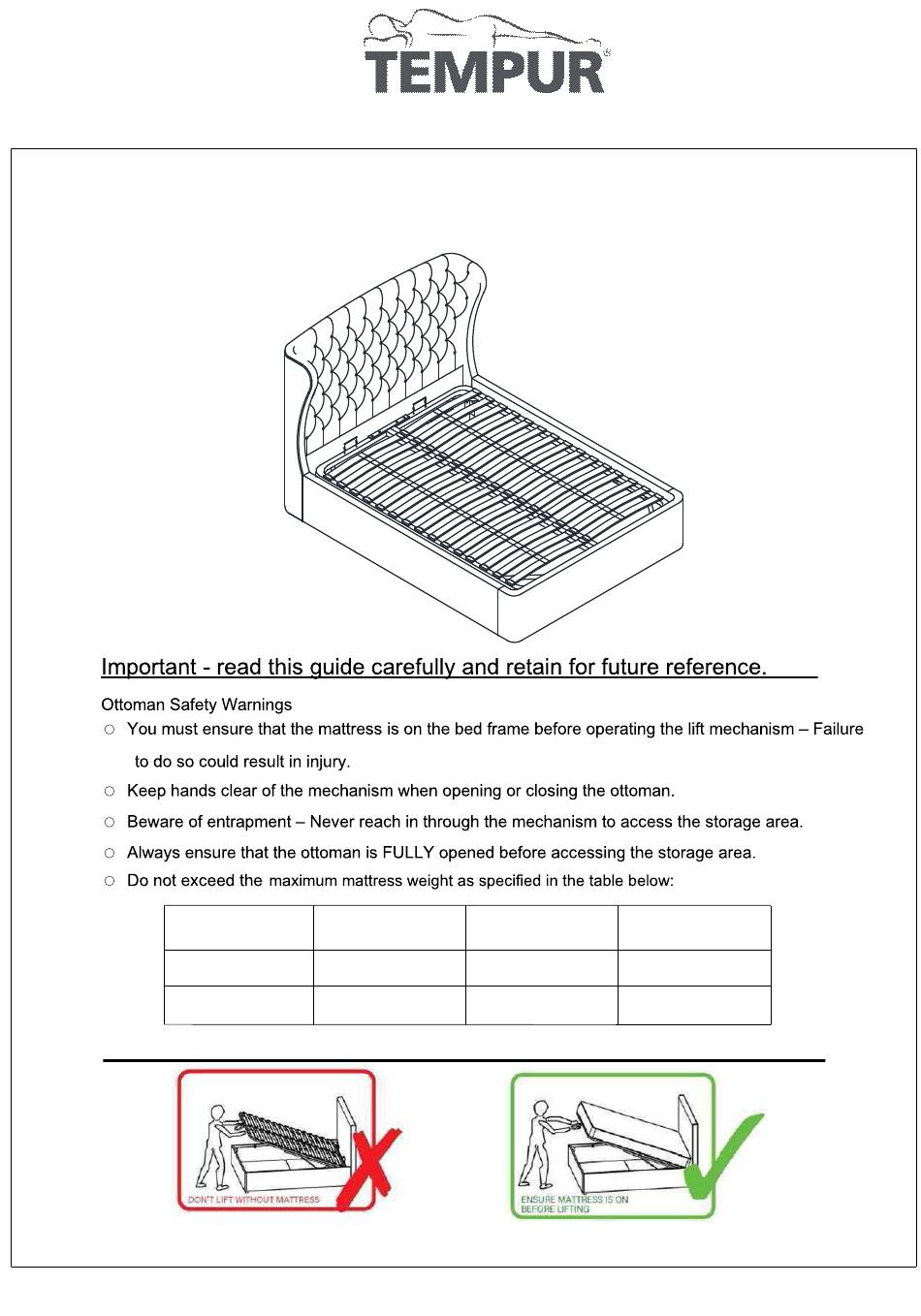

HOLCOT OTTOMAN BED - Assembly Instructions
Product size:
King:
133cm H x 168cm W x 222cm D
Superking: 133cm H x 198cm W x 222cm
BED SIZE
KING
SUPERKING
CHECK ALL FIXING PERIODICALLY TO ENSURE THAT THEY HAVEN'T MOVED OR LOOSENED
Piston
Strength (N/M)
1100
1200
Please retain these assembly instructions for future use
PAGE 1
MAX Mattress
Min Mattress
Weight (kg)
Weight (kg)
30
35
74
88

Advertisement

loading
Need help?

Need help?

Do you have a question about the HOLCOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TEMPUR HOLCOT

  • Page 1 HOLCOT OTTOMAN BED - Assembly Instructions Product size: King: 133cm H x 168cm W x 222cm D Superking: 133cm H x 198cm W x 222cm MAX Mattress Piston Min Mattress BED SIZE Weight (kg) Strength (N/M) Weight (kg) 1100 KING...
  • Page 2 HOLCOT OTTOMAN BED Components supplied (not actual size) Part B Part A Part C Part D Part E 1 x Footboard 1 x Headboard 1 x siderail Left 1 x siderail Right 1 x slat frame Right Part K Part G...
  • Page 3 Holcot ottoman Bed STEP 1 Note: Leave 15 mm protruding as in the diagram Attach the side rails to the headboard and footboard using Allen key (k) and bolt(a) washer(h) spring washer(o) MAKE CERTAIN THE BED IS SQUARED UP .AS SHOWN ON THE RIGHT.
  • Page 4 HOLCOT OTTOMAN BED STEP 3 With each person standing either side of the bed,slide the bottom panels down between the hinges,Slide the panel all the way to the foot end&head end STEP 4 Attach the Base using bolt (b) ,Washer (h),...
  • Page 5 HOLCOT OTTOMAN BED STEP 5 STEP 6 PAGE 5...
  • Page 6 HOLCOT OTTOMAN BED STEP 7 STEP 8 Attach the Base using bolt (c) ,Washer (i) ,Nut (f) and Allen key (j),(l) PAGE 6...
  • Page 7 HOLCOT OTTOMAN BED ○ Always engage the support bar when accessing the storage area ○ Beware of entrapment - Never reach in through the mechanism to access the storage area. ○ When engaging the ottoman support bar, ensure the slat frame/ platform base is raised to the maximum opening extension point i.e.
  • Page 8 care instruction ※Avoid exposing the furniture to excessive heat or direct sunlight as this can cause deterioration of the colour. ※To clean your items, please lightly wipe with a slightly dampened cloth. ※Never allow any kind of liquid to remain on your furniture. Absorption can cause finishes to stain  ...
