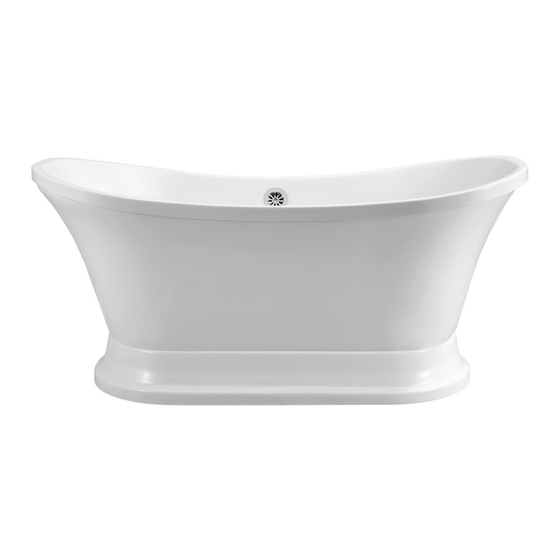

Pedestal bathtub
Hide thumbs Also See for N-120-60FSWH-DM:

Advertisement

Quick Links

PEDESTAL BATHTUB SERIES
OWNER'S MANUAL &
INSTALLATION GUIDE
READ ENTIRE INSTALLATION GUIDE
PRIOR TO INSTALLING THE BATHTUB
THIS BATHTUB SHOULD ONLY BE
INSTALLED BY A CERTIFIED PLUMBER
CAUTION!
TWO PEOPLE ARE REQUIRED
TO LIFT THE BATHTUB
QUESTIONS ON PRODUCT, INSTALLATION, RETURNS? PLEASE CONTACT
310-935-0028
support@streamlinebath.com
streamlinebath.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-120-60FSWH-DM and is the answer not in the manual?

Questions and answers

Summary of Contents for Streamline N-120-60FSWH-DM

  • Page 1 PEDESTAL BATHTUB SERIES OWNER'S MANUAL & INSTALLATION GUIDE READ ENTIRE INSTALLATION GUIDE PRIOR TO INSTALLING THE BATHTUB THIS BATHTUB SHOULD ONLY BE INSTALLED BY A CERTIFIED PLUMBER CAUTION! TWO PEOPLE ARE REQUIRED TO LIFT THE BATHTUB QUESTIONS ON PRODUCT, INSTALLATION, RETURNS? PLEASE CONTACT 310-935-0028 support@streamlinebath.com streamlinebath.com...
  • Page 2: Prior To Installing

    Building and plumbing codes may vary state-to-state. Streamline shall not be held liable for any and all incidental damages or flood caused due to use of this product. Streamline shall not be held liable for any and all fees stemming from cost of installation, re-installation, removal, subsequent damage, or transportation in a case of a product defect.
  • Page 3 DRAIN MODEL COMPATIBILITY FREESTANDING BATHTUB N-120-60FSWH-DM N-121-60FSWH-DM N-DWF-CH N-DWF-GLD N-200-60FSWH-FM N-180-60FSWH-DM N-201-68FSWH-FM N-960-60FSPRWH-DM N-1140-60FSWH-FM N-961-68FSBL-DM N-1141-68FSBL-FM...
  • Page 4 DRAIN DIAGRAMS ITEM Cover Cover gasket Cartridge Strainer Waste upper gasket Waste lower gasket Connector Coupling nut Washer Pipe Model: N-DWF-GLD Overflow body Model: N-DWF-CH Tapered rubber gasket Overflow upper gasket Overflow plate Pin Bolt Taic piece Flange...
  • Page 5 BATHTUB INSTALLATION Ensure that the floor at the installation site has sufficient floor support and is level. Waterproofing the floor is highly recommended. Determine the location of the drainpipe on the floor by taking measurements of the drain and waste location underneath the unit.
  • Page 6 Gently place the bathtub in the upside-down position on a tarp or cardboard sheet in order to avoid contact with any rough surface. Loosen the nuts & washers from the metal frame. Adjust the leveling feet to align with the bathtub’ s bottom as well as the floor and then tighten the washer and nuts.
  • Page 7 Take the strainer, place silicone sealant around it, and then place it into the drain hole ensuring a tight connection with the drain ell & gasket. Use silicone sealant. DO NOT use plumbers putty to seal. Silicone Sealant Strainer Gasket Drain Ell Insert the tailpiece into the trap inlet using the O-ring, coupling nut, &...
  • Page 8 11 . Attach the tapered rubber gasket to the overflow ell. Align the overflow ell with the overflow hole & secure the drain to the tub with overflow plate and screw provided. Tapered Rubber Gasket Over ow Plate 12 . Make sure a watertight seal exists on all bath drain connections.
  • Page 9 PEDESTAL INSTALLATION AND REPLACEMENT All parts of the pedestal have already been installed by the manufacturer prior to shipment. Below instructions are demonstrating how to replace them if repair is needed. ITEM Qty. Self tapping screw Adjustable leg Bolt Metal plate Bathtub is pictured upside down...
  • Page 10 SINGLE HANDLE FREESTANDING TUB&SHOWER FAUCET H-140-TFMSHCH...
  • Page 11: Recommended Tools

    RECOMMENDED TOOLS Screwdriver Channel Locks Goggles Hammer WARNING: Please keep the tool for future use! Adjustable Wrench Teflon tape Allen key ATTENTION: for easy installation, you will need: 1. To read all the installation instruction completely before beginning. 2. To read all the warning, attention and maitenance information.
  • Page 12: Faucet Installation

    FAUCET INSTALLATION Drill one hole of 130mmx130mm max and drill 3 holes with 80mm diameter as shown. Align the base ① with the holes exactly as shown. HOT WATER COLD WATER MAX 130mm Insert the expansion anchors ① into the holes on the base ② with a hammer, tighten with adjustable wrench.
  • Page 13 Tighten the shower holder ① into faucet body ④ with a screw ② and Allen key ③. INSTALLATION LOCATION Slide the flange ④ into the welded rack ③ as shown, and connect the flexible hose ② to the faucet body ①, Then assemble the welded rack ③ to the faucet body ① and fix it with screws ⑤. Connect flexible hose ①...
  • Page 14 Insert 3 screws ② into holes on the plate ④, Tighten with Allen key ③.Cover it with flange ①. Assemble the shower hose ③ to hand shower ② and connector under the shower holder ① as shown. Then finish the installation of the faucet.
  • Page 15: Checking And Testing

    CHECKING AND TESTING Remove the aerator ② with aerator wrench, take out the o-ring ① too.Turn the faucet handle all the way on, turn on hot and cold water supply and flush water lines for one minute. Reinstall aerator with aerator wrench. Check all connections at arrows for leaks, re-tighten it if necessary.
  • Page 16: Maintenance

    MAINTENANCE If there is splash or low flow rate,please remove the aerator with the wrench and clean the debris. If faucet leaks from the handle or drips from spout, please replace cartridge following the following steps: Remove the handle screw with Allen key ③, take out the handle ①, then remove the trim cap ④. Unscrew the cartridge locknut ① with Adjustable Wrench, then take out the old cartridge ②.
  • Page 17: Cleaning And Care

    CLEANING AND CARE Daily cleaning and care are required in order to keep the product shining and properly working. Clean it with water and dry it with soft cloth. Clean the product with gentle liquid or glass cleaner. Don't use acid cleaner. Don't clean with abrasive material, abrasive paper or knife.
