Summary of Contents for DiamondBoxx SUB8.2

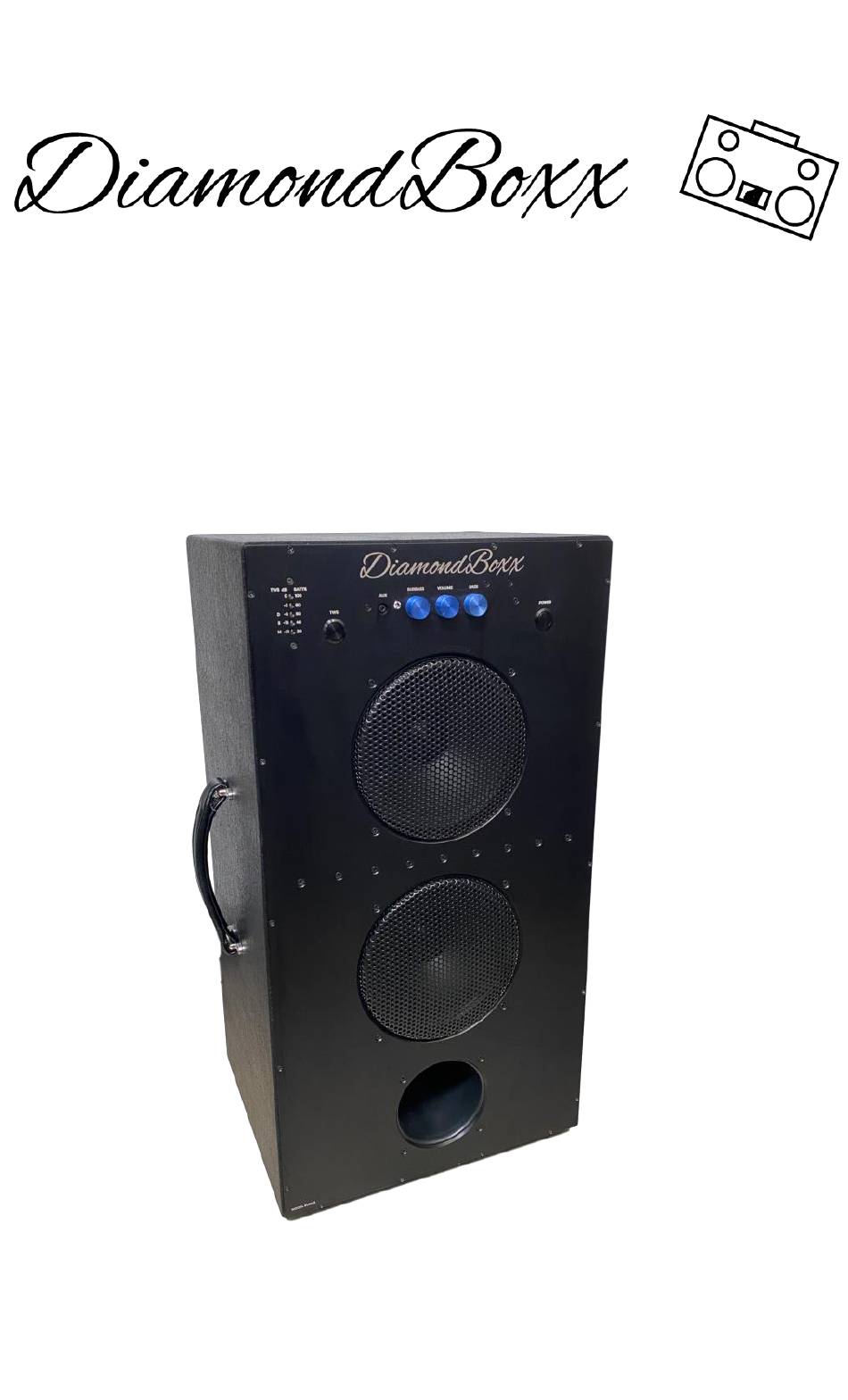

- Page 1 SUB8.2...
- Page 3 4 channel amplifier with user adjustable active crossovers for the best sound possible in the lightest package with the longest battery life. Your DiamondBoxx was hand-built and when cared for properly should provide you with years of listening pleasure. Happy Listening!
-
Page 4: The Power Button
SUB8.2 will play before starting to filter it out. The range is from 50Hz to 150Hz. If placed at 50Hz the SUB8.2 will play frequencies from 20Hz – 50Hz. If set at 150Hz it will play frequencies from 20Hz –... - Page 5 Charging is accomplished by plugging in the supplied charger to the rear panel. DiamondBoxx CAN BE played while charging. If the LED on the charger is RED it is Charging. When it turns GREEN the DiamondBoxx is fully charged. (If playing while charging, the charger LED might not ever turn green or might blink red to the beat of the music, this is normal.
- Page 6 Connect the Bluetooth device to it Power on the DiamondBoxx that will be SECONDARY Press and hold the TWS button on MAIN DiamondBoxx until the LED next to the letter “M” blinks rapidly, then release button. Press and hold the TWS button on the Secondary DiamondBoxx until the LED next to the letter “S”...
-
Page 7: The Rear Panel
This jack is useful to remove the bass from the speaker connected to it and let the SUB8.2 handle the low notes. Most smaller speaker systems will be able to play louder when they don’t have to try to reproduce the low notes, leave those for the SUB8.2... - Page 8 Bluetooth services on your wireless device. Then turn back on the Bluetooth services on your wireless device, and the power ON the DiamondBoxx SUB8.2. It should immediately pop up on the list. If this doesn’t work delete any other DiamondBoxx that might be on your list and repeat above procedure.
- Page 9 As they are all hand built and rolled it is normal for there to be slight inconsistencies in the finish. Consider them like beauty marks, specific to your DiamondBoxx. To clean just wipe down with a water dampened cloth.
-
Page 10: Included Items
Play time on full charge 6 to 30 hours Battery Life Over 1000 recharge cycles Time to fully recharge About 8 hours Included Items DiamondBoxx Model SUB8.2 Lithium Ion Battery Charger 3.5 mm stereo audio cable This manual The Fun... -
Page 11: Limited Warranty
Limited Warranty DiamondBoxx warranties this product to be free of defects in materials and workmanship for a period of two years from the original purchase date.This warranty is not transferrable and applies only to the original purchaser from an authorized DiamondBoxx dealer. Should service be necessary under this warranty... - Page 12 DiamondBoxx Model SUB8.2 Owner's Manual Rev D 2021 Camarillo, California USA...
