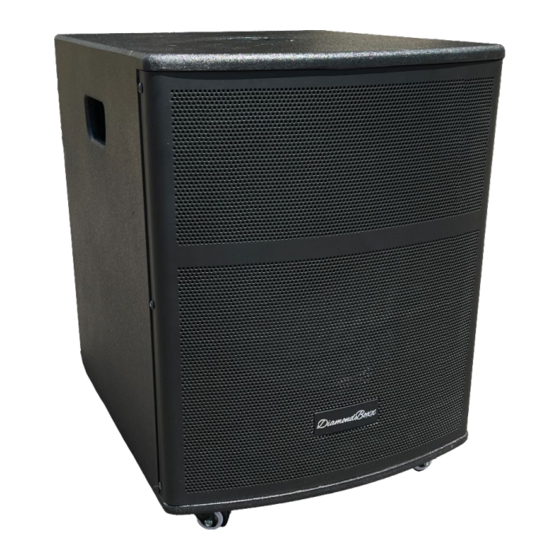

  • Page 1 PASUB15...

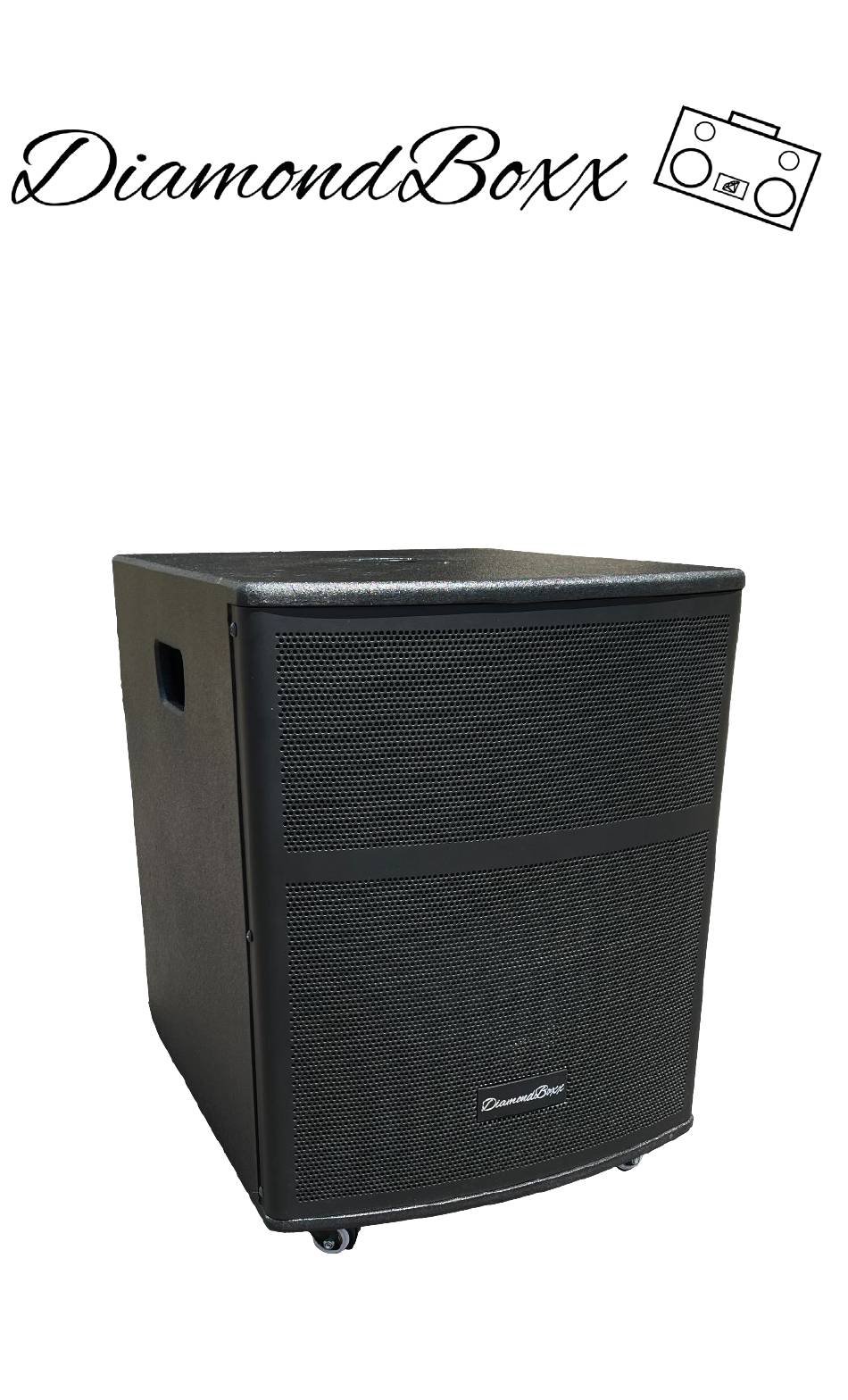

  • Page 3 We used the highest quality materials for each intended purpose, including a MDF wood enclosure and steel grille. The PASUB15 contains a pro audio 15-inch woofer along with a powerful 300 Watt RMS (600 W Max) Class D power amplifier with user adjustable active crossover for the best sound possible in the lightest package with the longest battery life.

  • Page 4: Battery Life

    The low frequency speakers on the other hand, like this PASUB15, need to be on the ground. They like boundaries to reflect the bass, the more boundaries the better. Ideally the PASUB15 would be on the floor in the corner of a room.
  • Page 6 DiamondBoxx M3: turn bass to minimum on M3, set this knob to 80Hz DiamondBoxx L, L2: set this knob to 70Hz DiamondBoxx L3: keep bass knob at center 0 on L3, set this knob to 60Hz DiamondBoxx XL, XL2: set to SPL mode, set this knob to 50-60Hz DiamondBoxx PA10: bass knob at 12 to 3 o’clock, set this knob to 80Hz...
  • Page 7 13. POWER - This is the main power switch, is does not need to be turned off to charge the battery. 14. AC INPUT - This is the receptacle for the AC mains power. The power supply in the PASUB15 can accept universal mains voltage from 100V-240V and 50-60Hz, this covers most countries electrical grids...

  • Page 8: Items Included

    DiamondBoxx. To clean just wipe down with a water dampened cloth. The top of the PASUB15 has a pole mount cup. A short pole can be mounted in this cup to fly a DiamondBoxx PA10, PA15, or other PA type speakers.

  • Page 9: Limited Warranty

    Limited Warranty DiamondBoxx warranties this product to be free of defects in materials and workmanship for a period of two years from the original purchase date. This warranty is not transferrable and applies only to the original purchaser from an authorized DiamondBoxx dealer.
  • Page 10 PASUB15 Owner’s Manual Revision 1 Spring 2021 Camarillo, CA 93012...
