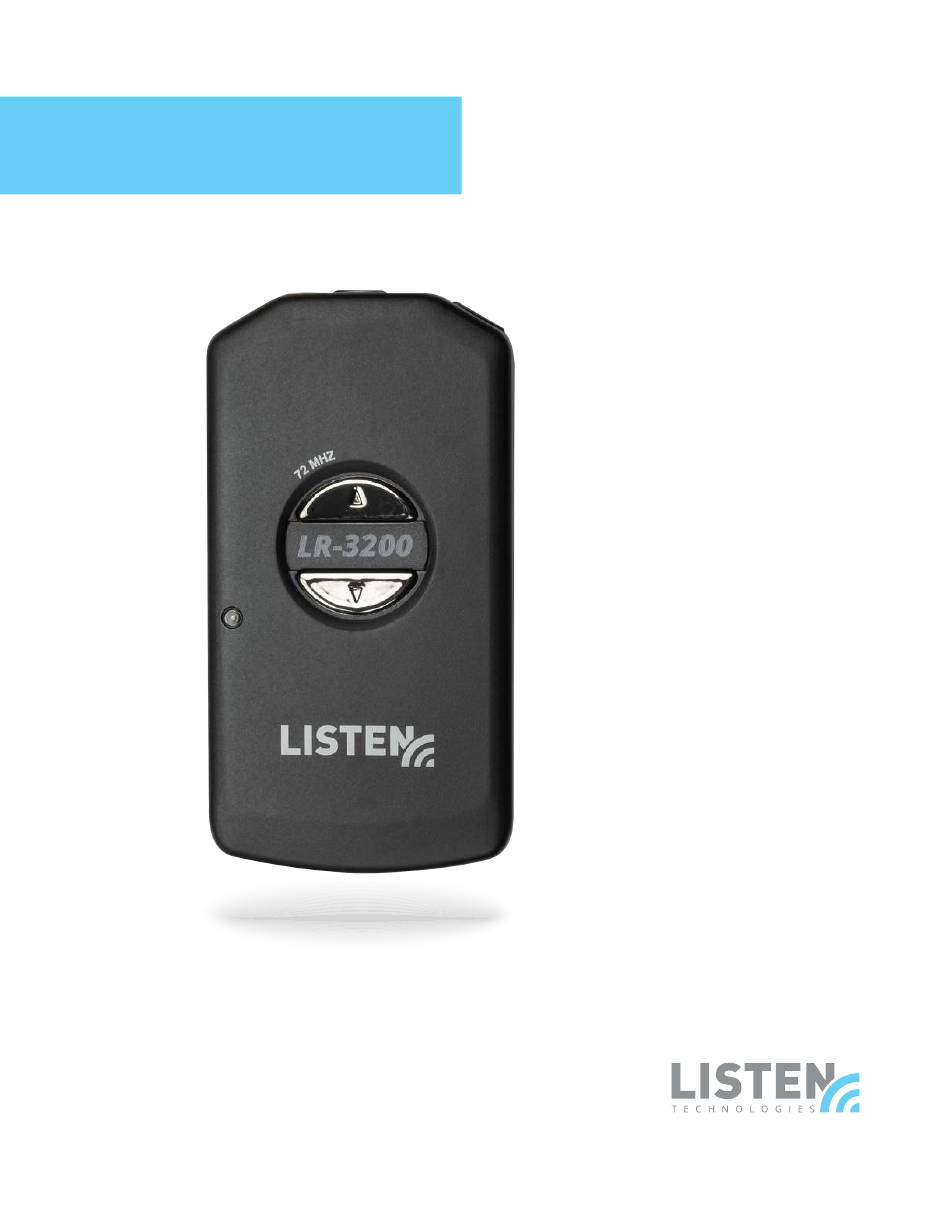

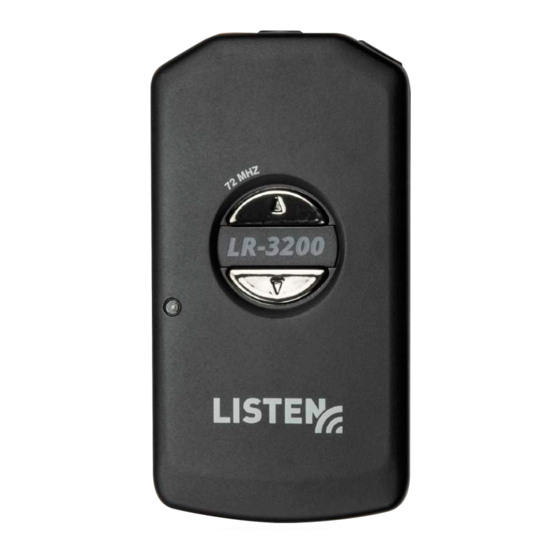

- Page 1 LR-3200 USER MANUAL Basic DSP RF Receiver (072 MHz) www.listentech.com...
- Page 2 Dear Valued Customer, Thank you for choosing Listen! We are dedicated to providing you with the highest quality products available, and take pride in delivering outstanding performance to ensure you are completely satisfied. We independently certify each of our products to the highest quality standards and back them with a limited lifetime guarantee.
-
Page 3: Table Of Contents
TABLE O F CONTENTS iDSP™ Receivers Channel Labels LR-3200 Quick Reference Auto Power Mode LR-3200 Specifications Unit ID Safety Cautions! Brightness Control Hearing Safety Unit Information Medical Device Safety Reset to Factory Defaults Recycling Firmware Update Product Recycling Instructions RF Reception Maximization Strategies Battery Recycling Instructions 72 MHz Compatibility Chart Quick Setup and Operation Instructions... - Page 4 BASIC DSP RECEIVERS ™ The LR LR-3200 is an Assistive Listening Receiver designed to be compact and simple to use. The unique design of the receiver allows them to be worn as a necklace, using the belt clip or concealed in a pocket, making this the most inconspicuous ALS receiver on the market.
-
Page 5: Lr-3200 Quick Reference
Power On/Off 3.5 mm Output Jacks Up/down Belt Clip Volume Control Battery Protective Pull Tab Micro USB Battery Door Charging Contact LR-3200 QUICK REFERENCE Power On/Off Press and hold for 1 second to turn on. Press and hold for 3 seconds to turn off. Up/Down Volume Control Press momentarily to adjust the volume up/down or press and hold to ramp the volume. -
Page 6: Lr-3200 Specifications
LR-3200 SPECIFICATIONS Product Specification: LR-3200-072 50 Hz - 15 kHz (±3 dB) / 50 Hz - 10 kHz (±3 dB) System Frequency Response SQ enabled 80 dB, SQ disabled 70 dB / System Signal to Noise Ratio <1% total harmonic distortion (THD) at 80% deviation... -
Page 7: Safety Cautions
Recycling Help Listen Technologies protect the environment! Please take the time to dispose of your equipment properly. Product Recycling Instructions Please do NOT dispose of your Listen Technologies equipment in the household trash. -
Page 8: Quick Setup And Operation Instructions
Note: upon first activation the battery will have a limited charge, we recommend the unit be charged immediately. 3. Charge Battery Fully charge the rechargeable Lithium Ion battery by connecting the unit to one of Listen Technologies charging options. LA-380 Intelligent 12-Unit Charging/Carrying Case... -
Page 9: Connect Earphone
4. Connect Earphone Using The Earphone/Neck Loop yard: Connect the Listen Intelligent ear phone/ neck loop lanyard to the two 3.5 mm output jacks on the unit. Then connect the short cable ear speaker or headphones to the 3.5mm output jack on the lanyard. The lanyard neck loop is placed over the head and worn as a necklace. -
Page 10: Turn The Unit On
Power Button: Press and hold 5. Turn the Unit On for 1 second to turn on, press and hold for 3 seconds to turn off. Press and hold the Power Button for 1 second to turn the receiver on. The LED will light solid. To turn the receiver off, press and hold the power button for 3 seconds 6. -
Page 11: Battery & Belt Clip
BATTERY & BELT CLIP Low Battery Indication When the unit detects a low battery condition it will cause the status LED to flash slowly indicating that the unit needs to be charged. When the light begins to flash the unit has approximately 3 hours of receiver use before the unit will turn off. -
Page 12: Super Quiet Mode
To manage the advanced program features on any of the iDSP™ receivers a windows based User Interface (UI) software is required. This software is available free of charge from Listen Technologies. To download the software log onto http://www.listentech. com/support/software/idsp-software-suite/ and follow the instructions. -
Page 13: Unit Information
Unit Information When a unit is connected to the configuration software the software extracts specific information from the unit and displays it for the user. This information includes the model number, frequency, Serial Number, battery level, and Firmware Version. Reset to Factory Defaults The unit can be returned to its factory default settings at any time by using the iDSP Software Suite. -
Page 14: 72 Mhz Compatibility Chart
72 MHZ COMPATIBILITY CHART: Frequency MHz Listen Phonic Ear Comtek Phonak Wiliams* Gentner Telex Drake 72.0250 (11,1) 72.0500 72.0750 (12,3) 72.1000 A, (13,4) 72.1 72.1250 (14,5) 72.1500 72.1750 (15,7) 72.2000 K, (8) 72.2 72.2250 (16,9) 72.2500 (10) 72.2750 (17,11) 72.3000 B,(18,12) 72.3 72.3250... - Page 15 72 MHZ COMPATIBILITY CHART: Frequency MHz Listen Phonic Ear Comtek Phonak Wiliams* Gentner Telex Drake 74.6250 (36,40) 74.6500 (41) 74.6750 (37, 42) 74.7000 I, (38, 43) 74.7250 (39, 44) 74.7500 (45) 74.7750 (40, 46) 75.2250 (41, 47) 75.2500 (48) 75.2750 (42, 49) 75.3000 J, (43, 50)
-
Page 16: Troubleshooting Lr-3200 Receivers
TROUBLESHOOTING LR-3200 RECEIVERS: The receiver has no power Make sure the unit has either a fully charged battery or a Listen approved wall charging transformer is connected. Make sure the Power button on the top of the unit has been pressed to turn the unit ON. If this does not work, make sure the battery is installed properly and / or install a replacement battery. -
Page 17: Compliance Notice And Fcc Statement
My battery is not charging Verify the clear plastic pull tab has been removed from the receiver battery door engaging the battery connections. Make sure the battery is installed properly and that the unit is plugged into the charging device correctly. -
Page 18: Warranty
WARRANTY Listen Technologies warrants ListenRF receivers to be free from defects in materials and workmanship under normal use and conditions for (5) five-years from the original date of purchase. All product warranties can be transferred, warranties are valid for (5) years from the original date of purchase.
