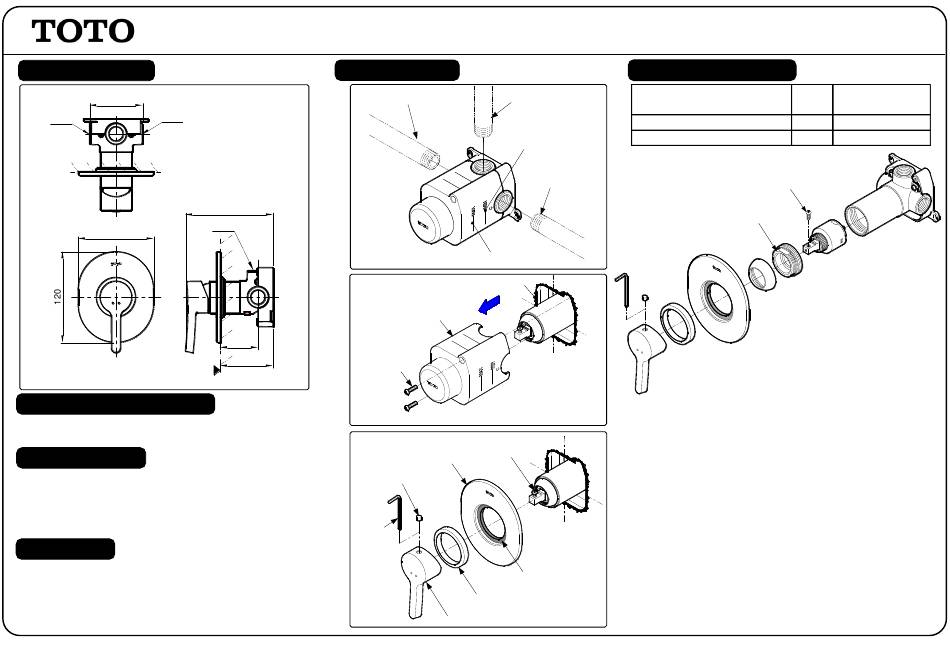

Toto PLANO TX443SPN Manual

SPECIFICATIONS
70
G½
G½
Ø100
WALL
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S060227N
"PLANO"
INSTALLATION
1.
Hot Water
Supply *
116
G½
* Pipe supplied by owner
2.
0
50
-20
0
70
-20
Bolt
* Remove the cover after the mortar has dry
3.
Cap
Hex.
Key
SINGLE LEVER SHOWER MIXER TX443SPN
To Shower Head *
Minimal
Completion wall
surface
Cold Water
Supply *
Maxima l
Completion wall
surface
Mortar
Cover *
Bolt
Flange
Packing
Ring
w/ O-Ring
Handle
TROUBLESHOOTING
CHECK
PROBLEM
POINT
1
Water leaks around the handle
Handle is loose 2
2. BOLT
1. CONNECTING NUT
SOLUTION
Tighten
Tighten
R6
