Everpure EV9347-20 Installation And Operation Manual

Selecting A Mounting locAtion
1. Give consideration to the weight of the unit when operating (filled with water). Operating weights
of High Flow CSR Systems are:
• Twin System - 45 lbs (20.2 kg)
• Triple System - 47 lbs (21.2 kg)
• Quad System - 49 lbs (22.2 kg)
• Quad Plus System - 49 lbs (21.2 kg) + separate surge/storage tank @ 60 lbs (27.2 kg)
2. The location should allow for (See figures 1-8):
• M inimum clearance of 2 ⁄
1
2
replacement.
• A dequate space for "in" and "out" water line connections. Be near a drain for flushing and near
a 110V outlet if the optional Everguard
• A dditional mounting and floor space for the separate SR-X Feeder and surge/storage tank
Plus).
operAting SpecificAtionS*
combined Model name
High Flow CSR Twin - MC
High Flow CSR Twin - MC
2
High Flow CSR Twin - XC
High Flow CSR Twin - XC 2
High Flow CSR Twin - 4CB5
High Flow CSR Twin - 7CB5
High Flow CSR Triple - MC
High Flow CSR Triple - MC
2
High Flow CSR Triple - XC
High Flow CSR Triple - XC
2
High Flow CSR Triple - 4CB5
High Flow CSR Triple - 7CB5
High Flow CSR Quad - MC
High Flow CSR Quad - MC
2
High Flow CSR Quad Plus - XC
High Flow CSR Quad Plus - XC
* For individual cartridge specifications, refer to cartridge literature.
temperature: 35-100°F (2-38°C)
pressure:
10 - 125 psi (0.7 - 8.6 bar), non-shock
For cold water use only.
inStAllAtion
1. U se the predrilled mounting holes in the manifold bracket as guides. Mark and drill anchor holes.
Mount securely. See Figures 5-8.
2. S hut off power to equipment. If system is a High Flow CSR Quad Plus (separate SR-X Feeder and
surge/storage tank ), proceed to step 3b.
†
3a. C onnect outlet ports of High Flow system to equipment served per the instructions below. Always
use NSF approved pipe dope or Teflon tape at all connections. Use a backup wrench on all fittings
while connecting to avoid stress on the system components.
• T he cross fitting before the SR-X Feeder has a threaded outlet on top. Connect a minimum 1/2"
I.D. line from this outlet to fountain beverage equipment.
• T he cross fitting has a flushing valve installed on the bottom. Connect tubing to the flushing valve
and run to drain. Note: Some municipal plumbing codes and good sanitary practices require an
air gap at the drain termination point.
Manufactured by Everpure
" under the cartridge(s) so it can be lowered for removal and
Low Pressure Alarm is used.
™
replacement
flow rate
cartridge
MC 3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
MC 3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
2
XC 3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
XC 2 3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
4CB5 3.3 gpm (12.5 lpm) 12,000 gal.(45,400 L)
7CB5 5.0 gpm (18.9 lpm) 20,000 gal.(75,700 L)
MC 5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L)
MC 5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L)
2
XC 5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L)
XC 5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L)
2
4CB5 5.0 gpm (18.9 lpm) 18,000 gal.(68,000 L)
7CB5 7.5 gpm (28.5 lpm) 30,000 gal.(113,550 L)
MC 6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L)
MC 6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L)
2
XC 6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L)
XC 6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L)
2 2
Installation and Operation Guide
(Quad
†
capacity
High Flow CSR Filter Systems

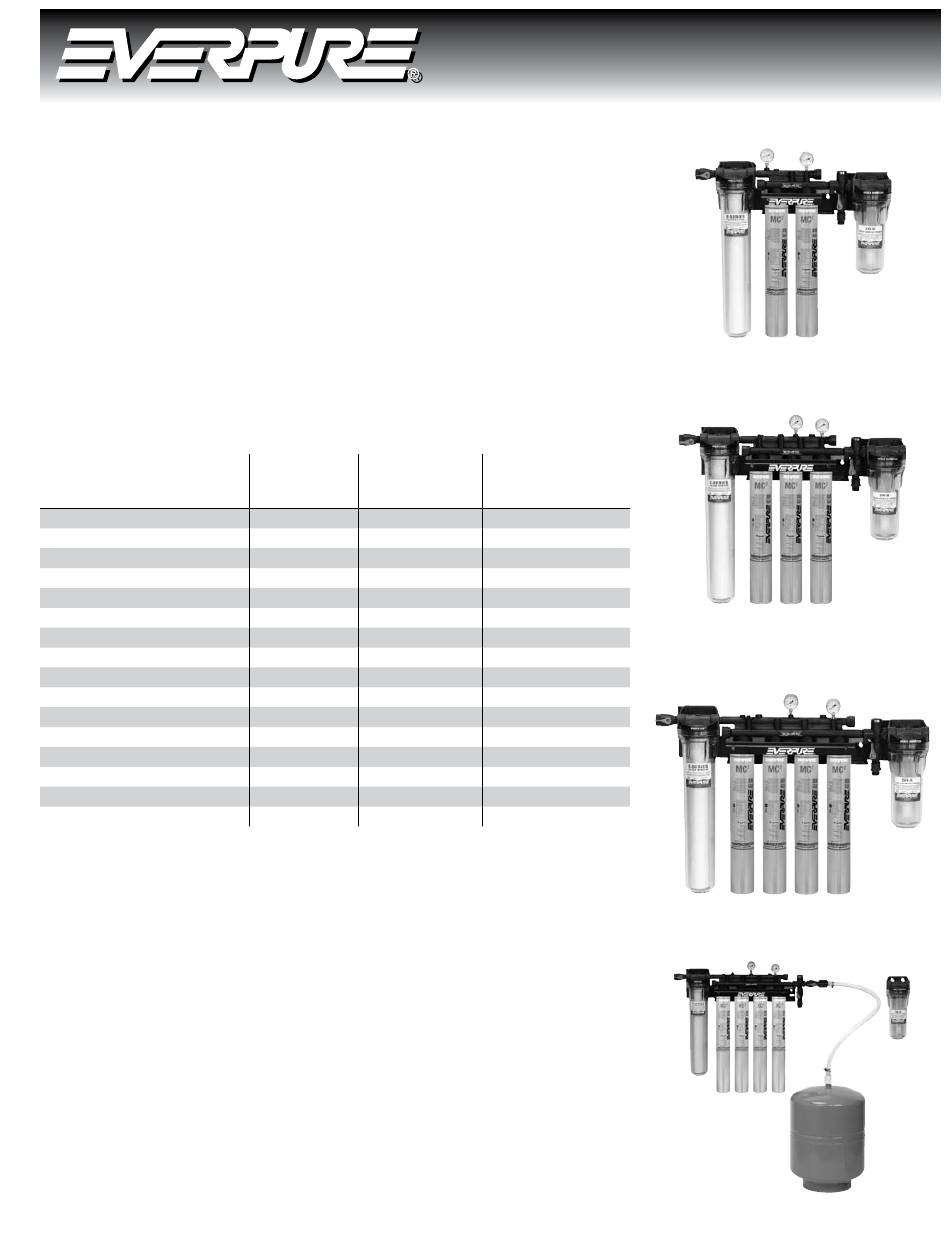

Figure 1 – Twin
Figure 2 – Triple
Figure 3 – Quad
Figure 4 – Quad Plus
EV3112-78 Rev E AP08
