TRUE
manufacturing co
CONGRATULATIONS!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.
TABLE OF CONTENTS
Ownership & Uncrating
OPERATION
WARRANTY
TRUE MANUFACTURING CO., INC.
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152
Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471
Web: www.truemfg.com
.,
.
inc
1
2
3
4
5
6
7
8
9
10
16
17
18
19

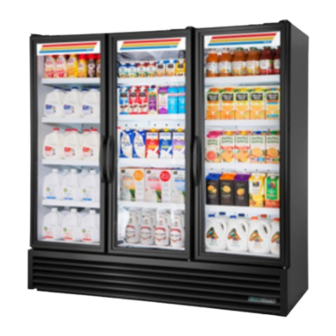

flm freezer/refrigerator
INSTALLATION MANUAL
flm freezer
FLM-54/54F~TSL01
FLM-81/81F~TSL01
INSTALLATION MANUAL
/
refrigerator
Advertisement
Table of Contents
Related Manuals for True FLM-54-TSL01
Summary of Contents for True FLM-54-TSL01
-
Page 1: Table Of Contents
Stainless Steel Equipment Care and Cleaning WARRANTY Warranty FLM-81/81F~TSL01 INSTALLATION MANUAL flm freezer/refrigerator TRUE MANUFACTURING CO., INC. 2001 East Terra Lane • O’Fallon, Missouri 63366-4434 (636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152 Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471 Web: www.truemfg.com... -
Page 2: Safety Information
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE cooler when properly maintained will give you many years of trouble-free service. WARNING: Use this appliance for its intended purpose as described in this Owner Manual. -
Page 3: Proper Disposal, Connecting Electricity, & Adapter Plugs
NEMA plugs TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source. NOTE: International plug configurations vary by voltage and country. -
Page 4: Installation
• Lamps must be replaced by identical lamps only. Before you start to install your TRUE unit, carefully inspect it for freight damage. If damage is discovered, immediately file a claim with • Appliance tested according to the climate classes 5 and 7 the delivery freight carrier. -
Page 5: Wire Gauge Chart & Electrical Installation
TRUE full length merchandisers truemfg WIRE GAUGE CHART 115 Volt s Distance In Feet To Center of Load 230 Volts Distance In Feet To Center of Load Amps 20 30 40 50 60 70 80 90 100 120 140 160... -
Page 6: Locating And Leveling
D. Cut straps if applicable. (See photo C). Carefully lift cabinet off of skid. Proper leveling of your TRUE cooler is critical to operating success (for non-mobile models). Effective condensate removal Appliance tested according to the climate classes 5 and 7 for and door operation will be effected by leveling. -
Page 7: Installation Of Legs Or Castors
TRUE full length merchandisers truemfg INSTALLATION OF CASTORS OR OPTIONAL LEGS Important Safeguard for installation of leg/castor. Images 1-5 demon- strate procedure. SECURING CASTORS AND LEGS To obtain maximum strength and stability of the unit, it is important that you make sure each castor is secure. Optional legs are hand- tightened securely against the lower rail assembly see image 4-5. -
Page 8: Sealing Cabinet To The Floor
TRUE full length merchandisers truemfg SEALING CABINET TO FLOOR STEP 6 - Raise and block the rear of the cabinet STEP 1 - Position Cabinet - Allow one inch between the wall and STEP 7 - Apply sealant on floor as outlined in Step 5 on other rear of the GDM refrigerator to assure proper ventilation. -
Page 9: Setup
TRUE full length merchandisers truemfg SETUP STANDARD ACCESSORIES SHELVING INSTALLATION / OPERATION SHELF INSTALLATION: Cantilever Shelf NOTE: Doors are manufactured with a 90˚ stay open feature to assist with loading and unloading of the cabinet. CANTILEVER SHELVING INSTALLATION: Bracket Support Tab Note: For ease of installation it is recommended to install the lower shelf first. -
Page 10: Startup
RECOMMENDATION - Before loading product we recommend A. The compressor is ready to operate. Plug in the cooler. you run your TRUE unit empty for two to three days. This allows you Temperature controls are factory-set to give refrigerators to be sure electrical wiring and installation are correct and no ship- an approximate temperature of 35°F (1.7°C) and freezers... -
Page 11: Electronic Temperature Controls Sequence Of Operation
TRUE full length merchandisers truemfg ELECTRONIC TEMPERATURE CONTROLS LAE ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION t1 = Thermostat t2 = Defrost t3 = Display t3 probe is not installed and / or activated in all applications when t3 is not installed and / or activated, the display probe is t1. - Page 12 TRUE full length merchandisers truemfg HOW TO DIAGNOSE AN LAE ELECTRONIC CONTROL Indicator lights for Refrigeration/Heating Mode, Fan Operation, Defrost Mode. LAE Control LAE Control Icons Compressor Running Evaporator Fan Running Cabinet in Defrost Activation of 2nd Parameter Set Alarm...
- Page 13 TRUE full length merchandisers truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button HOW TO TURN OFF THE LAE ELECTRONIC CONTROL: May need to unlock control. WHY: Turning off the control will deactivate all electrical components.
- Page 14 TRUE full length merchandisers truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button CHANGING THE "SET POINT": May need to unlock control. WHY: To increase or decrease product / cabinet temperature.
- Page 15 TRUE full length merchandisers truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button INITIATE A MANUAL DEFROST: May need to unlock control. WHY: A one time additional defrost may be necessary to clear accumulated frost / ice from evaporator coil.
- Page 16 TRUE full length merchandisers truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button HOW TO CHANGE DISPLAY READOUT FROM FAHRENHEIT TO CELSIUS: May need to unlock control. This can NOT be changed with the LAE model AR2-28 version of the control. See page 32 for more information.
-
Page 17: Maintenance, Care, Cleaning
TRUE full length merchandisers truemfg MAINTENANCE, CARE, CLEANING CLEANING THE CONDENSER COIL STEP 3 - Remove bolts anchoring compressor assembly to frame rails and carefully slide out. (tube connections are flexible) When using electrical appliances, basic safety precautions should be... -
Page 18: Important Warranty Information
Reconnect the electrical power to the unit. rear of the unit. You must remove the cabinet grill to expose the If you have any questions, please call TRUE Manufacturing at 636- Condenser. 240-2400 or 800-325-6152 and ask for the Service Department. -
Page 19: Stainless Steel Equipment Care And Cleaning
TRUE full length merchandisers truemfg STAINLESS STEEL EQUIPMENT CARE 8 STEPS THAT CAN HELP PREVENT RUST ON AND CLEANING STAINLESS STEEL: CAUTION: Do not use any steel wool, abrasive or chlorine based USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces. -
Page 20: Warranty
TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of three (3) years from the date of original installation or 39 months after shipment date from TRUE, whichever occurs first.
