9.5

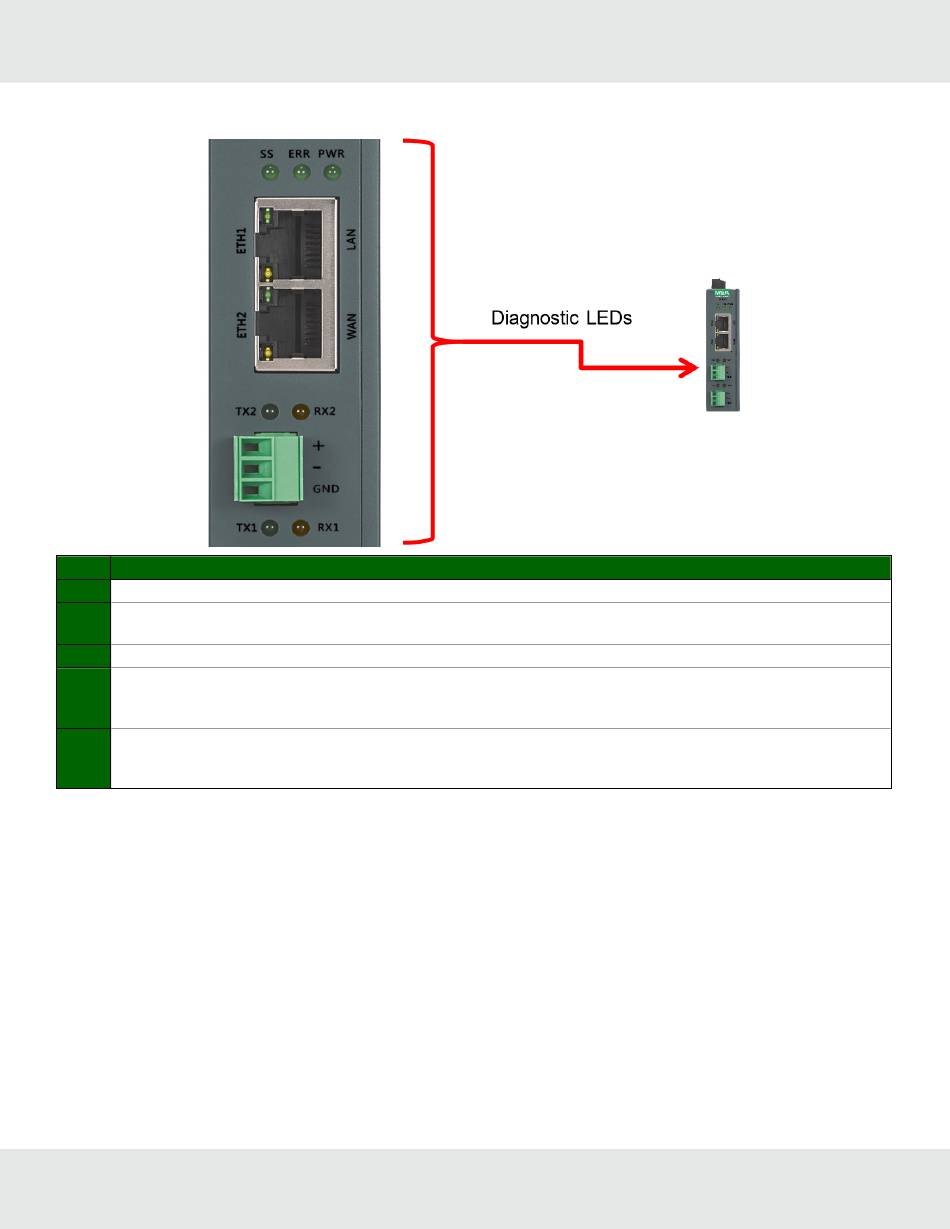

LED Functions

Tag
SS The SS LED will flash once a second to indicate that the bridge is in operation.
The SYS ERR LED will go on solid indicating there is a system error. If this occurs, immediately report the related
ERR
"system error" shown in the error screen of the FS-GUI interface to support for evaluation.
This is the power light and should always be steady green when the unit is powered.
PWR
The RX LED will flash when a message is received on the serial port on the 3-pin connector.
If the serial port is not used, this LED is non-operational. RX1 applies to the R1 connection while RX2 applies to the
RX
R2 connection.
The TX LED will flash when a message is sent on the serial port on the 3-pin connector.
TX If the serial port is not used, this LED is non-operational. TX1 applies to the R1 connection while TX2 applies to the
R2 connection.
31
Description
