3.3

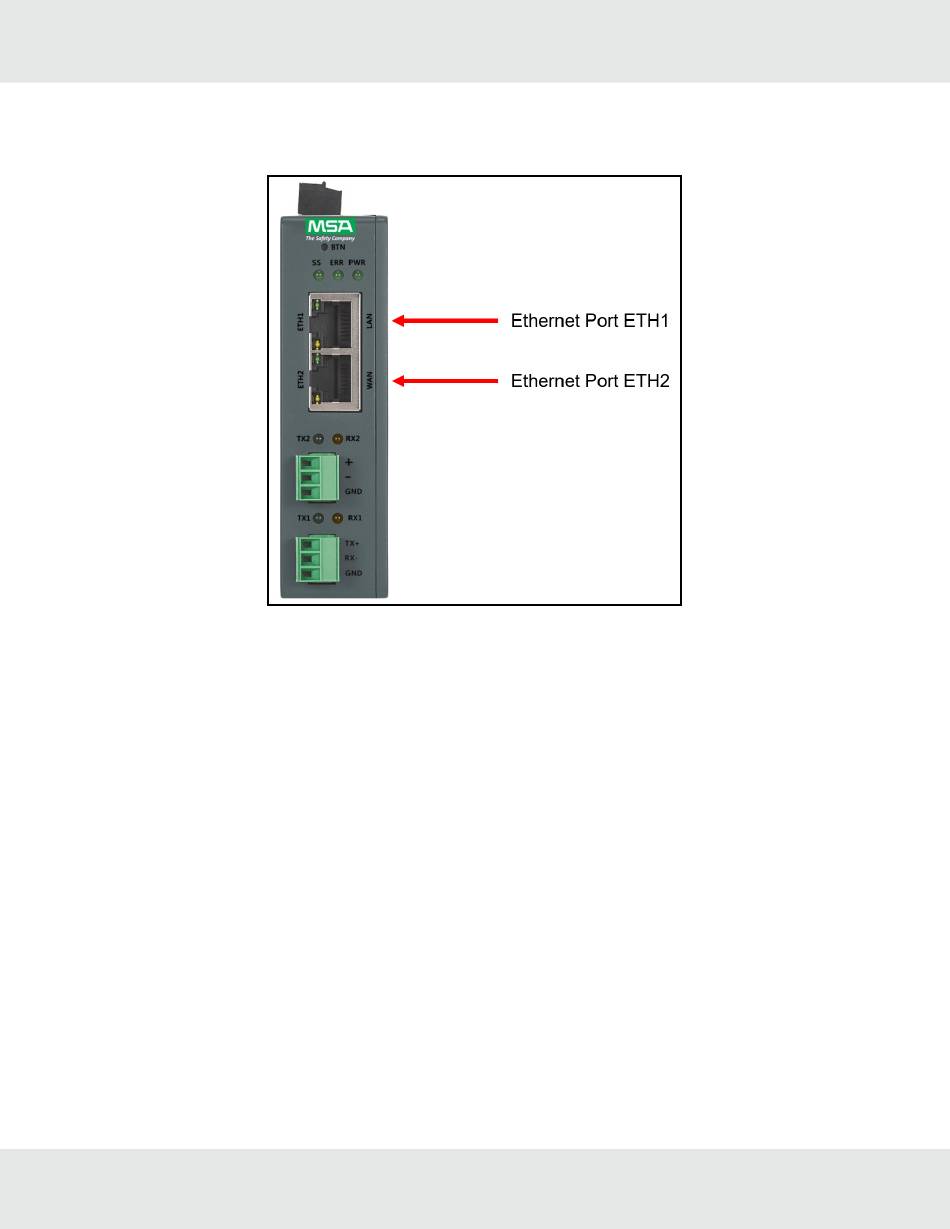

10/100 Ethernet Connection Port
NOTE: Do not use shielded Ethernet cables.
The Ethernet Port is used both for Ethernet protocol communications and for configuring the gateway via the Web App. To
connect the gateway, either connect the PC to the router's Ethernet port or connect the router and PC to an Ethernet switch.
Use Cat-5 cables for the connection.
NOTE: The Default IP Address of the gateway is 192.168.2.101, Subnet Mask is 255.255.255.0.
NOTE: The ETH2 port can be set to WAN mode to limit Ethernet traffic. See Section
7.4 Ethernet 2 Network
Settings – WAN Mode
for details.
NOTE: ETH1 and ETH2 must be configured with IP Addresses on different IP subnets.
11
QuickServer Start-up Guide
