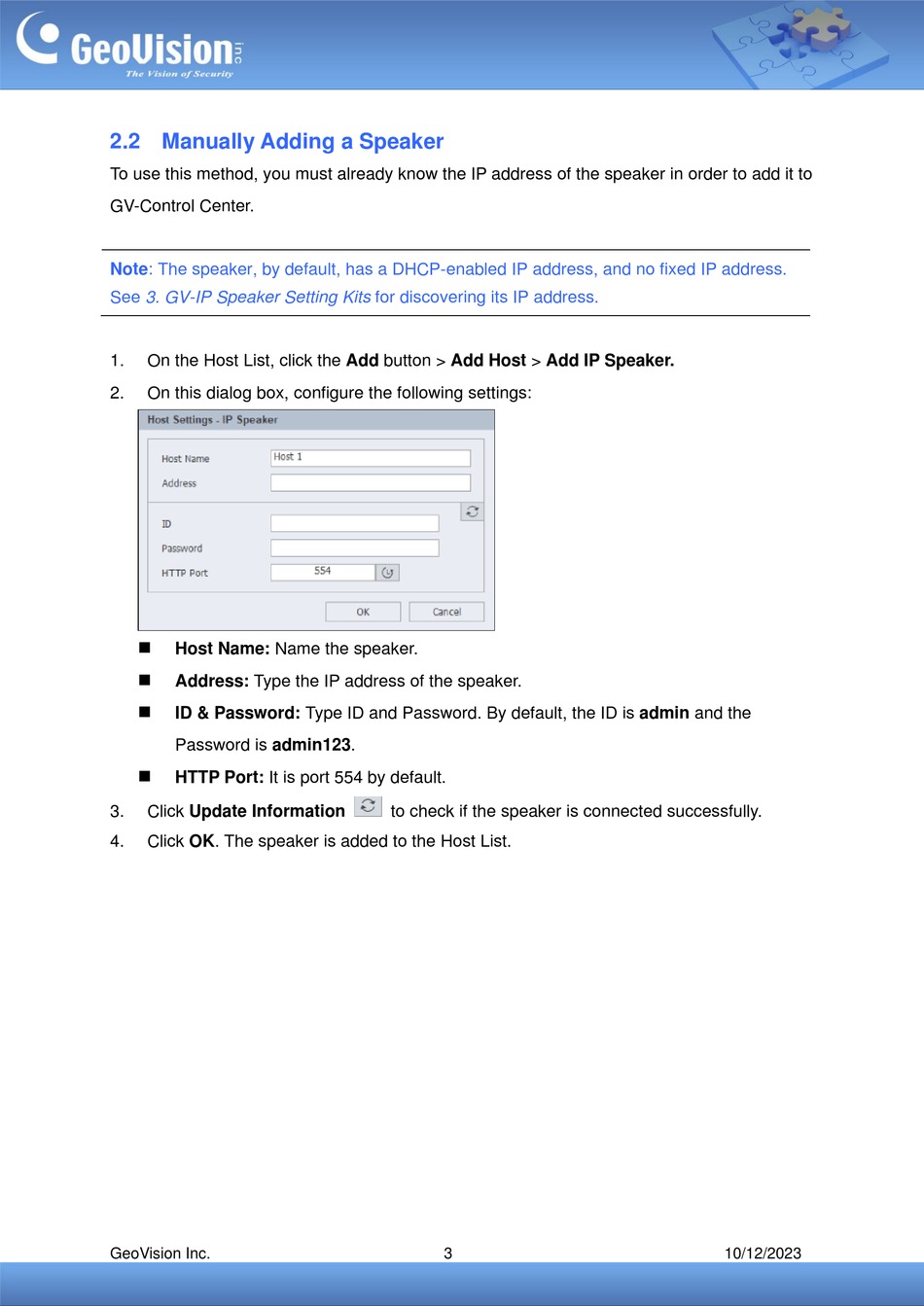

2.2 Manually Adding a Speaker

To use this method, you must already know the IP address of the speaker in order to add it to
GV-Control Center.
Note: The speaker, by default, has a DHCP-enabled IP address, and no fixed IP address.
See 3. GV-IP Speaker Setting Kits for discovering its IP address.
1. On the Host List, click the Add button > Add Host > Add IP Speaker.
2. On this dialog box, configure the following settings:
◼
Host Name: Name the speaker.
◼
Address: Type the IP address of the speaker.
◼
ID & Password: Type ID and Password. By default, the ID is admin and the
Password is admin123.
◼
HTTP Port: It is port 554 by default.
3. Click Update Information
4. Click OK. The speaker is added to the Host List.
GeoVision Inc.
to check if the speaker is connected successfully.
3 10/12/2023
