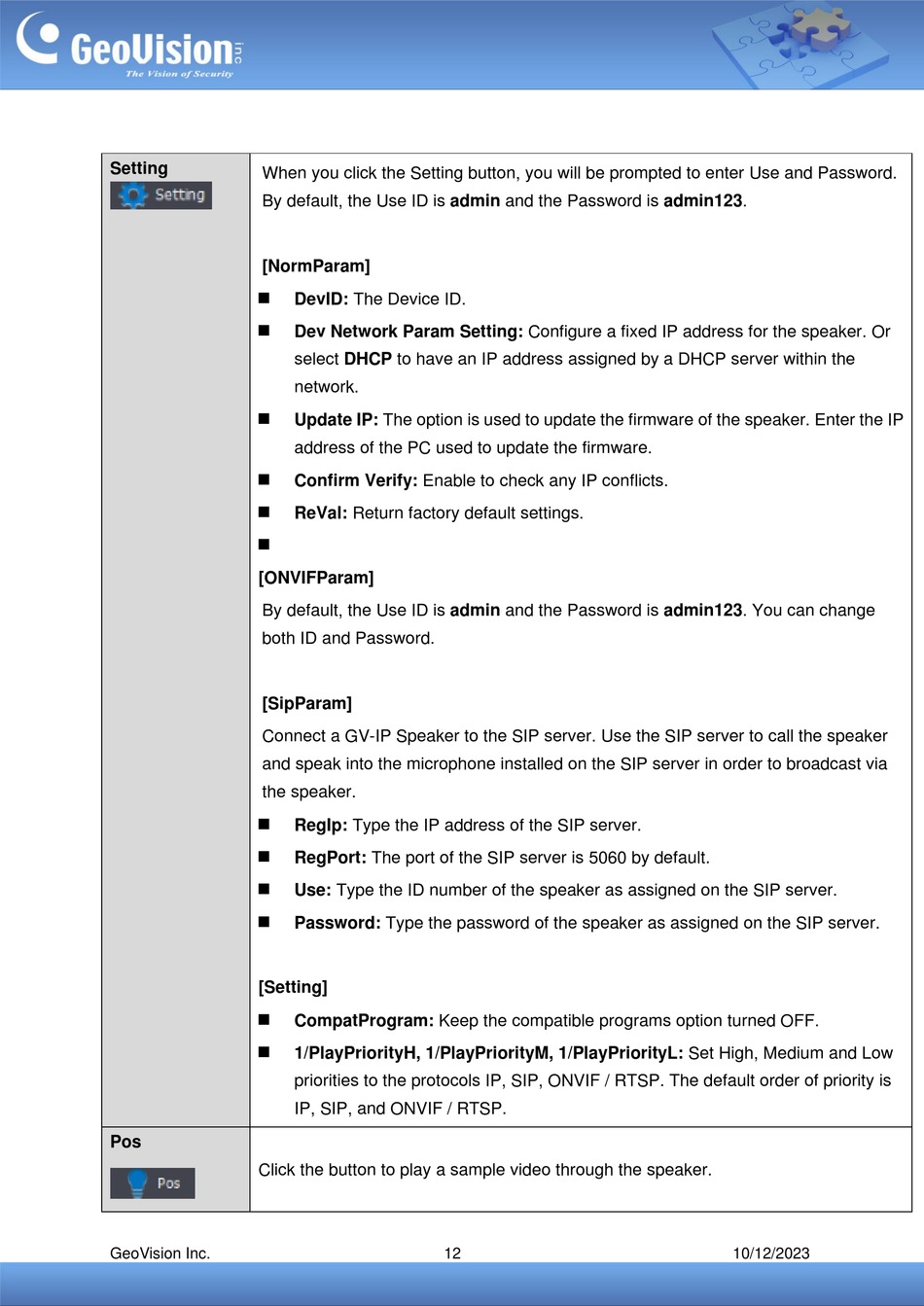

GeoVision GV-IP User Manual page 12

Setting
When you click the Setting button, you will be prompted to enter Use and Password.
By default, the Use ID is admin and the Password is admin123.
[NormParam]
◼
◼
◼
◼
◼
◼
[ONVIFParam]
By default, the Use ID is admin and the Password is admin123. You can change
both ID and Password.
[SipParam]
Connect a GV-IP Speaker to the SIP server. Use the SIP server to call the speaker
and speak into the microphone installed on the SIP server in order to broadcast via
the speaker.
◼
◼
◼
◼
[Setting]
◼
◼
Pos
Click the button to play a sample video through the speaker.
GeoVision Inc.
DevID: The Device ID.
Dev Network Param Setting: Configure a fixed IP address for the speaker. Or
select DHCP to have an IP address assigned by a DHCP server within the
network.
Update IP: The option is used to update the firmware of the speaker. Enter the IP
address of the PC used to update the firmware.
Confirm Verify: Enable to check any IP conflicts.
ReVal: Return factory default settings.
RegIp: Type the IP address of the SIP server.
RegPort: The port of the SIP server is 5060 by default.
Use: Type the ID number of the speaker as assigned on the SIP server.
Password: Type the password of the speaker as assigned on the SIP server.
CompatProgram: Keep the compatible programs option turned OFF.
1/PlayPriorityH, 1/PlayPriorityM, 1/PlayPriorityL: Set High, Medium and Low
priorities to the protocols IP, SIP, ONVIF / RTSP. The default order of priority is
IP, SIP, and ONVIF / RTSP.
12 10/12/2023
