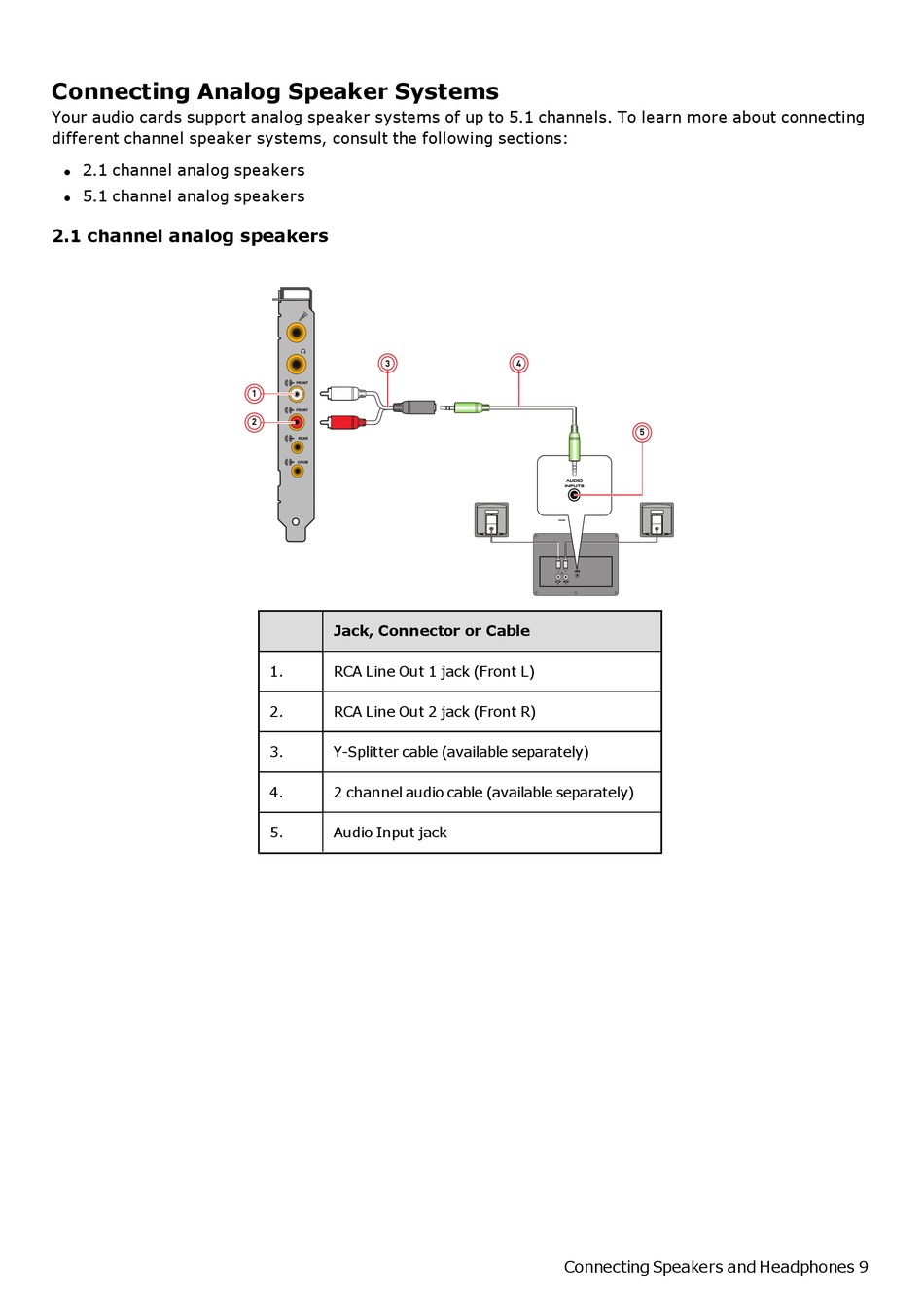

Connecting Analog Speaker Systems

Your audio cards support analog speaker systems of up to 5.1 channels. To learn more about connecting
different channel speaker systems, consult the following sections:
2.1 channel analog speakers
l
5.1 channel analog speakers
l
2.1 channel analog speakers
3
1
2
Jack, Connector or Cable
1. RCA Line Out 1 jack (Front L)
2. RCA Line Out 2 jack (Front R)
3. Y-Splitter cable (available separately)
4. 2 channel audio cable (available separately)
5. Audio Input jack
4
5
audio
inputs
speakers
audio
inputs
Connecting Speakers and Headphones 9
