  • Page 1 EN - User’s manual F404 1-2-3 Ω Ω ° ° ° HOLD ∆ ∆ kΩ MAX MIN AC DC °C°F F404 AC/DC TRMS CLAMP METER 1700 V 1200 V 1000 V CAT IV 1500 V CAT III Clamp multimeter...
  • Page 2 You have just acquired an F404 clamp multimeter and we thank you. For best results from your device: „ read this user manual attentively, „ observe the precautions for its use. WARNING, risk of DANGER ! The operator should refer to this user's manual whenever this danger symbol appears.

  • Page 3: Table Of Contents

    CONTENTS 1. DELIVERY CONDITION ..............................4 2. PRESENTATION ..................................5 2.1. The switch ...................................6 2.2. The keys of the keypad ...............................7 2.3. The display unit ................................8 2.4. The terminals ................................9 3. THE KEYS ...................................10 HOLD 3.1. key ................................10 3.2. key (second function) ............................ 11 3.3.

  • Page 4: Delivery Condition

    1. DELIVERY CONDITION The F404 clamp multimeter is delivered in its packaging box with: „ 2 banana-banana leads, one red and one black „ 2 test probes, one red and one black „...

  • Page 5: Presentation

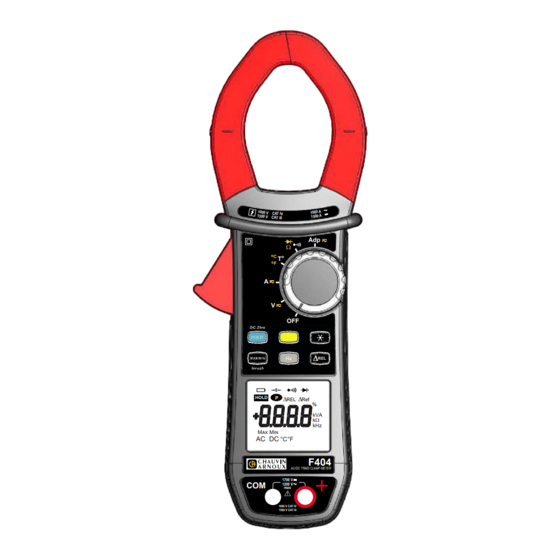

    2. PRESENTATION The F404 is a professional electrical measuring instrument that combines the following functions: „ Current measurement, „ Measurement of inrush current / over current (True-Inrush), „ Voltage measurement, „ Frequency measurement, „ Continuity test with buzzer, „ Resistance measurement, „...

  • Page 6: The Switch

    2.1. THE SWITCH The switch has six positions. To access the , functions, set the switch to the desired function. Each setting is confirmed by an audible signal. The functions are described in the table below: Figure 2: the switch Item Function See §...

  • Page 7: The Keys Of The Keypad

    2.2. THE KEYS OF THE KEYPAD Here are the six keys of the keypad: Figure 3: the keys of the keypad Item Function See § Storage of values, disabling of display Zero connection ADC 4.9.2 Compensation of the resistance of the leads in the continuity and 4.6.1 ohmmeter function Selection of the type of measurement (AC, DC)

  • Page 8: The Display Unit

    2.3. THE DISPLAY UNIT Here is the display unit of the clamp multimeter: ∆ ∆ HOLD kΩ MAX MIN AC DC °C°F Figure 4: the display unit Item Function See § Display of the modes selected (keys) Display of the measurement value and unit 4.12 Display of the MAX/MIN modes Type of measurement (AC or DC)

  • Page 9: The Terminals

    2.3.1. THE SYMBOLS OF THE DISPLAY UNIT Symbol Designation Alternating current or voltage Direct current or voltage ΔREL Relative value, with respect to a reference ΔRef Reference value Storage of the values and hold of the display HOLD Maximum RMS value Minimum RMS value Volt Hertz...

  • Page 10: The Keys

    3. THE KEYS The keys of the keypad respond differently to short, long, and sustained presses. ∆ keys provide new functions and allow the detection and acquisition of parameters complementary MAX/MIN to the usual elementary measurements. Each of these keys can be used independently of the others or in perfect complementarity with them: this makes navigation simple and intuitive for looking up all measurement results.

  • Page 11: Key (Second Function)

    3.2. KEY (SECOND FUNCTION) This key is used to select the type of measurement (AC, DC) and the second functions marked in yellow next to the relevant positions of the switch. It can also be used, in the configuration mode, to modify the default value (see § 4.4). Remark: the key is invalid in the MAX/MIN, HOLD and ΔREL modes.

  • Page 12: Hz Key

    3.4.2. THE MAX/MIN MODE + ACTIVATION OF THE HOLD MODE ... serve Successive presses on MAX/MIN - to display successively the MAX/MIN values detected before the short HOLD key was pressed. Note: the HOLD function does not interrupt the acquisition of new MAX, MIN values. 3.4.3.

  • Page 13: Key

    3.6. This key is used to display and store the reference value or to display the differential and relative value, in the unit of magnitude measured or in %. Successive presses on ... serve - to enter the ΔREL mode, to store then display the reference value. The ΔRef symbol is displayed.

  • Page 14: Use

    4. USE 4.1. COMMISSIONING Insert the batteries supplied with the device as follows: 1. Using a screwdriver, unscrew the screw of the battery compartment cover (item 1) on the back of the housing and open it ; 2. Place the 4 batteries in the compartment (item 2), taking care to get the polarities right ; 3.
  • Page 15 4.4.2. DE-ACTIVATION OF AUTOMATIC SWITCHING OFF (AUTO POWER OFF) To de-activate automatic switching off: HOLD 1. In the OFF position, hold the key down while turning the switch to , until the "full screen" display ends and a beep is emitted, to enter the configuration mode. The symbol is displayed.

  • Page 16: Voltage Measurement (V)

    4.5. VOLTAGE MEASUREMENT (V) To measure a voltage, proceed as follows: 1. Set the switch to 2. Connect the black lead to the COM terminal and the red lead to "+", 3. Place the test probes or the crocodile clips on the terminals of the circuit to be measured. The device selects AC or DC automatically according to which measured value is larger.

  • Page 17: Resistance Measurement Ω

    4.7. RESISTANCE MEASUREMENT Ω Warning: Before making a resistance measurement, make sure that the circuit is cold and any capacitors have been discharged. 1. Set the switch to and press the key. The Ω symbol is displayed. 2. Connect the black lead to the "COM" terminal and the red lead to "+". 3.
  • Page 18 4.9.1. AC MEASUREMENT For an AC current measurement, proceed as follows: 1. Set the switch to and select AC by pressing the key. The AC symbol is displayed. 2. Encircle only the conductor concerned with the clamp. The measured value is displayed on the screen. 4.9.2.

  • Page 19: Starting Current Or Over-Current (True Inrush) Measurement

    4.10. STARTING CURRENT OR OVER-CURRENT (TRUE INRUSH) MEASUREMENT Remark: the measurement can be made only in AC or DC. To measure a starting current or over current, proceed as follows: 1. Set the switch to , correct the DC zero (§ 4.9.2), then apply the clamp around the single conductor concerned. 2.

  • Page 20: Temperature Measurement

    4.11.2. FREQUENCY MEASUREMENT IN CURRENT 1. Set the switch to and press the key. The "Hz" symbol is displayed. 2. Select AC by pressing the yellow key until the desired choice is reached. 3. Encircle only the conductor concerned with the clamp. The measured value is displayed on the screen.

  • Page 21: Adapter Function Measurement

    4.13. ADAPTER FUNCTION MEASUREMENT This function makes it possible to connect any adapter/sensor whatever that converts an electrical or physical quantity into a DC or AC voltage, and obtain a direct, immediate reading without applying a conversion factor. The mode, AC or DC (the default), must be chosen manually using the yellow key. The measurement is made as a voltage measurement.

  • Page 22: Characteristics

    5. CHARACTERISTICS 5.1. REFERENCE CONDITIONS Quantities of influence Reference conditions Temperature 23°C ± 2°C Relative humidity 45 % to 75 % Supply voltage 6.0 V ± 0.5 V Frequency range of the applied signal 45 - 65 Hz Sine wave pure Peak factor of the applied alternating signal √...
  • Page 23 5.2.3. DC CURRENT MEASUREMENT Measurement range (2) 0.00 A to 99.99 A 100.0 A to 999.9 A 1 000 A to 1 500 A (1) Specified measurement 0 to 100 % of the measurement range range Uncertainties (2) ± (1 % R + 10 pts) ±...
  • Page 24 5.2.8. DIODE TEST Measurement range 0.000 V to 3.199 VDC Specified measurement range 1 to 100 % of the measurement range Uncertainties ± (1 % R + 10 pts) Resolution 0.001 V Measurement current 0.55 mA Indication: junction reversed or open-circuit Display of "OL"...

  • Page 25: Environmental Conditions

    5.2.11. ADAPTER FUNCTION MEASUREMENT In DC mode Measurement range (1) 0.0 to 999.9 mV 1.00 to 9.99 V Specified measurement range (2) 0 to 100 % of the measurement range Uncertainties 1 % R + 3 pts Resolution 0.1 mV 10 mV Input impedance 10 MΩ...

  • Page 26: Characteristics Of Construction

    5.4. CHARACTERISTICS OF CONSTRUCTION Housing Rigid polycarbonate shell with moulded elastomer covering Polycarbonate Jaws Opening: 48 mm Clamping diameter: 48 mm LCD display unit Screen Blue backlighting Dimension: 41 x 48 mm Dimension H-272 x W-92 x D-41 mm Weight 600 g (with the batteries) 5.5.

  • Page 27: Compliance With International Standards

    5.6. COMPLIANCE WITH INTERNATIONAL STANDARDS Compliant with standards IEC/EN 61010-1 or BS EN 61010-1, Electric safety IEC/EN 61010-2-032 or BS EN 61010-2-032: 1 000 V CAT IV and 1 500 V CAT III Compliant with standard IEC/EN 61326-1 or BS EN 61326-1 Electromagnetic compatibility Classification: residential environment Mechanical strength...

  • Page 28: Maintenance

    6. MAINTENANCE The instrument has no parts that can be replaced by personnel who are not trained and approved. Any non-approved repair or other work, or replacement of a part by an "equivalent", may severely compromise safety. 6.1. CLEANING „ Disconnect everything connected to the device and set the switch to OFF. „...
