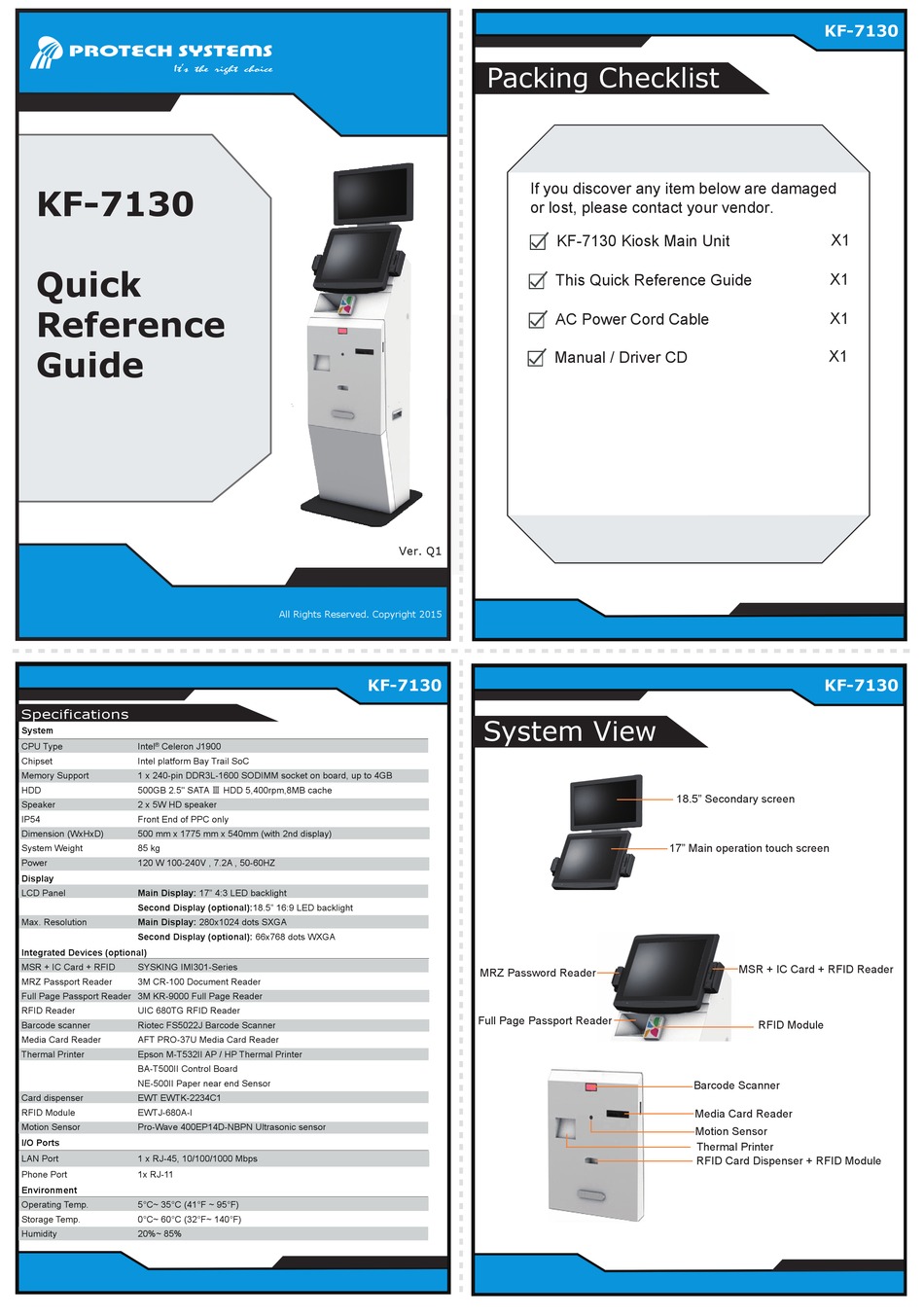

Protech Systems KF-7130 Quick Reference Manual

KF-7130
Quick
Reference
Guide

Specifications

System
CPU Type Intel Celeron J1900
®
Chipset Intel platform Bay Trail SoC
Memory Support 1 x 240-pin DDR3L-1600 SODIMM socket on board, up to 4GB
HDD 500GB 2.5" SATA Ⅲ HDD 5,400rpm,8MB cache
Speaker 2 x 5W HD speaker
IP54 Front End of PPC only
Dimension (WxHxD) 500 mm x 1775 mm x 540mm (with 2nd display)
System Weight 85 kg
Power 120 W 100-240V , 7.2A , 50-60HZ
Display
LCD Panel Main Display: 17" 4:3 LED backlight
Second Display (optional):18.5" 16:9 LED backlight
Max. Resolution Main Display: 280x1024 dots SXGA
Second Display (optional): 66x768 dots WXGA
Integrated Devices (optional)
MSR + IC Card + RFID SYSKING IMI301-Series
MRZ Passport Reader 3M CR-100 Document Reader
Full Page Passport Reader 3M KR-9000 Full Page Reader
RFID Reader UIC 680TG RFID Reader
Barcode scanner Riotec FS5022J Barcode Scanner
Media Card Reader AFT PRO-37U Media Card Reader
Thermal Printer Epson M-T532II AP / HP Thermal Printer
BA-T500II Control Board
NE-500II Paper near end Sensor
Card dispenser EWT EWTK-2234C1
RFID Module EWTJ-680A-I
Motion Sensor Pro-Wave 400EP14D-NBPN Ultrasonic sensor
I/O Ports
LAN Port 1 x RJ-45, 10/100/1000 Mbps
Phone Port 1x RJ-11
Environment
Operating Temp. 5°C~ 35°C (41°F ~ 95°F)
Storage Temp. 0°C~ 60°C (32°F~ 140°F)
Humidity 20%~ 85%
Ver. Q1
All Rights Reserved. Copyright 2015
KF-7130

Packing Checklist

If you discover any item below damaged or lost,
If you discover any item below are damaged
please contact your vendor.
or lost, please contact your vendor.
KF-7130 Kiosk Main Unit
KF-7130 Kiosk Main Unit
This Quick Reference Guide
This Quick Reference Guide
AC Power Cord Cable
This Quick Reference Guide
Manual / Driver CD

System View

MRZ Password Reader
Full Page Passport Reader
KF-7130
X1
x1
x1
X1
X1
x1
X1
KF-7130
18.5" Secondary screen
17" Main operation touch screen
MSR + IC Card + RFID Reader
RFID Module
Barcode Scanner
Media Card Reader
Motion Sensor
Thermal Printer
RFID Card Dispenser + RFID Module
