Protech Systems KS-1130 Quick Reference Manual

KS-1130
Quick
Reference
Guide
Specifications
System
®
CPU Intel Atom
Memory Support Up to 8GB DDR3L SO-DIMM memory
HDD 1 x 500GB 2.5" SATA HDD
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 1 x 12V+24V power supply & 1 x 24V power supply
System Weight 55 kg (without Free Stand) / 95 kg (with Free Stand)
Dimensions (WxHxD) 500 x 1050 x 151 mm (without Free Stand)
580 x 1750 x 600 mm (with Free Stand)
Certificate CE/FCC
Operating Display
LCD 31.5" TFT LCD
Max. Resolution 1920 x 1080
2
Brightness 500 cd/m
Touchscreen Projected capacitive touch
View Angle Horizontal: (R) 89° / (L) 89°, Vertical: (U) 89° / (L) 89°
Optional Accessories
Thermal Printer 2"/3" Standalone thermal printer for 58/80mm paper roll
Barcode Scanner 1D/2D Barcode Scanner
MSR/IC Card Reader RS232 interface of the hybrid card reader intended to
read ISO / JIS II format magnetic card and read/write
ISO7816 / ISO / JIS II format magnetic card and
read/write ISO7816 / EMV / memory chip smart card
32" Bezel-free projected capacitive touchscreen
Face Camera 16:9 2.1M-Pixels Full HD H.264 PC camera
Credit Card Reader & Based on customer requirements
e-Payment
RFID Reader Read/write ISO 14443A Mifare
Environment
Temperature Operating: 0°C ~ 35°C; Storage: -5°C ~ 60°C
Humidity 20% ~ 85% (no condensation)
Entry Level System
All Rights Reserved. Copyright 2018
KS-1130
TM J1900
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor immediately.
KS-1130
This Quick Reference Guide
AC Power Adaptor
Manual/Driver DVD
Ver. Q1

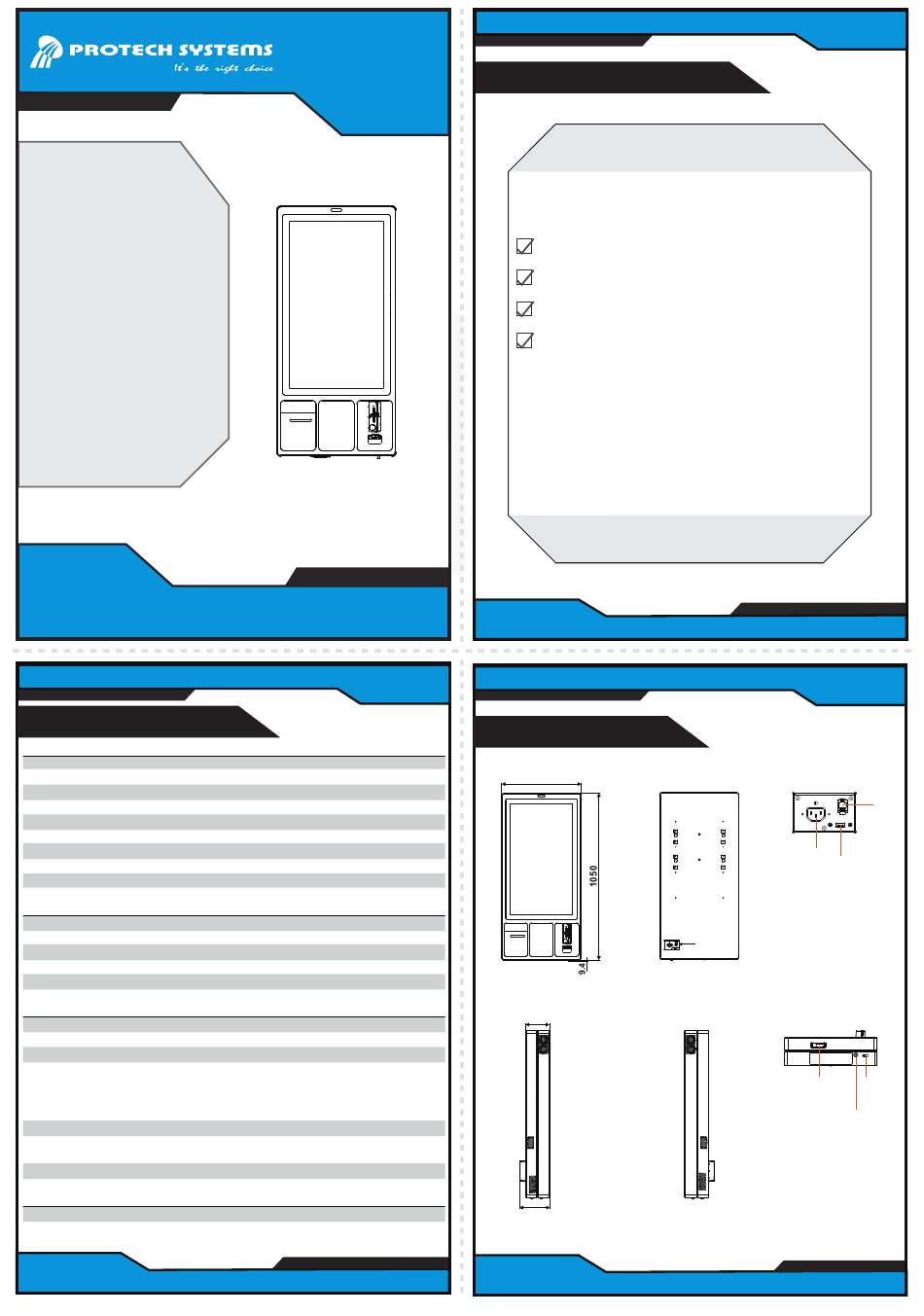

System View
Front View
500
Right Side View
151
(189.6)
KS-1130
x1
x1
x1
KS-1130
Rear I/O View
Rear View
AC Power
Socket
Rear I/O
Left Side View Bottom View
Thermal Printer
Door Latch
x1
LAN
USB
(optional)
Main Door
Latch
Main Door
Key Hole
