Protech Systems KF-7131 Quick Reference Manual

KF-7131
Quick
Reference
Guide

Specifications

System
CPU Type Intel Celeron J1900
®
Chipset Intel Platform Bay Trail SoC
®
Memory Support 1 x 204-pin DDR3L-1600 SO-DIMM socket on board, up to 4GB
HDD 512GB 2.5" MLC SSD
Speaker 2 x 2W system speakers
Dimension (WxHxD) 650 mm x 1565 mm x 650mm
System Weight 120 Kg
Power Supply 72 W 100-240V , 7.2A , 50-60HZ
Display
LCD Panel 17" 4:3 LED backlight LCD
Touch 17" Projected Capacitive Touch
Max. Resolution 1280x1024 dots SXGA
Integrated Devices
Wi-Fi_Bluetooth Module FANGTEC AR9462 Combo Mini Card
& Antenna
Web Cam FANGTEC AG5120C24-S1-3F0
Barcode Scanner Riotec FS5022J Barcode Scanner
RFID Module EWTA-M1252U (NFC Reader)
Card Printer & Dispenser HiTi CS-220e Transparent Card Printer
Thermal Printer RING 408PE+
UPS APC Back-UPS 550
I/O Ports
LAN Port 1 x RJ-45, 10/100/1000 Mbps
USB Ports 8 x USB2.0 ports on M/B
8 x USB2.0 on D/B board
Serial Ports 3 x COM ports on M/B
Environment
Operating Temp. 10°C~ 32°C (50°F ~ 90°F)
Storage Temp. 0°C~ 60°C (32°F~ 140°F)
Humidity 20%~ 85% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2016
KF-7131

Packing Checklist

If you discover any item below damaged or lost,
If you discover any item below are damaged
please contact your vendor.
or lost, please contact your vendor.
KF-7131 Kiosk Main Unit
KF-7130 Kiosk Main Unit
This Quick Reference Guide
This Quick Reference Guide
AC Power Cord Cable
This Quick Reference Guide
Manual / Driver CD

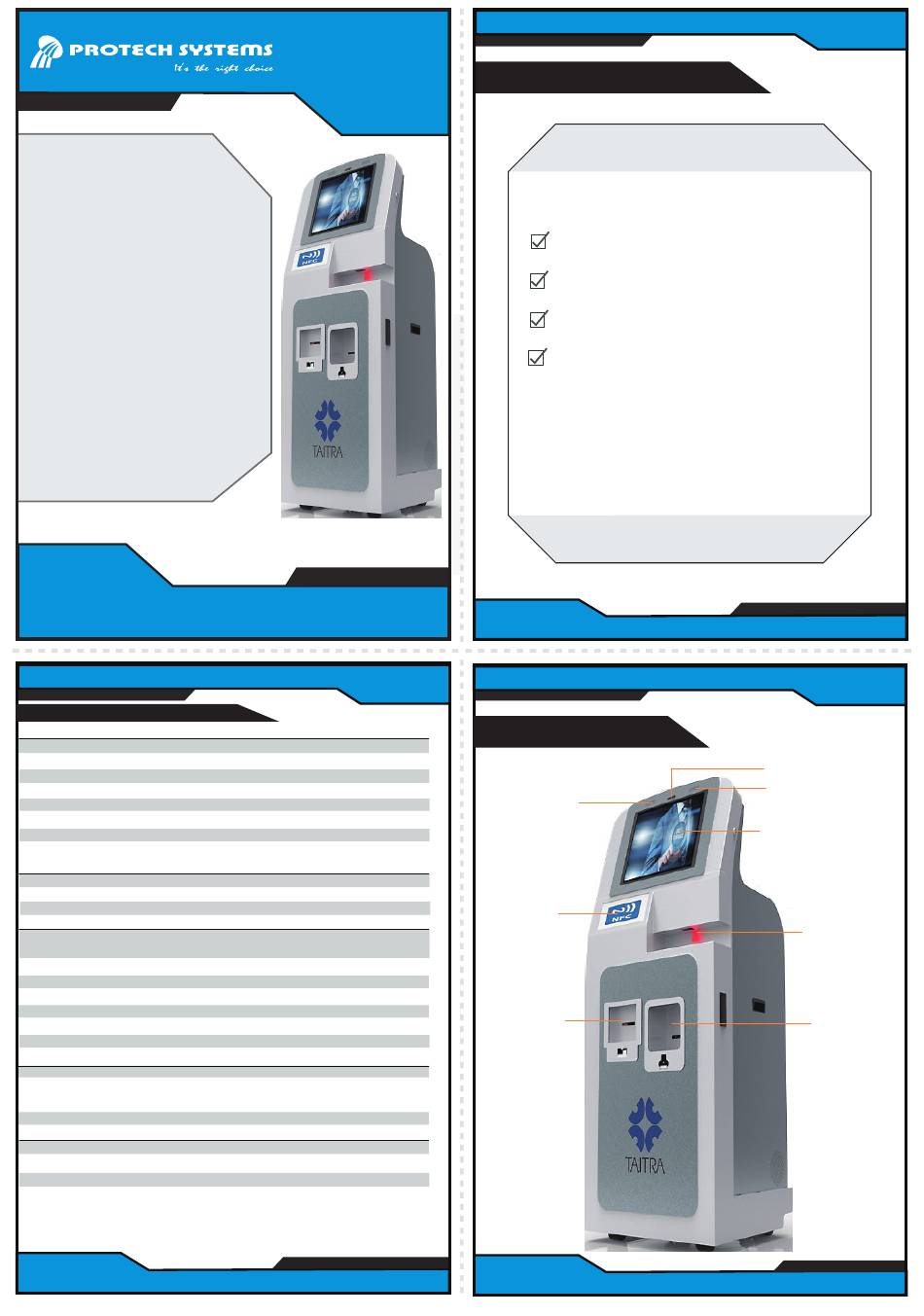

System View

Speaker
NFC Module &
iBeacon
Card Printer &
Dispenser
KF-7131
X1
x1
x1
X1
X1
x1
X1
KF-7131
Web Cam
Speaker
17" operation touch screen
Barcode Scanner
Ticket Printer
