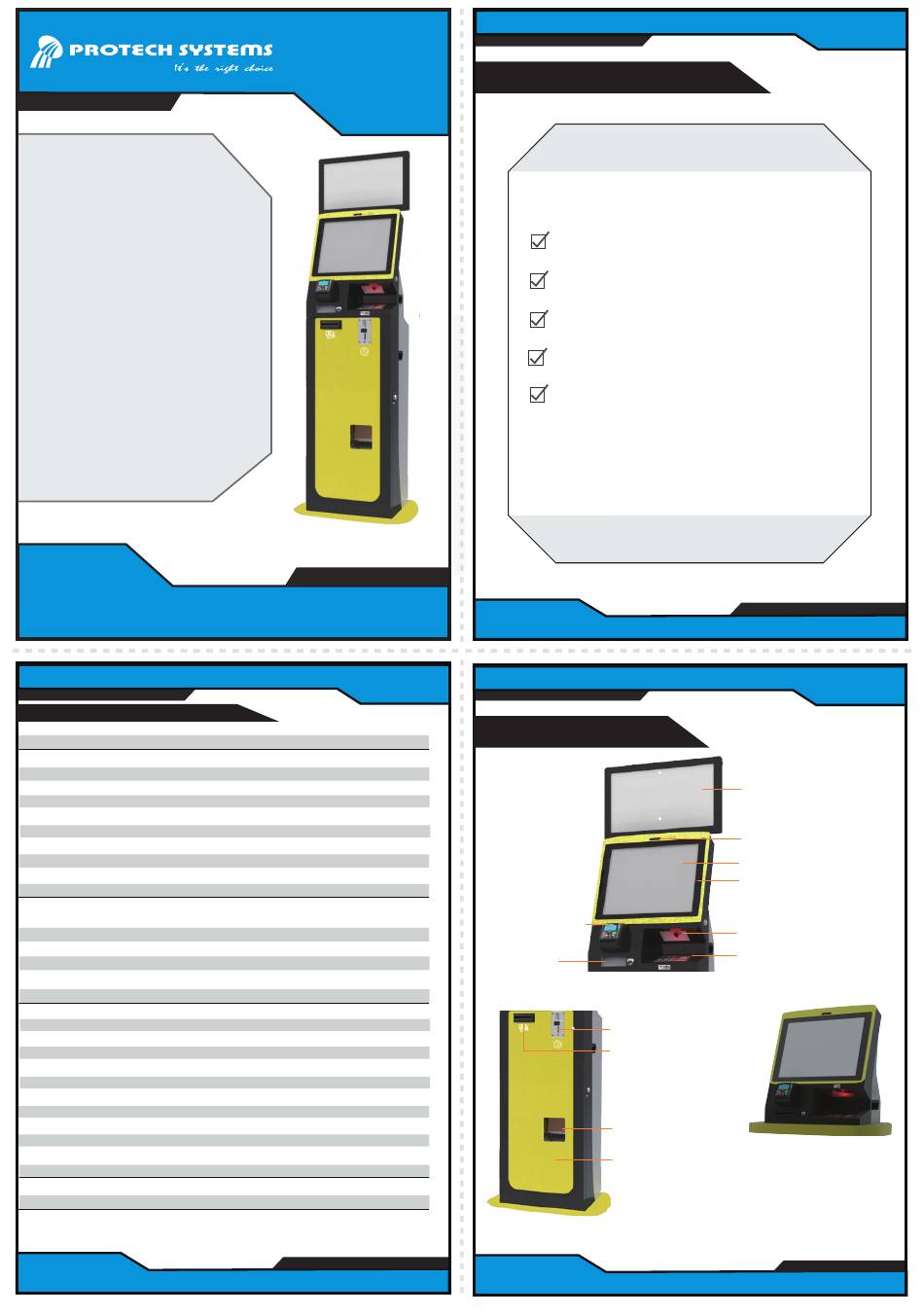

Protech Systems KF-7330 Quick Reference Manual

KF-7330
Quick
Reference
Guide
Specifications
System
CPU Type Intel Celeron J1900
®
Chipset Intel platform Bay Trail SoC
Memory Support 1 x DDR3 SO-DIMM socket on board (Default: 4GB)
HDD 500GB 2.5" SATA HDD
Speaker 2W speaker
O.S. Support POS Ready 7 / Windows 7
Dimension (WxHxD) 420 mm x 1464 mm x 405mm (with 2nd display)
System Weight About 110 kg (with package materials)
Power 120 W 100-240V , 7.2A , 50-60HZ
Display
LCD Panel Main Display: 17" 4:3 LED backlight
Second Display (optional):18.5" 16:9 LED backlight
Max. Resolution Main Display: 1280x1024 dots SXGA
Second Display (optional): 1366x768 dots WXGA
Touch Screen Projected Capacitive Touch
Integrated Devices
MSR ISO Track 1/2/3 and JIS II
RFID Reader Read/Write ISO 14443A Mifare
Barcode scanner 1D/2D Bardcode Scanner
Smart Card Reader Read/Write ISO 7816 Smart Card
Pin Pad PCI 3.x certified PAD
Camera 2.1M fixed focus CCD camera module
Thermal Printer Paper width: 79.5 ± 0.5mm/Printing speed: 250 mm/s maximum
Contactless Payment Visa payWave qVSDC, Master Paypass M/Chip
Coin Acceptor Acceptance Rate: 96% or greater
Coin Hopper About €1 x 1500pcs, up to 12 coins per second for payout speed
I/O Ports
LAN Port 1 x RJ-45, 10/100/1000 Base-T Fast Ethernet
Environment
Operating Temp. 5°C~ 35°C (41°F ~ 95°F)
Storage Temp. -20°C~ 60°C (-4°F~ 140°F)
Humidity 20%~ 85%
Ver. Q1
All Rights Reserved. Copyright 2016
KF-7330
Packing Checklist
If you discover any item below damaged or lost,
If you discover any item below are damaged
please contact your vendor.
or lost, please contact your vendor immediately.
KF-7330 Kiosk Main Unit
KF-7130 Kiosk Main Unit
This Quick Reference Guide
This Quick Reference Guide
AC Power Cord Cable
Manual / Driver CD
This Quick Reference Guide
Key
System View
Contact/Contactless/
MagStrip
Printer
Coin Acceptor
Bill Acceptor /
Receiver
Coin Withdrawal Cabinet
Trim Panel
KF-7330
X1
x1
x1
X1
X1
X1
x1
X7
KF-7330
18.5" Secondary screen
Camera
17" Main operation touch screen
Trim Panel
Barcode Scanner
PinPad
Desktop KIOSK
Top side only. It could put on
the desk for your convenience.
