SMART-AVI DVN-4PRO Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format DVI-D Single Link, DVI 1.0
Maximum Pixel Clock 165 MHz
Input Interface (4) DVI-D 29-pin
Output Interface (1) DVI-D 29-pin
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
AUDIO
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
USB 2.0, 1.1, and 1.0
Signal Type
w/ internal hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for KVM Devices;
Output Interface
(2) USB 2.0 Type A Transparent
CONTROL
Tactile Switch,
Front Panel
with Seven Segment Display
Via Control @ 9600 bps N,8,1,
RS-232
No Flow Control
Hot Keys Via Keyboard
OTHER
Power External 100-240 VAC/ 5VDC4A
Dimensions 12.63"W x 5.75"D x 1.875"H
Weight 3.2 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4x1 DVI-D, USB 2.0,
DVN-4PRO-S 1
Audio Switch
PS5VDC4A 1 PS5VD4A Power Supply
Quick Start Guide 1

NOTICE

The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

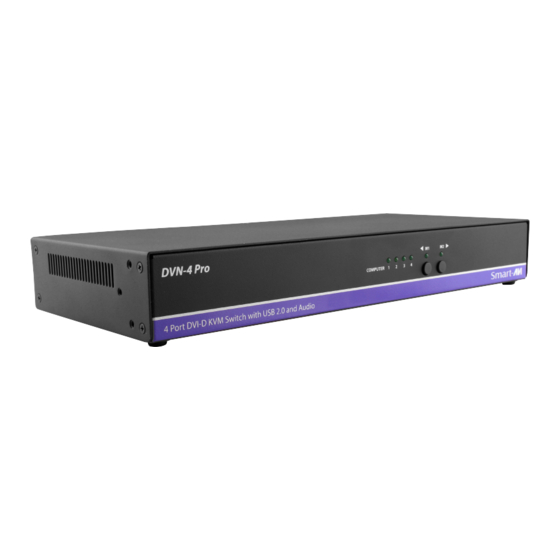

DVN-4PRO
4-Port DVI-D KVM Switch
with USB 2.0 and Audio
ACCESS AND CONTROL
4 COMPUTERS USING
ONLY ONE USB KEYBOARD,
USB MOUSE AND
DVI-D MONITOR
Quick Start Guide
