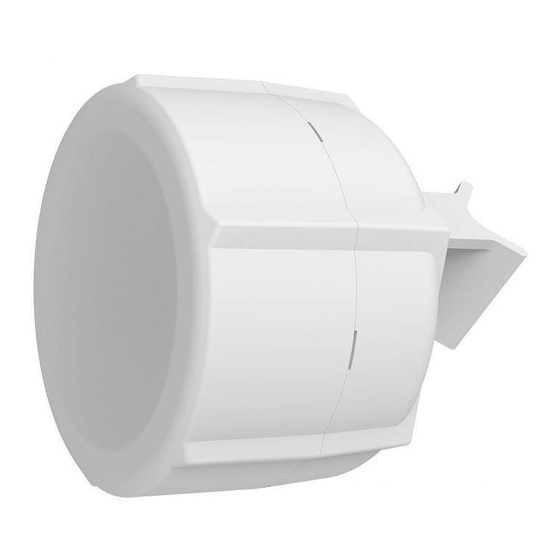

MikroTik RBSXTR&R11e-LTE6 Quick Manual
Hide thumbs Also See for RBSXTR&R11e-LTE6:

Advertisement

Quick Links

EN - English - Quick Guide:
ÍslenskuThis device needs to be upgraded to RouterOS v7.10.1 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.
This "SXTR kit" series Quick Guide covers models: RBSXTR&R11e-LTE6 (SXT LTE6 kit), RBSXTR&R11e-LTE-US (SXT LTE kit), RBSXTR&R11e-LTE (SXT LTE
kit), RBSXTR&R11e-4G (SXT 4G kit).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products are at
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
This device accepts input of 24 V DC, 1.2 A power adapter connected to PoE, which is provided in the original packaging of this device. When using a PoE injector
and a different power source, the range is 12-57 V (direct current).
First steps:
Open the Ethernet port door;
Insert the SIM card into the slot, with the chip facing UP;
Connect the device to the included PoE injector with Ethernet cable to the data+power end;
Connect the data end of the PoE injector to the computer;
Connect the power adapter to the PoE injector;
Open the
https://192.168.188.1
User name:
admin
, and there is no password
Use the check for update option to upgrade the device to the latest version. You must have an active SIM card with available data;
The device will reboot;
Connect again and in the
QuickSet
Secure your device and set a strong password.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correc
t hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
To avoid contamination of the environment, separate the device from household waste and dispose of it in a safe manner, for example, in designated areas.
Become familiar with procedures for properly transporting the equipment to designated collection points in your area.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 120 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Unijas 2, Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.10.1 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това кратко ръководство обхваща модела:  RBSXTR&R11e-LTE6 (SXT LTE6 kit),  RBSXTR&R11e-LTE-US (SXT LTE kit),  RBSXTR&R11e-LTE (SXT LTE
kit), RBSXTR&R11e-4G (SXT 4G kit).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
https://mt.lv/um
for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
in your web browser;
 (or, for some models, check user and wireless passwords on the
menu set your country, to apply country regulation settings;
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

https://mikrotik.com/products
at https://mt.lv/help
https://mt.lv/um-bg
 за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
sticker);

.
Или сканирайте
