Operating instructions

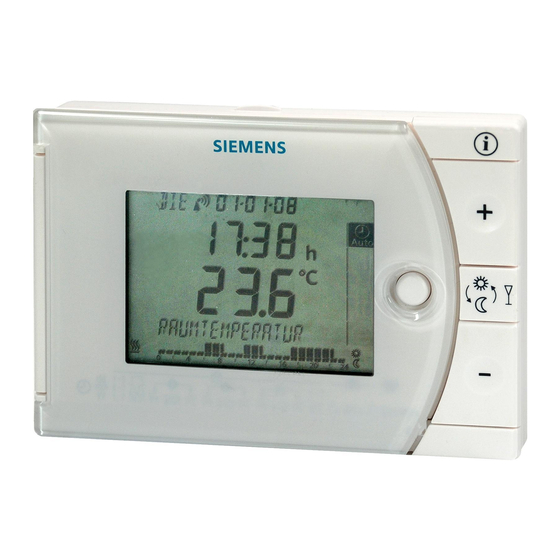

REV24.. - 7-day room temperature controller for the right temperature at the right time. All factory
settings already provide optimal living comfort. You can easily adjust the controller to your needs
with the user-assisted clear-text display and program selection slider.
Note the following for placing the controller:
· Make sure no other influencing factors influence the controller's temperature sensor (no solar radiation and
other heat or cold source influences).

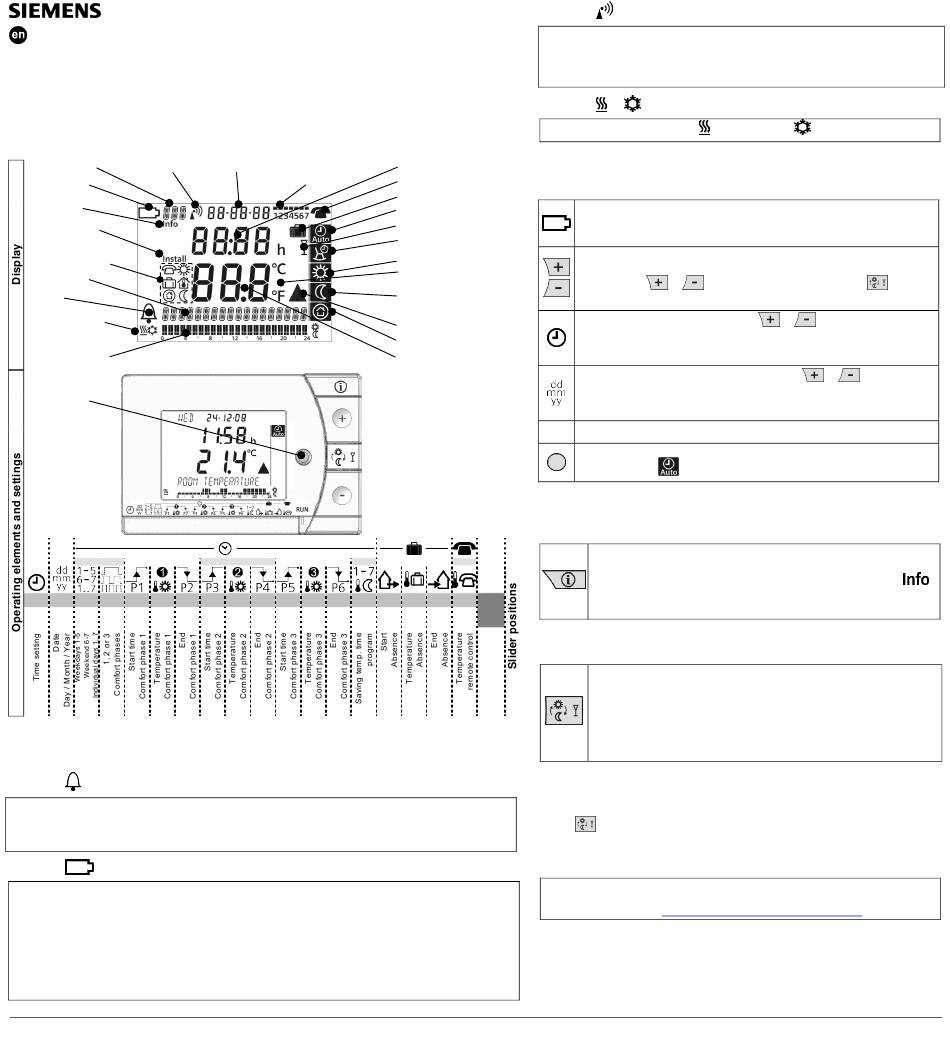

Day of week Radio Clock
active
Low battery
Info mode
Installer mode
Temperature
setpoint symbols
Text display
Alarm
Cooling mode /
Heating mode
Switching pattern
with time cursor
Operating mode
selector:
- Automatic
- Exception day
- Comfort mode
- Energy saving
mode
- Protection
mode
1 2 3 4 5 6 7
If the selected operating mode does not support the setting, the time display shows PASS.
Special symbols displayed
The controller display can show the following special symbols:
Is symbol displayed ?
The alarm indicates an error!
Press the Info button and check the error message (e.g. radio clock signal, radio connection to receiver, etc.).
Contact a specialist as needed.
Is symbol displayed ?
This symbol tells you that you must exchange the batteries within the next 3 months.
Insert 2 new alkaline batteries type AA, 1.5 V as follows:
Remove the controller from the mounting base; open the battery compartment on the rear; remove the old
batteries; insert the new batteries and reinsert the controller in the base.
Caution: Time and date are retained for max. 1 minute.
(All other settings are fixed and remain unchanged!)
Dispose of the batteries as per regulations.
B2205en
Date Setting: 1-5, 6-7, 1..7/
Reading: 1..7
Info button
Increase values, set time or
make a selection
Change between Comfort and
energy saving temperature
(active until next switching time)
and Party function
Decrease values, set time or
make a selection
Program selection slider
8 9 10 11 12 13 14 15 16 17 18
REV24..
Is symbol
The radio clock symbol only appears if the receiver is set up and activated to receive the
time signal from Frankfurt (Germany). A permanent symbol indicates that both time and
date of the controller are synchronized to Frankfurt (DCF77).
The symbol flashes if the signal is not received for more than 1 week.
Is symbol
The controller is in "heating mode"
Commission the controller and quick start
Time display
The controller contains a factory-set comfort switching pattern and temperature values.
Remote control active
Proceed as follows for initial commissioning:
Holiday mode
Remove the controller from the mounting base and pull off the black insulating
Automatic mode
tape from the 2 batteries: The controller turns on automatically. Reinsert the
Party mode active
controller in the mounting base.
Exception day mode
After startup, a welcome message appears for ca. 2 minutes. Press a button
Continuous comfort mode
to interrupt the message. Language selection starts with "ENGLISH" (factory
°C or °F
setting). Press
Continuous energy
the slider to accept your language.
saving mode
Heating On /
Slider in position 1 (time setting): Press
Cooling On
Note:
Protection mode
Temperature display
Slider in position 2 (date: day/month/year): Press
Note:
RUN Move the slider to the very right to position RUN (only way to close the cover).
Set the operating mode with the operating mode selector.
Factory setting is
Fold the operating instructions and reinsert in the mounting base.
Turn on display lighting, check error messages or other important
information
RUN
Change the temperature level in the time switch program,
or are you not at home for a while?
Tips to save energy without reducing comfort
·
Heat your rooms to max 21 °C.
·
Use
·
Air out your rooms briefly, but with wide-open windows.
RED regulation
Siemens Switzerland Ltd. declares that the radio equipment type REV24.. is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at www.siemens.com/download?A6V10223314.
29.03.2018
displayed ?
or displayed ?
or "cooling mode"
or until your language appears. Press
You do not need to enter the time when DCF77 receiver for the
time signal from Frankfurt (Germany) is equipped.
You do not need to enter the date when DCF77 receiver for the
time signal from Frankfurt (Germany) is equipped.
.
Press the Info button once to activate display backlighting. Backlighting
goes off automatically after a short time.
Continuing to press the Info button activates the information display:
is lit. The device first shows pending error messages and then important
information (e.g. switching programs, ...).
In the time switch program, press this button to change from the current
temperature level to the next and back.
Quickly activate energy saving temperature when you leave the apartment
briefly to save energy.
The change appears on the display. It is valid only until the next switching
time.
to switch to energy saving temperature even if you are absent only briefly.
.
or move
or to set the time.
or to set the date.
