Protech Systems SA-5872 Quick Reference Manual

SA-5872
Quick
Reference
Guide

Specifications

System
nd
CPU Support Intel ® 2 Gen. Core™ i7/i5/i3, Pentium, Celeron
Chipset Intel ® PCH H61
Memory Support 2 x DDR3 1333/1066 MHz DIMM socket (up to 16GB)
Power Supply ATX 220W
Operating System Microsoft Windows 7/XP
Drive Bay 2 x 2.5" SATA HDD
1 x Slim DVD-ROM
BIOS AMI BIOS
System Weight 5 kg (11 lb)
Dimension (WxHxD) 300 x 94 x 270 mm (11.8" x 3.7" x 10.6")
Certificate FCC/CE
I/O Ports
USB 4 x USB 2.0
Serial Port 3 x COM port
(COM1/3 for RS-232 only, COM2 for RS-232/422/485)
Parallel Port 1 x Bi-direction, SPP/EPP/ECP
Keyboard/ Mouse 2 x PS/2
LAN 2 x RJ45, 10/100/1000Mbps, Wake-on-LAN
(Intel ® 82579V & 82583V)
VGA 1 x VGA
Audio Line-in/Line-out/Mic, Realtek ALC888S High Definition
Expansion Slot 1 x Mini-PCIe
1 x PCIe 16x
Environment
Operating Temp. 0 ~ 40°C (32 ~ 104°F)
Storage Temp. -20 ~ 60°C (-4 ~ 140°F)
Humidity 20 ~ 90%
Ver. Q1
All Rights Reserved. Copyright 2013
SA-5872
®

Packing Checklist

If you discover any item below damaged or lost,
please contact your vendor.
SA-5872
This Quick Reference Guide
Driver/Manual CD
Mini-Jumper (2.0mm)
Hex Washer Head Screw

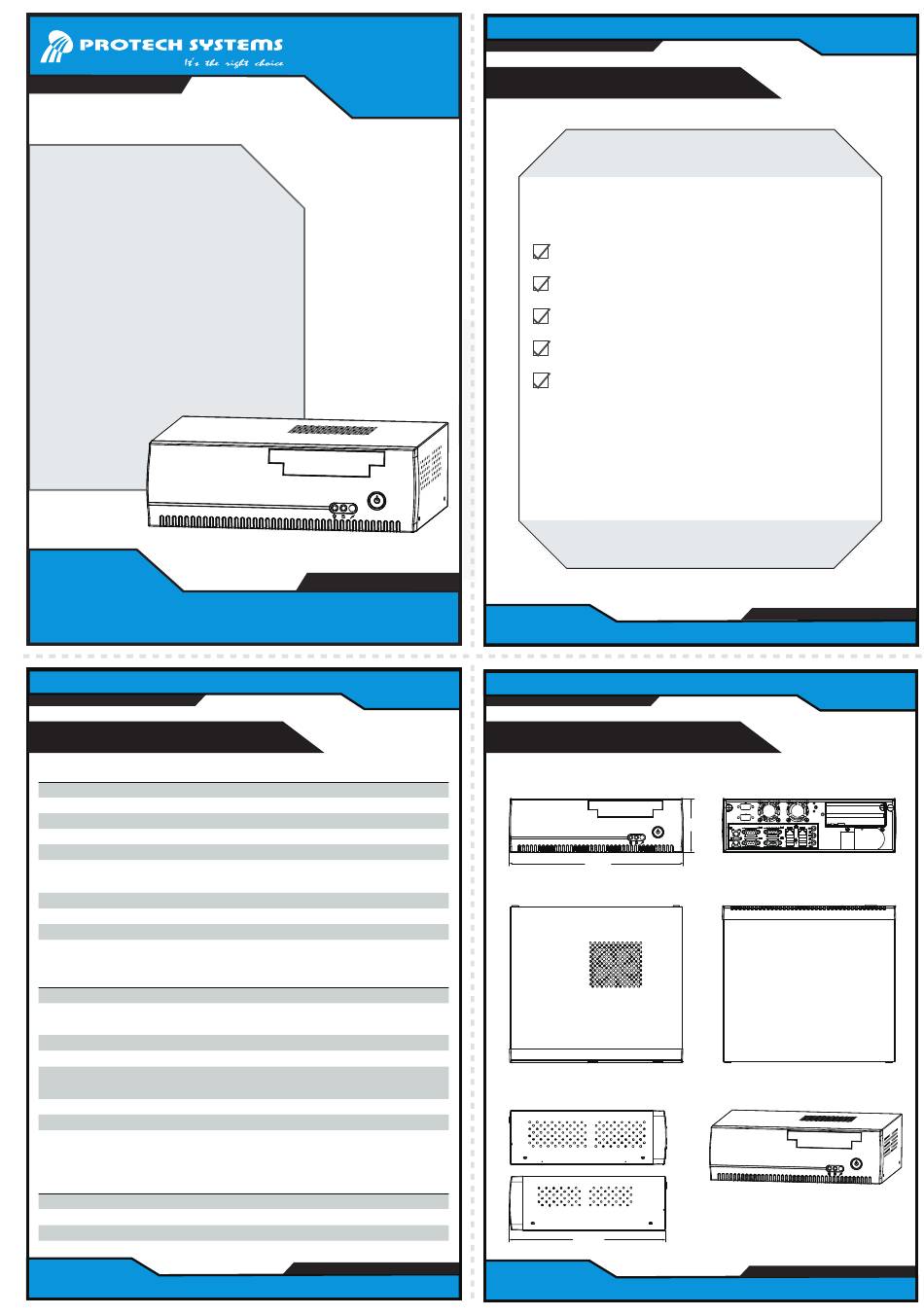

System View
Front View
304.2
Top View
Side View
272.78
SA-5872
x1
x1
x1
x6
x2
SA-5872
Rear View
94.5
Bottom View

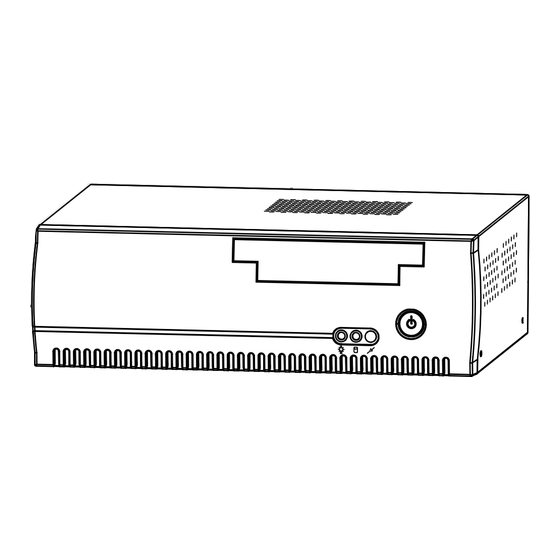

Quarter View
Unit: mm
