ST-1942
Quick
Reference
Guide

Specifications

®
th
CPU Support
Intel
Core 4
Gen. i3 / i5 / i7 processors (LGA1150, max 65W TDP)
i7-4770S, i3-4340TE, i3-4330TE, Celeron G1820TE
Chipset
Intel Q87
2 x 204p DDR3 SO-DIMM, socket up to 16GB
DRAM
Microsoft Window 7/ Window 8
OS Support
Power Supply
FSP Flex ATX 220W
Drive Bays
2 x 2.5" SATA HDD & 1 x slim DVD-ROM
SATA
SATAIII x 4
System Dimension
(W)300 x (H)94 x (D)270 mm
Watchdog
1~255 sec
RAID function
RAID 0/1/5/10
Speaker
Internal buzzer
1 CPU Fan + 1 system Fan + twin Front System Fans
Fan
PXE
Available (disable in BIOS as default)
POWER BUTTON
1 x (option)
LED Indicator
2 x (Power LED + HDD LED)
USB
2 x USB 2.0 cable by pin header
USB
4 x USB3.0 + 2 x USB2.0
Keyboard / Mouse
2 x PS/2 port (wake up system from S1 to S4)
Serial Port
4 x COM port, COM 2 for RS232/422/485
selectable)
Display
1 x DVI-I / 1x DVI-D / 1 DP , Support 3 independent display
LAN
2 x Giga LAN (RJ45) , support Wake-on-LAN
LAN1: Intel I217LM/V (Clarksville) / LAN2: Intel I210-AT (Springville)
Audio
Realtek ALC888S-VD2-GR HD Audio codec, Mic x 1, line out x 1, R channel x
1 + L channel x 1 , Volume controller x 1 (Amplifier bypass by jumper setting)
DC out
1x 8p(Molex micro-Fit 3.0) housing DC 5V&12V
USB
Additional 2 x USB 2.0 cable by pin header (option)
Expansion Slot
PCIe/PCI slot
1 x PCIe 16x + 1 x PCI (SR-5076RA-R2N) or 2 x PCI slot (SR-5076RA-R3N)
(Riser card)
Operation Temp
.
0°~ 40°C
-20 to 60°C
Storage Temp.
Humidity
20~90%
RoHS
RoHS Version
DVI to VGA adapter DVI to VGA adapter P/N: 10-625-04410123
All Rights Reserved. Copyright 2014
ST-1942
System
CPU Support
Chipset
DRAM
OS Support
Power Supply
Drive Bays
SATA
System Dimension
Watchdog
RAID function
Speaker
Fan
PXE
POWER BUTTON
LED Indicator
USB
USB
Keyboard / Mouse
Serial Port
Display
I/O port (front)
LAN
Audio
DC out
USB
PCIe/PCI slot
(Riser card)
Operation Temp.
(COM1/2 support +5/+12V/RI
Storage Temp.
Humidity
RoHS
DVI to VGA adapter DVI to VGA adapter P/N: 10-625-04410123
Environment
Accessary

Packing Checklist

If you discover any item below damaged or lost,
please contact your vendor.
ST-1942
Driver/Manual CD
This Quick Reference Guide
Mini Jumper (2 mm)
Power Cord
DVI 29P To D-Sub 15P Connector
Ver. Q4

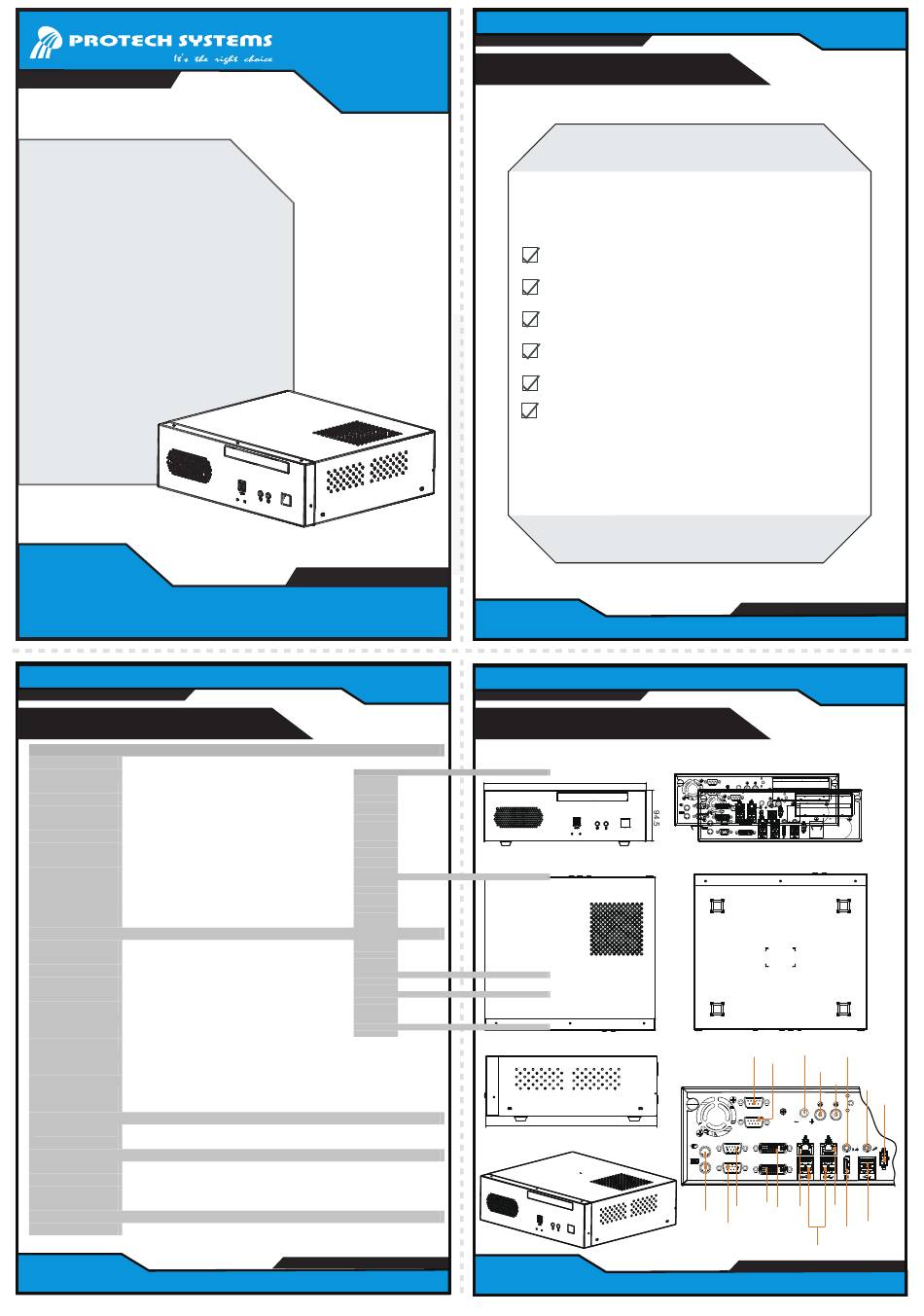

System View

Front View
System
300.2
®
th
Intel
Core 4
Gen. i3 / i5 / i7 processors (LGA1150, max 65W TDP)
i7-4770S, i3-4340TE, i3-4330TE, Celeron G1820TE
Intel Q87
2 x 204p DDR3 SO-DIMM socket up to 16GB
Win 7 / Win 8
FSP Flex ATX 220W
2 x 2.5" SATA HDD & 1 x slim DVD-ROM
SATAIII x 4 for Q87
(W)300 x (H)94 x (D)270 mm
1~255 sec
RAID 0/1/5/10 for Q87
Internal buzzer
Top View
1 CPU Fan (4 pin header) + 1 system Fan (3 pin header) + twin Front System
Fans (4 pin header)
With PXE (disable in BIOS as default)
I/O port (front)
1 x (option)
2x (Power LED + HDD LED)
2 x USB 2.0 cable by pin header
4x USB3.0 + 2x USB2.0 (Q87);
2 x PS/2 port (wake up system from S1 to S4)
4 x COM port, COM 2 for RS232/422/485 (COM1/2 support +5/+12V/RI
selectable)
1 x DVI-I / 1x DVI-D / 1 DP , Support 3 independent diaply for Q87
2 x Giga LAN (RJ45) , support Wake-on-LAN
LAN1: Intel I217LM/V (Clarksville) / LAN2: Intel I210-AT (Springville)
Realtek ALC888S-VD2-GR HD Audio codec, Mic x 1, R channel x 1 + L
channel x 1, Volume controller x 1
1x 8p(Molex micro-Fit 3.0) housing DC 5V&12V
Additional 2 x USB 2.0 cable by pin header (Q87) (option)
Expansion Slot
1 x PCIe 16x + 1 x PCI (SR-5076RA-R2N) or 2 x PCI slot (SR-5076RA-R3N)
Environment
0°~ 40°C (with customer graphic card GT 630)
-20 to 60°C
20~90%
RoHS Version
Accessary
Side View
269.75
Quarter View
ST-1942
x 1
x 1
x 1
x 6
x 1
x 1
ST-1942
Rear View
Audio
R
Volume
L
Controler
COM3
Audio
Volume
R
L
COM4
Controler
COM2
DVI-D
COM3
COM1
DVI-I
COM4
COM2
DVI-D
COM1
DVI-I
Bottom View
I/O View
Volume
Controller
COM3
Line Out
COM4
Audio R
Channel
Audio L
Channel
DVI-I
COM 2
LAN1
LAN2
DVI-D
PS/2 KB
& MS
COM1
DP1
USB3.0
MIC In
DC Out
USB 2.0
