Protech Systems BC-K200 Quick Reference Manual

BC-K200
Quick
Reference
Guide
Specifications
System
CPU Support LGA1151 socket for Intel
Pentium ® / Celeron
Xeon ® E3-1200 V6/V5 server CPU
CPU List Xeon : E3-1275 V6, E3-1275 V5, E3-1225 V5, E3-1268 V5
®
7th Core TM : i7-7700(T), i5-7500(T), i3-7101E(TE)
TM
6th Core : i7-6700(TE), i5-6500(TE), i3-6100(TE)
Pentium : G4400(TE)
®
Celeron : G3930E(TE), G3900E(TE)
®
Chipset Intel Q170 / H110 / C236
®
Memory Support Up to 4 x DDR4 2133MHz DIMM(H110 SKU only 2 DIMM)
Power Supply Flex ATX 300W power
O.S. Support Windows 10 IoT Enterprise
®
Dimensions (WxHxD) 428.2 x 188 x 310.0mm
Certificate CE / FCC
I/O Ports
Drive Bay for Storage 2 x 2.5" HDD/SSD (default) or 1 x 3.5" HDD
1 x Slim ODD
USB 4 x USB 3.0
Serial Ports 2 x COM, COM2: RS232/422/485 auto flow control
LAN Dual LAN (2 x RJ45)
LAN1: Intel
®
LAN2: Intel
®
Fan 1 x CPU fan / 2 x system fans ((with iron mesh & air filter)
Keyboard/Mouse 2 x PS/2 connector for keyboard & mouse
Audio Mic In / Line In / Line Out
Expansion Bus PCIeX16 Riser Card + PCIeX16 Extended Card (1 set)
(option) PCIeX4 to PCI Riser Card
Display
VGA 1 x VGA up to 1920 x 1200 @60Hz
DVI-D 1 x DVI-D up to 2560 x 1600 @60Hz
Others
Notification LED 1 x Power LED / 1 x HDD LED
Button 1 x Power Button / 1 x Reset Button
Environment
Operating Temp. 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C ~ 80°C (-4°F ~ 176°F)
Humidity 20% ~ 90% (non-condensing)
All Rights Reserved. Copyright 2020
BC-K200
7th / 6th Gen. Core™ i7 / i5 / i3 /
®
® desktop CPU
PHY 219LM (GbE)
LAN 210AT (GbE)
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
BC-K200
This Quick Reference Guide
Driver/ Manual DVD
Mini Jumper (2.0 mm)
Ver. Q1

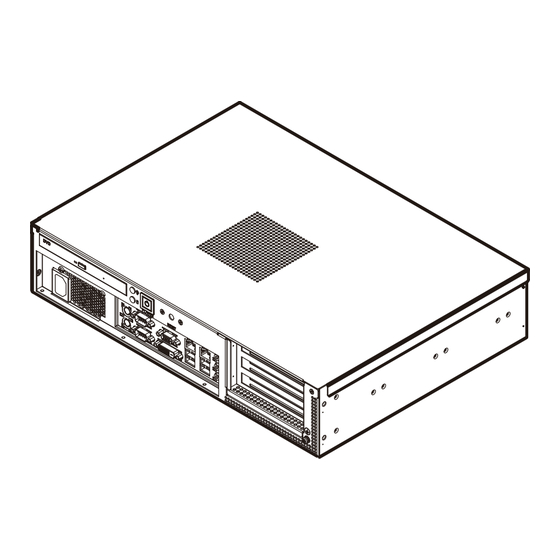

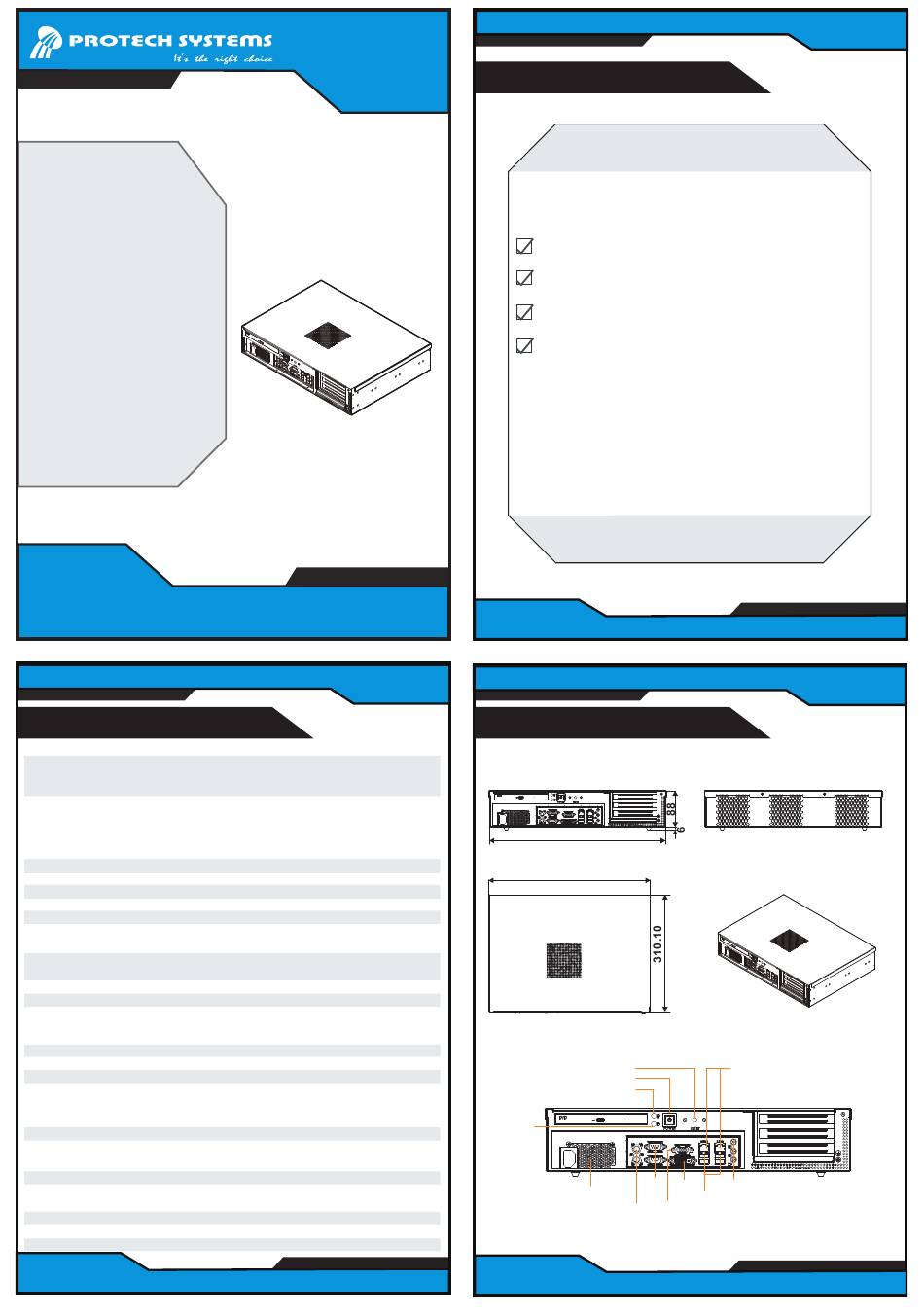

System View
Front View
426
Top View
428.20
I/O Panel View
HDD LED
Power Supply
Rear View
Quarter View
RJ45 10/100/1000
Reset Button
LAN Connector
Power Button
Power LED
COM2
Audio
DVI-D
COM1
USB Connector
VGA
PS/2 KB/
MS Connector
BC-K200
x 1
x 1
x 1
x 6
BC-K200
Unit: mm
