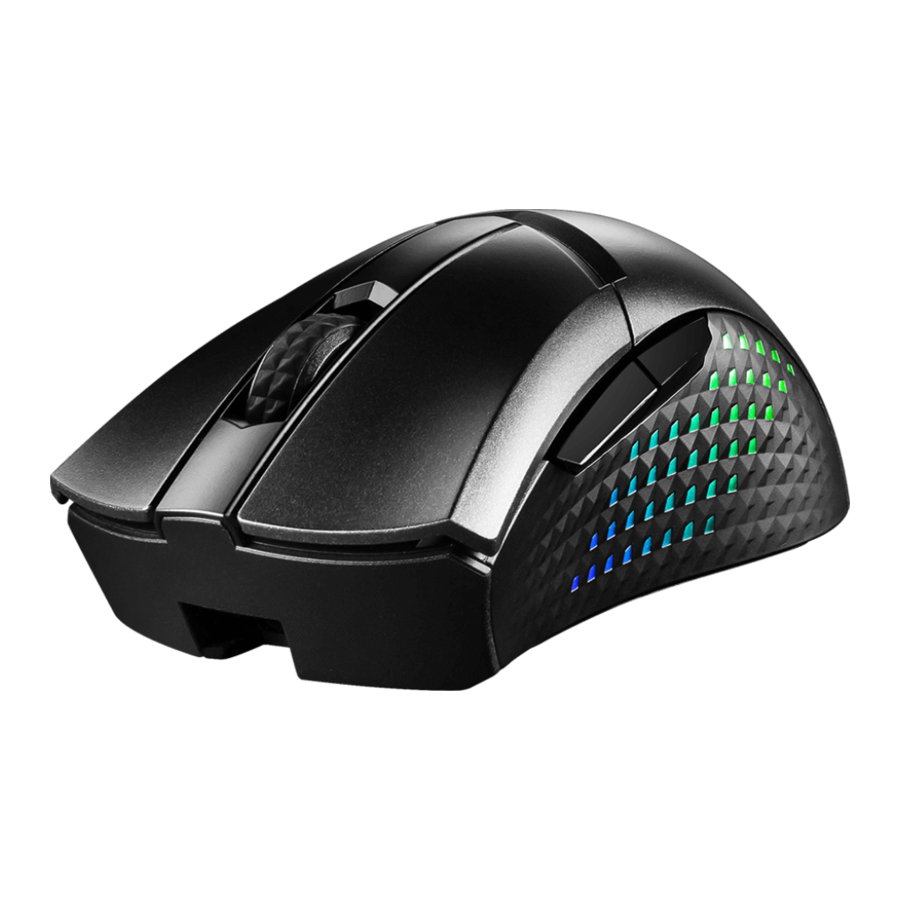

MSI CLUTCH GM51 LIGHTWEIGHT WIRELESS 8ZB5 - Gaming Mouse Manual

Overview

1. Left Button
2. Right Button
3. Scroll Wheel
4. Side Button 1 (Default Setting: Next Page)
5. Side Button 2 (Default Setting: Previous Page)
6. MSI Diamond LightGrip
7. Dragon RGB LED Light
8. Portable FriXionFree Cable
9. DPI Switch
10. Slider Switch: 2.4G Mode/Bluetooth Mode/Off
11. Optical Sensor
12. Charging Port
13. PTFE Skates
14. Wireless USB Dongle
15. Charging Pin (For charging the CLUTCH GM51 LIGHTWEIGHT WIRELESS)
16. Dongle Port (Used when MSI Dongle is inserted)
17. USB Type-C Connector
18. Charger Anti-Slip Strip

LED Indicators Adjustment

Use the following buttons in combination repeatedly until the preferred selection is made.

• DPI Switch + Left Button = Fade Off Speed
• DPI Switch + Right Button = adjust the LED brightness levels
• DPI Switch + Scroll Wheel = select a LED Lighting Effect
• DPI Switch + Side Button 1 = adjust the Lighting Effect Speed
• DPI Switch + Side Button 2 = select a LED Color

※ For more information, please visit MSI official website.

Bluetooth Paring

1. Turn off the power
2. Press and hold the DPI button
3. Set the Slider Switch to Bluetooth mode, keep holding the DPI button for 5 secs then release it to activate the pairing mode.
4. Activate Bluetooth on your device and select "MSI GM51" from the list of devices found.

* Support Microsoft Swift Pair.

5-level DPI Presets

The higher DPI will be recommended to the monitors with higher resolution. Press repeatedly the DPI switch located underneath the mouse until the preferred selection is made.

※ Maximum DPI: 26000 (by software)

Battery Capacity Indicator

Read the color of the Dragon RGB LED indicator to learn the battery capacity of the mouse.

※ Battery Percentage (%) can also be found in DragonCenter / MSI Center

※ Rated Voltage / Current: 5V 600mA; Maximum Operating Temperature: 40°C

※ For more information, please visit MSI official website
