MSI M98 Manual

CONTENTS
• MSI Bluetooth Mouse
• USB dongle
• User manual

INSTALLING HARDWARE

General Installation:
2.4GHz Mode:
(White LED is in 2.4GHz mode)
Step 1: Remove the back cover and insert two AAA batteries.
Step 2:
Remove the USB dongle from the mouse and plug directly
into your notebook's USB port.
Step 3:
Switch the mouse's ON/OFF button to ON.
The mouse will automatically connect to the Laptop.
MOUSE
2.4GHz Mode connection repair
(White LED is in 2.4GHz mode)
If the mouse experiences connection issues, follow this simple procedure:
Step 1: Switch the mouse's ON/OFF switch to ON.
Step 2: Hold the Mode Switch Button until white LED flashes
Step 3: Plug the dongle into the notebook USB port, the LED indicator will be off once pair is successful.
DPI: Adjustment (Default 2000):
Press the middle & left buttons simultaneously to adjust DPI (1000 / 1500 / 2000).
Sleep Mode:
The mouse will enter sleep mode when unused for 8 minutes.
Move the mouse to end sleep mode.

TROUBLE SHOOTING GUIDE

Malfunctions may be caused by reasons such as a dead battery, incorrect battery installation, or an unsuccessful pairing.
Try the following troubleshooting methods:
• Check that the ON/OFF switch at the bottom of mouse is set to ON.
• Check that the batteries are installed in the correct orientation(+/-).
• Restart your Laptop and re-pair your mouse as per instructions above.
• Switch your mouse to OFF and back to ON. The LED status lights should illuminate briefly
- if they do not, please change batteries.
• Is the USB dongle securely plugged into a USB port? Try moving the dongle to a port closer to the mouse.
• Remove any metal objects between the USB dongle and the mouse that may interfere with reception.
• Try using the mouse on a different surface.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

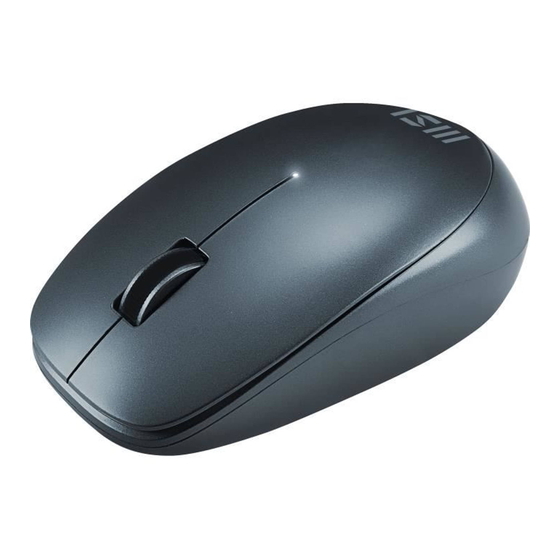

MSI Bluetooth Mouse
无线蓝牙鼠标 / 無線藍芽滑鼠

SYSTEM REQUIREMENTS

• BLE Compatibility
Windows8, 10 or later
Mac OSX 10.5 or later
Android 4.3 or later
Model:M98
Product Name: MSI Bluetooth Mouse
FCC ID: 2ABVN-M98
IC: 24513-M98
Rating: DC 3V 6mA
Operating Temperature:-25~55℃
Bluetooth Mode:
(Blue LED is in Bluetooth mode)
Step 1: Remove the back cover and insert two AAA batteries.
Step 2: Switch the mouse's ON/OFF button to ON.
Press mode switch button and blue LED indicator, it means Bluetooth mode.
Step 3: Then hold the mode switch button until blue LED flashes,
then search for "MSI Bluetooth Mouse" in your notebook and connect to pair.
The LED indicator will be off once pair is successful.
• 2.4G Compatibility
Windows7, 8, 10 or later
Mac OSX 10.5 or later
Model:M98D
Product Name:
Radio Frequency: 2.4GHz SRD
Frequency Band: 2405 MHz-2470 MHz
Max. RF Power: -23.51 dBm
Radio Frequency: Bluetooth
Frequency Band: 2402 MHz-2480 MHz
Max. RF Power: 1.93 dBm
Radio Frequency: 2.4GHz SRD
Frequency Band: 2402 MHz-2480 MHz
Max. RF Power: -2.18 dBm
Mode Switch Button
LED Indicator on Mouse:
Status
Pairing Flashing
(3-8 seconds)
2.4G Wireless Dongle
（BLE / 2.4GHz）
Description
To indicate the
pairing process
when the mouse
is ON
