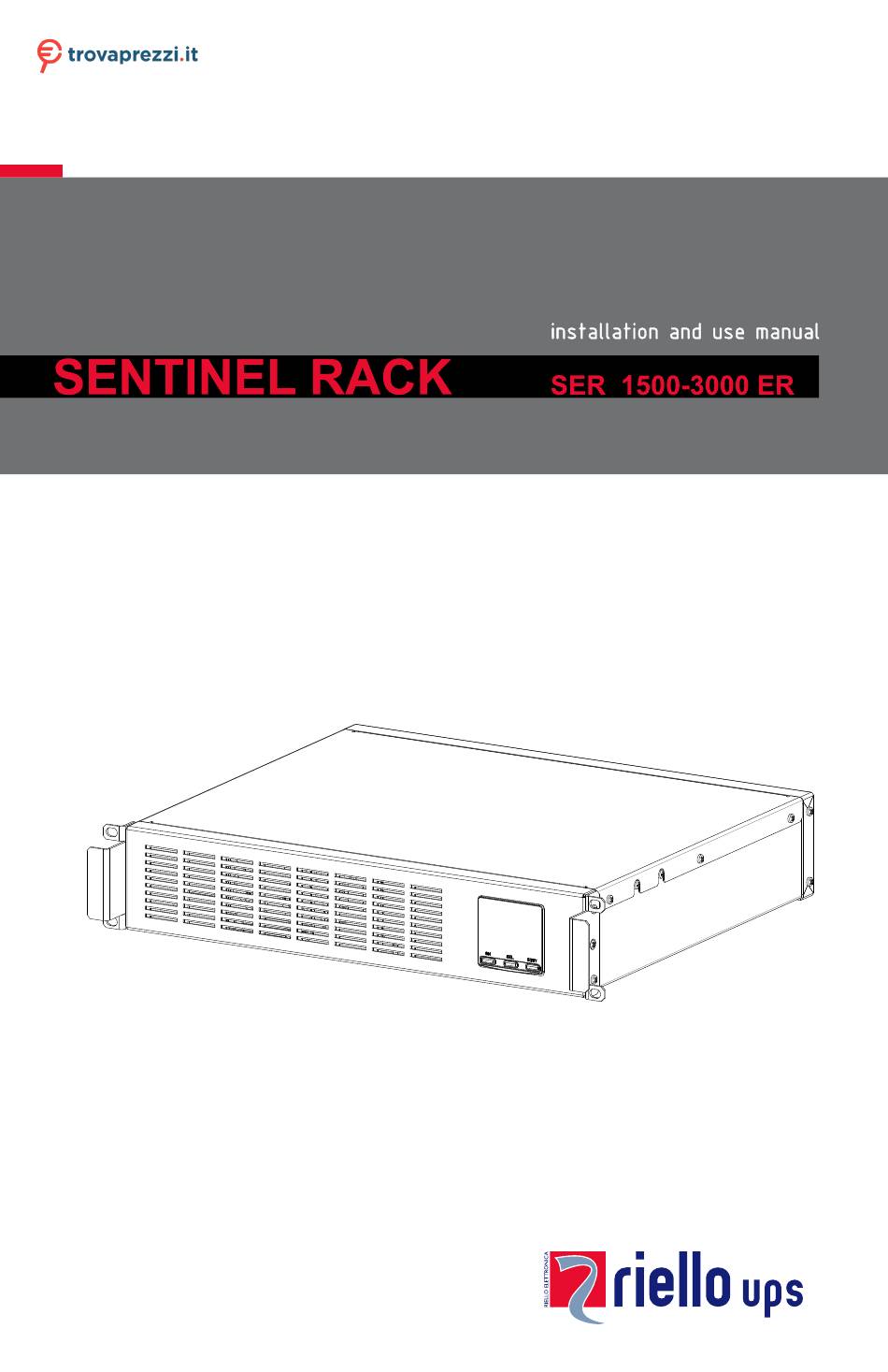

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Riello Sentinel Rack 1500 VA o cerca il tuo prodotto tra le migliori offerte di Gruppi di Continuità...
- Page 2 NTRODUCTION Congratulations on purchasing a UPS Sentinel Rack product and welcome to Riello UPS! To use the support service offered by Riello UPS, visit the site www.riello-ups.com Our Company is a specialist in the design, development and manufacturing of uninterruptible power supplies (UPS).
-
Page 3: Table Of Contents
ONTENTS PRESENTATION UPS V IEWS RONT VIEW EAR VIEW ISPLAY PANEL VIEW ATTERY ACCESSORY NOT SUPPLIED WITH THE UPS EAR VIEW INSTALLATION NITIAL CONTENT CHECK NSTALLATION ENVIRONMENT ATTERY OX INSTALLATION ETTING THE NOMINAL BATTERY CAPACITY NSTALLATION ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME WITCHING ON FROM THE MAINS WITCHING ON FROM THE BATTERY WITCHING OFF THE... - Page 4 TROUBLESHOOTING LARM CODES AULT TECHNICAL DATA...
-
Page 5: Presentation
PRESENTATION SENTINEL RACK uses ON-LINE double conversion technology, resulting in the highest levels of reliability and maximum protection for critical loads such as servers, IT applications and Voice/Data. It is possible to use one or more autonomy expansion units known as BATTERY BOXES (optional accessories) with the same dimensions and aesthetic appearance as the UPS (*). -
Page 6: Ups Views

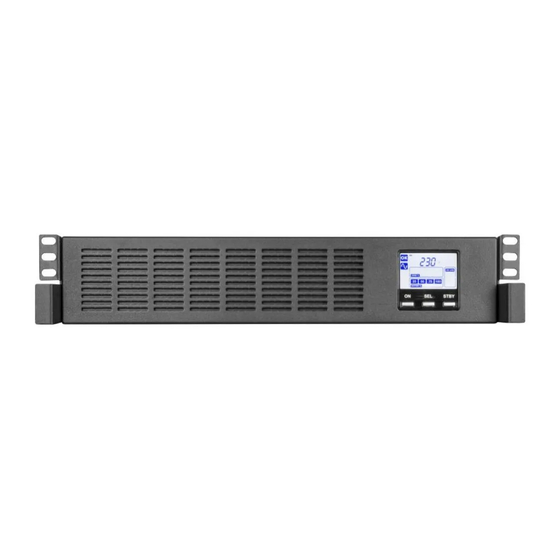

UPS V IEWS RONT VIEW LCD Display Airshaft windows... -
Page 7: Rear View
EAR VIEW Model 1500VA Model 3000VA ER Communication port RS232 I/O switch USB communication port Communication Card Slots Remote control terminal board Battery expansion connector Cooling fans IEC 16A input plug IEC 10A Input plug IEC 16A output socket IEC 10A output socket... -
Page 8: Display Panel View
ISPLAY PANEL VIEW “SEL” button (Select) Battery charge indicator “ON” button Load level indicator “STAND-BY” button Configuration area Regulation operation Maintenance request Mains operation Timer Battery operation Measurement display area Load powered by bypass Stand-by / alarm... -
Page 9: Battery Box ( Accessory Not Supplied With The Ups )
ATTERY ACCESSORY NOT SUPPLIED WITH THE UPS The BATTERY BOX is an optional accessory for this range of UPS (same dimensions and aesthetic appearance). The BATTERY BOX contains batteries which allow the operating time of the uninterruptible power supplies to be increased during extended blackouts. -
Page 10: Installation
INSTALLATION NITIAL CONTENT CHECK After opening the packaging, it is first necessary to check the contents. The package must contain: (*) Schuko power cable – IEC IEC 10A connection cables USB cable Safety manual + Download card Kit handles for rack installation Schuko power cable –... -
Page 11: Installation Environment
It is not possible to connect more than one UPS to a single battery box, or to several Battery Boxes connected in a series. To check the availability of a new version of the latest software, visit the website www.riello-ups.com. -
Page 12: Installation
NSTALLATION The sequence of operations to be followed in order to prepare the UPS or BATTERY BOX to a rack installation. BEFORE CARRING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT: THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER SUPPLY OR TO ANY LOAD. -
Page 13: Use
7) Check which operating mode is set on the display and, if necessary, see the “Configuring operating modes” paragraph to set the required mode. For advanced UPS configurations execute the software UPSTools which can be downloaded from the web site www.riello-ups.com. WITCHING ON FROM THE MAINS 1) Press the “ON”... -
Page 14: Display Panel Messages
ISPLAY PANEL MESSAGES This chapter describes, in detail, the various information that can be displayed on the LCD. STATUS MESSAGES ICON STATUS DESCRIPTION Fixed Indicates a fault Flashing The UPS is in stand-by mode Fixed Indicates regular operation Fixed The UPS is operating from the mains The UPS is operating from the mains, but the output voltage is not Flashing synchronised with the mains voltage... -
Page 15: Measurement Display Area
EASUREMENT DISPLAY AREA The front panel can be used to display important UPS operating information. When the UPS is switched-on, the display shows the main voltage value. To display a different measurement, press the “SEL” button repeatedly until the desired measurement appears. In the event of a fault/alarm (FAULT) or a lock (LOCK), the display will automatically show the type and code of the corresponding alarm. -
Page 16: Configuring The Operating Mode
ONFIGURING THE OPERATING MODE The area of the display shown in the figure displays the active operating mode and allows the user to choose other modes directly from the display panel. HOW TO PROCEED: To access the configuration area, hold down the “SEL” button for at least 3 seconds. ... - Page 17 REMOTE CONTROL TERMINAL BOARD The remote control terminal allows for implementation of the REPO function (Remote Emergency Power Off) and to remotely switch on/off the UPS. The UPS is provided by the manufacturer with the REPO terminals short-circuited. For installation remove the short circuit and connect to the device's normally closed contact In case of an emergency, if the stop device is used, the REPO control is opened and the UPS goes into stand-by mode and the load is completely disconnected.
-
Page 18: Software
2) Download the software from the web site www.riello-ups.com selecting the specific operating system. 3) Follow the installation program instructions. 4) For more detailed information please read the user manual which can be downloaded from www.riello-ups.com. ONFIGURATION SOFTWARE The UPStools software allows the configuration and full display of the status of the UPS via USB or RS232. -
Page 19: Ups Configuration
CONFIGURATION The table below illustrates all the possible configurations available to the user in order to best adapt the UPS for individual requirements. It is possible to perform these operations using the UPStools software. FUNCTION DESCRIPTION DEFAULT POSSIBLE CONFIGURATIONS 50 Hz Selects the nominal output ... - Page 20 FUNCTION DESCRIPTION DEFAULT POSSIBLE CONFIGURATIONS Selects permitted Low: 180 - 200 in 1V steps Bypass voltage Low: 180V voltage range for switching thresholds High: 264V High: 250 - 264 in 1V steps to the bypass Selects permitted Low: 180 - 220 in 1V steps Bypass voltage Low:...
-
Page 21: Communication Ports
Serial duplicator Ethernet network card with TCP/IP, HTTP and SNMP protocols JBUS / MODBUS protocol converter card PROFIBUS protocol converter card Card with relay isolated contacts To check the availability of other accessories, visit the website www.riello-ups.com. - Page 22 TROUBLESHOOTING Irregular UPS operation is not always an indication of a fault, and can be due to minor or easy-to-resolve issues It is therefore advisable to consult the table below as it contains information which is useful for solving the most common UPS problems.
- Page 23 The UPS in case of a permanent failure will be not able to supply the load. To ensure total protection of your equipment we suggest you install an ATS device (Automatic Transfer Switch) or an external automatic by-pass. For more information visit www.riello-ups.com...
- Page 24 LARM CODES Using a sophisticated self-diagnosis system, the UPS is able to check its own status for any anomalies and/or faults which may occur during normal operation and display them on the display panel. If there is a problem, the UPS signals the event by showing the code and the type of active alarm on the display (FAULT and/or LOCK).
- Page 25 Active commands: Indicates the presence of an active remote command. CODE DESCRIPTION Remote control 1 (Switch Off) Remote control 2 (load on bypass or manual bypass command) Remote control 3 (Switch On/Off) Battery test in progress LOCK alerts are normally preceded by an alarm signal and their scale leads to the powering-off of the inverter with the load being powered by the bypass line (this procedure is excluded for locks due to serious, persistent overloads and short circuits).
- Page 26 TECHNICAL DATA UPS MODELS SER 1500 SER 3000 ER INPUT Nominal voltage [Vac] 220 - 230 - 240 Maximum operating voltage [Vac] Nominal frequency [Hz] 50 - 60 Rated current (1) 15.5 BATTERY < 4h for 80% of the load Recharge time (standard versions) No.
- Page 27 BATTERY BOX MODELS JSER072PA5 Battery rated voltage [Vdc] 72Vdc Dimensions W x D x H [mm] 450 x 380 x 87 Weight [Kg] The "-" symbol replaces an alphanumeric code for internal use...
