NAVEE Electric Scooter N65 User Manual
The illustrations in this manual are for reference only, the actual appearance
shall be subject to actual product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N65 and is the answer not in the manual?

Questions and answers

Related Manuals for NAVEE N65

Summary of Contents for NAVEE N65

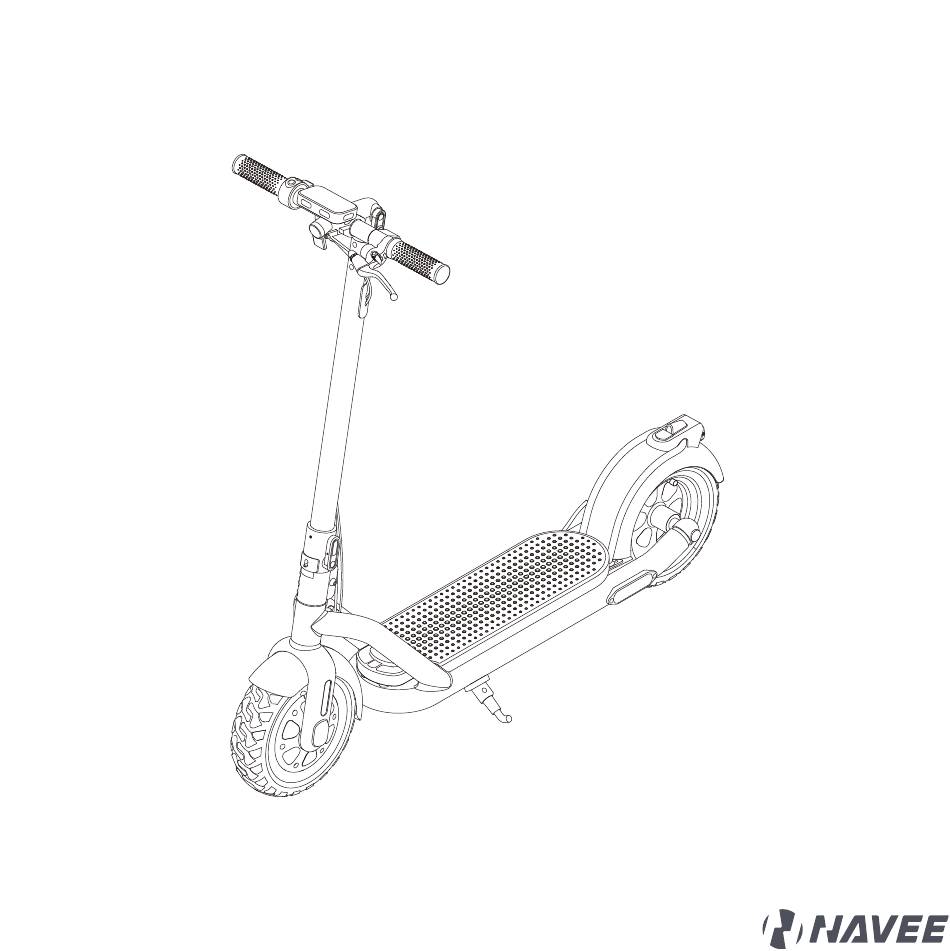

  • Page 1 NAVEE Electric Scooter N65 User Manual The illustrations in this manual are for reference only, the actual appearance shall be subject to actual product.

  • Page 2: Safety Instructions

    1. Safety Instructions IMPORTANT! Pelase read carefully before using the product and keep for future reference. For detailed e-manual, please visit www.naveetech.com This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental · capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 3 1. Safety Instructions the instructions in this manual will protect you and others to the greatest extent. The user should check the limits of use in accordance with the local regulations. Ride the scooter on the roads · or areas permitted by local regulations and laws and park it in the areas permitted. The maximum speed of the scooter is limited to 25 km/h.

  • Page 4: Environmental Instructions

    1. Safety Instructions Make sure the scooter is turned off when being transported and kept in its original packaging if possible. · In order to avoid accidental injuries such as electric shock and fire caused by improper use, please read the ·...

  • Page 5: Product Overview

    2. Product Overview Accessories Charger Manual M5 MS Wrench 8 mm Wrench Scooter Power Button Accelerator Gear Switch Dashboard Folding Unlock Head Light Switch Scooter Bell Brake Level Stem Pin Hole Rear Light Disc Brake Rear Wheel Folding Unlock Switch Side Reflector Deck Battery Compartment...

  • Page 6: Power Button

    2. Product Overview Power Button Press and hold the button for 3 seconds to turn the scooter on/off. When the scooter is on, press the button to turn on/off the headlight and tail light. Gear Switch When the scooter is on, press the button to switch the gears.
  • Page 7 3. Safety Instructions Note: Before using the product, please carefully read and abide by the following important safety information. 1. This product can only be used by one person. Do not 2. When riding this product, please wear a safety carry others at the same time while you are riding.
  • Page 8 3. Safety Instructions 5. Do not engage in any dangerous or unsafe actions 6. Do not attempt to ride over steps, curbs, or other during driving, such as riding with one leg or one hand. obstacles that have a height of more than 3 cm. Doing Make sure that both of your legs and hands are on the so may cause the scooter to overturn and thereby cause scooter at all times.
  • Page 9 3. Safety Instructions 9. In case of uneven roads or other poor road 10. Do not drive the scooter in snow, rain, mud, icy, or conditions, please slow down in time and attempt to wet roads under any circumstances. Do not drive the drive slowly and carefully, or else get off and push it scooter over obstacles (such as sand, loose gravel, until better conditions are available.
  • Page 10 3. Safety Instructions Safety tips: Do not hang or place any objects on its handlebars and body while riding. 13. Do not use this product beyond the maximum load 14. Users should ride safely and legally in strict (120 kg / 264.6 lbs) as specified by this product. accordance with local laws and regulations.
  • Page 11 4. Assembly (Deployment Steps) 1. Open the kickstand, pull the pin in the 2. After erecting the stem, turn the folding handle direction of the arrow. 180° counterclockwise to lock. Folding Handle 3. Press and hold the release button, and 4.

  • Page 12: Folding Steps

    5. Folding Steps The scooter MUST be turned off before being folded. Since the product can be folded, for your protection and safety, do not step on or turn the folding safety lock when riding. 1. Press and hold the release button, and turn 2.
  • Page 13 6. Carry Hold the stem with either one hand or both hands to carry. 7. Charging Note: Please always use the original charger. If damaged, please contact the manufacturer to replace. 1. Open the rubber protector 2. Plug the charger into 3.

  • Page 14: Correct Riding Method

    (inclusive). 7. You should not drive on uneven ground. If there are any obstacles, please stop riding, fold up N65, or walk across the blocked passage with product. 8. Avoid riding in rainy or snowy weather, or at night, and keep away from cars to prevent sudden stops or accidents.

  • Page 15: Riding Instructions

    9. Riding Instructions Riding Preparation 1. Choose an open space suitable for riding. 2. Ride on flat and smooth roads. 3. Unfold the product according to the instructions and wear protective equipment. 4. Wear comfortable shoes that fit your feet well, yet are suitable for activity. 5.

  • Page 16: Maintenance

    Check the tire pressure every month, and inflate the tires if the pressure is too low. The recommended tire pressure is 35 psi. Do not make any modifications to the N65 scooter Please never refit or modify the scooter in any way, including the steering column and sleeve, rod, folding parts, and rear brake assembly.

  • Page 17: Specifications

    11. Specifications Name NAVEE Electric Scooter N65 Product Model Vehicle: L × W × H (mm) 1190 × 510 × 1220 Dimensions After Folding: L × W × H (mm) 1210× 205 × 406 Net Weight Vehicle Net Weight (kg) 23.5...
  • Page 18 12. FAQ Problem Type Reason Solution Put the scooter in a cool place for a The display screen is This scooter is exposed to direct period of time until cooled enough for black. sunlight or heat for a long time. use.

  • Page 19: Troubleshooting

    Hereby, Brightway Innovation Intelligent Technology (Suzhou) Co., Ltd. declares that the radio equipment type N65 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.

  • Page 20: Waste Electrical And Electronic Equipment (Weee) Directive

    15. Certification European Union Compliance Statement Battery recycling information for the European Union Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union.
  • Page 21 Scan the QR code to access electronic user manuals For more information & after-sales support, contact us via service@navee.tech/www.naveetech.com Manufactured by: ZHEJIANG FEISHEN VEHICLE INDUSTRY CO.,LTD Made in China Original instructions N65-EU-A00...
