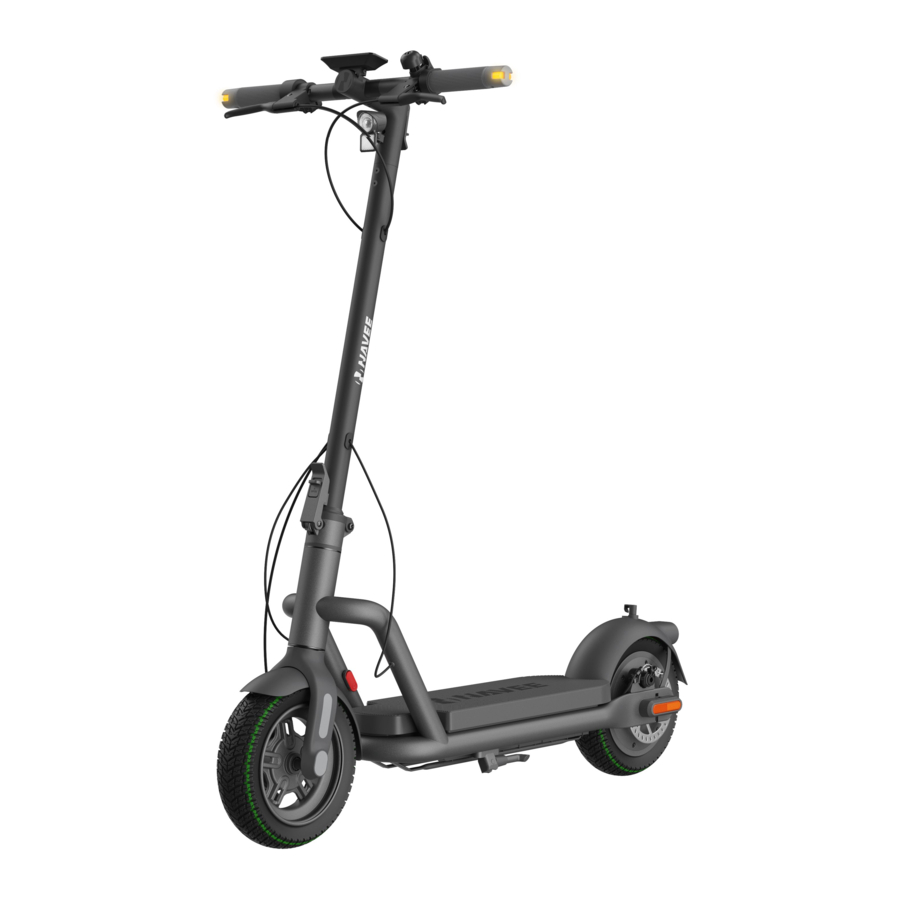

NAVEE N65i Manual

Power on/off and light instructions

1. Power on/off
   Press the button to turn the scooter on, and hold the button for 2 to 3 seconds to turn the scooter off. When the scooter is on, press twice to change riding modes.
2. Headlight & Taillight
   When the scooter is on, press the power button to turn on/off the headlight and taillight. Alternatively, you can enable the automatic light-sensing function via the APP. During the ride, the headlight and taillight will turn on/off automatically based on ambient light brightness.
   Note: After activating the automatic light-sensing function, if you manually turn the light on or off, this function will temporarily deactivate. You will need to restart the electric scooter for it to take effect.
3. Steering light
   When the scooter is on, press the left or right steering light button, then the corresponding steering light and the indicator on the control panel will blink. Meanwhile, the buzzer will respond at the same frequency. Press the button again to turn off the steering light.
4. Brake light
   When riding, hold the brake lever and the brake light (taillight) lights up.

Care & Maintenance

Cleaning

Before cleaning the scooter, you must turn off the power, unplug the charging cables and close the charging cover tightly.

Wipe the main chassis with a soft damp cloth, the hard-to-remove dirt can be scrubbed with a toothbrush. Afterwards, wipe all areas with a dry cloth.

• Do not wash the scooter with a high-pressure water spray.
• Do not clean the scooter with corrosive cleaner, which will damage the external and internal structure of the scooter.

Battery

Always charge before exhausting the battery to prolong the battery's lifespan.

When riding, storing or charging, do not exceed the specified temperature limit (refer to specifications). Failure to follow instructions for use, storage or charging may result in battery damage, failure to charge and void warranty.

The fully charged scooter has an approximate standby time of 120-180 days. If it is not used for a long time, it should be charged every 30 days. Please pay attention to the standby time to prevent irreversible damage to the battery caused by not charging.

• Do not use battery packs of other models or brands, as there may be a safety risk.
• Only use the original battery charger to avoid potential damage or fire.
• If the battery is damaged or soaked with water, do not charge or continue to use it.
• Do not remove the battery. Removing the battery is complicated, and improper operation may affect the operation of the scooter.

Storage

If the scooter will not be used for an extended period, fully charge it, then turn it off and store it in a cool, dry place.
Make sure the scooter is turned off when being transported and kept in its original packaging if possible.

• Please do not leave the scooter under hot sun or severely humid place for extended periods of time.
• Please do not place the scooter near flammable materials.
• This product contains a built-in lithium battery and must be transported only when permitted by local laws and regulations.

Scooter Maintenance Schedule (Recommended):

Maintaining the scooter regularly can help keep the scooter neat and in good condition, avoid safety hazards, minimize breakdowns, slow down the deterioration of the scooter, and extend the scooter's service life.

Wheels, brake pads and other vulnerable parts are worn or damaged and need to be replaced, please contact the after-sales service in time.

Specifications

^[1] Vehicle height: From the ground to the top of the scooter.

^[2] General range: Measured when there is no wind and at 25°C, the scooter is fully charged to ride at a constant speed of 15 km/h on a flat surface with a load of 75 kg.

^[3] To recharge the battery, only use the battery charger provided in the package. Please see battery charger parameters in Specifications.

Safety Instructions

Please read carefully before using the product and keep for future reference. For detailed e-manual, please visit www.naveetech.com

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for riders older than 8 years and persons with physical and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance is only to be used with the power supply unit provided with the appliance.
• Before riding, please wear helmets, hand/wrist pads/knee pads, elbow pads, and other protective gear at all times.
• The scooter shall be used by one person only. Obligation to always wear shoes. Do not divert the use of the vehicle. This product is for personal riding only and is not intended for acrobatic or stunt use.
• The product is recommended for riders above age of 16 and below age of 50. People who are not suitable for riding this product include:
  1. persons under the influence of alcohol or drugs,
  2. persons unable to engage in strenuous physical activities due to health or physical conditions,
  3. persons who are incapable of keeping their balance or who cannot keep their balance due to impaired motor skills,
  4. persons whose size exceeds the weight limit,
  5. women who are pregnant,
  6. persons who suffer from visual and/or hearing impairments.
• Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
• When riding in countries and regions where there are no relevant national standards and regulations for electric scooters, please be sure to strictly abide by the safety requirements for drivers in this operation manual. Brightway innovation Intelligent Technology (Suzhou) Co., Ltd. will not bear any direct responsibility and joint and several liability for all property, personal losses, accidents, legal disputes, and all other adverse events that cause conflicts of interest caused by the use of behaviors in violation of the instructions for use.
• Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowed. When passing through a place designated for pedestrians who are entitled to the right-of-way laws like crosswalk, please get off to walk along with the scooter.
• Do not choose places where children, pedestrians, pets, vehicles, bicycles or other obstacles and potential dangers may appear for your first ride.
• Required preparations for using this product include: ensuring the steering system is properly adjusted, that all connected accessories (such as the folding system) are properly tightened and undamaged, and that the brakes and wheels are in good condition.
• Perform a basic inspection of the electric scooter before each ride. If there are abnormal conditions such as loose parts, low battery alerts, flat tires or excessive wear of tires, strange sounds, malfunctions and other abnormal conditions, stop riding immediately and call for professional support.
• Take the time to learn the basics of the practice to avoid any serious accident that can take place in the first months. Information on practice and safe use (can be found on the website: www.naveetech.com)
• To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
• Do not ride in bad weather, low visibility, or after intense physical exertion.
• Do turn on the headlight and slow down the speed when you ride at dark.
• Make sure that the kickstand is positioned on a flat surface and the kick scooter is stable enough to stand alone before leaving it.
• This electric scooter is a leisure device. However, when entering a public area, it will be considered a means of transportation and subject to possible safety risks for all means of transportation. Riding in strict accordance with the instructions in this manual will protect you and others to the greatest extent.
• The user should check the limits of use in accordance with the local regulations. Ride the scooter on the roads or areas permitted by local regulations and laws and park it in the areas permitted. If the local regulations and laws have different provisions on the maximum speed, the local regulations and laws will prevail. Please respect and follow the road safety and vehicle rules.
• Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind pedestrians, ring your bell to give them a heads-up and slow your scooter down to pass from their left, and keep to the right at a low speed while riding across them (applicable to countries where vehicles drive on the right). When you drive across pedestrians, keep the lowest speed or getting off the vehicle.
• In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk and the most vulnerable. Notify your presence when approaching a pedestrian or cyclist when you are not seen or heard. Cross the protected passages while walking. Cross the protected passages while walking. Avoid high traffic areas or overcrowded areas.
• Riding with high speed or a speed that is not appropriate or adequate for the situation (bad weather conditions, bad surface conditions, or the like) may lead into a potential loss of stability or loss of control. To reduce any risk, you must follow all instructions in this manual. Be careful when mounting and dismantling the product, it may fall and cause injury.
• Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to avoid obstacle jumps. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or slippage.
• Do not lend your scooter to whoever does not know the operations. Before lending the electric scooter to others, please make sure that the rider has read this instruction manual and watched the instruction video, and understood the basic operation. Remind riders to wear safety protection correctly to ensure the safety of riders.
• Contact your seller for appropriate training organizations.
• In all cases, take care of yourself and others.
• Any load attached to the handlebar will affect the stability of the vehicle.
• Do not touch the brake system, it could cause injuries due to sharp edges. The brake may become hot in use. Do not touch after use.
• The A-weighted emission sound pressure level is less than 70 dB(A).
• The mechanical vibrations transmitted by Kick Scooter are less than 2.5 m/s².
• For a better riding experience, it is recommended to carry out a regular maintenance of the product.
• Eliminate any sharp edges caused by use.
• Accessories and any additional items which are not approved by the manufacturer shall not be used.
• Regular maintenance of the vehicle is a factor of safety.
• The self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency and that they may need to be retightened.
• Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake shaft.
• Do not modify or transform the vehicle, including the steering tube and sleeve, stem, folding mechanism and rear brake.
• Do not make any modifications that are not noted in the instructions.
• Make sure the scooter is turned off when being transported and kept in its original packaging if possible.
• In order to avoid accidental injuries such as electric shock and fire caused by improper use, please read the instructions carefully before use, and keep them properly for future reference.
• Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage arising from improper use of this product.
• Power-off the vehicle during charging, or into a certain nonoperational mode.
• Do not charge if the charge port or charge cable is wet. Read this manual carefully before charging.
• Do not charge the scooter at an ambient temperature above 40°C or below 0°C.
• Please keep a safe distance when the scooter is driving on a level/no slope road. The braking distance will increase in wet weather.
• The shock absorption of this product is not adjustable (if applicable).
• The appliance is not intended for use at elevations greater than 2000 m above sea level.
• The appliance shall be disconnected from its power source during service and when replacing parts.
• The external flexible cable or cord of this transformer cannot be replaced; if the cord is damaged, the transformer shall be scrapped.
• If the external flexible cable or cord of this transformer is damaged, it shall be replaced by the manufacturer or their service agent or a similarly qualified person in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This product contains batteries that can only be replaced by qualified technicians or after-sales service
• This appliance contains batteries that are only replaceable by skilled persons.
•
  For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. Do not use a battery charger from any other product. Keep a safe distance from the surrounding combustibles when charging, the vehicle must be placed in a well-ventilated area.
•
  Do not use any third-party battery or battery charger. Use only with NBW54D601D3D supply unit.
•
  Keep plastic covering away from children to avoid suffocation.
•
  Never use the product close to a water source.
•
  Stop using the product when damaged.
•
  As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue. If the expected service life for a component has been exceeded, it may break suddenly, therefore risking causing injuries to the user. Cracks, scratches and discoloration in the areas subject to high stresses indicate that the component has exceeded its service life and please contact an authorized or a specialized repairer.

detachable power supply part

Environmental Instructions

The scooter contains a rechargeable lithium-ion battery pack, and improper disposal of these batteries will cause harm to the environment. Follow the steps below to remove the batteries before disposing of the scooter and discard the batteries properly:

1. Before removing the battery, power off and drain it to the full extent. Then tear the footpad and unscrew the fixing bolts between the pedal and frame to open the foot pedal.
2. Unplug the battery connector, and then remove the batteries. Do not damage the battery case to avoid any risk of injuries. Do not use the battery if it is damaged, has a strange odor, emits smoke, or gets overheated. Keep a leaking battery away from other objects.
3. Discard the removed batteries at a professional recycling facility.

To find a qualified service shop, contact us via
service@navee.tech
www.naveetech.com

Safety Warning

Danger!
Read user manual before use.

WARNING
Read carefully and keep for future reference.

WARNING
Hot Surface

Do not expose to moisture

Light

SMPS incorporating a short circuit-proof safety isolating transformer(inherently or non-inherently)

SMPS (Switch mode power supply unit)

Time-lag miniature fuse-link where X is the symbol for the time/current characteristic as given in IEC 60127

WARNING
For indoor use only (for the charger).

WARNING
Class Il appliance

WARNING
Sharp Edges

The charger intended for use at altitudes not exceeding 5000m.

Direction indicator

Direct current

Alternating current

Polarity of the charger output, center positive

Battery Charger

1. The charger is designed for indoor use only. Do not expose it to rain or snow.
2. Do not used for non-rechargeable batteries, as they can overheat and break.
3. Misuse other types of batteries may burst causing personal injury and damage.
4. Do not incinerate, disassemble or short circuit batteries.
5. If the performance of the batteries decrease substantially, it is time to replace the batteries.
6. Store the charger in a cool and dry place when not in use.
7. Disconnect the supply before making or breaking the connections to the battery.
8. Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.
9. During charging, the battery must be placed in a Well Ventilated area.
10. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
13. The external flexible cable or cord of this transformer cannot be replaced; if the cord is damaged, the transformer shall be scrapped.
14. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Charging instructions

1. Connect the charger directly to a power source. Never use extension cords.
2. The charger can only charge Lithium-ion battery NBW54D601D3D.
3. Avoid reverse charging.
4. The chargers are not intended to charge automobile batteries.
