NAVEE N65 Manual

Product Overview

Accessories

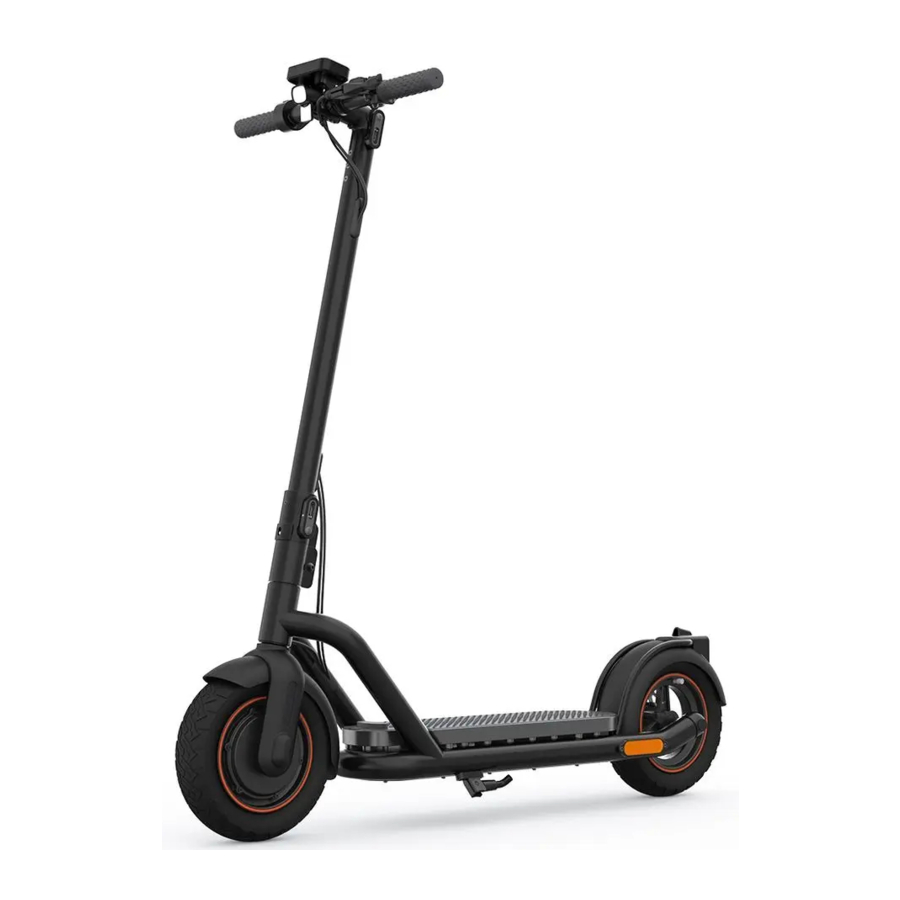

Scooter
Product Overview
The illustrations in this manual are for reference only, the actual appearance shall be subject to actual product.

Power Button
Press and hold the button for 3 seconds to turn the scooter on/off. Whe n thescooter ison, press the button to turn on/off the headlight and tail light.

Gear Switch
When the scooter is on, press the button to switch the gears.

Dashboard
Dashboard Overview

Precautions

Note: Before using the product, please carefully read and abide by the following important safety information.

This product can only be used by one person. Do not carry others at the same time while you are riding.

When riding this product, please wear a safety helmet and suitable protective devices. Do not ride barefoot, or in high-heeled shoes.

Do not ride this product in areas in which it is unsafe or illegal to ride, or on unsafe or off-limits roads.

It is forbidden to ride this product on public roads and highways.

Do not engage in any dangerous or unsafe actions during driving, such as riding with one leg or one hand. Make sure that both of your legs and hands are on the scooter at all times.

Do not attempt to ride over steps, curbs, or other obstacles that have a height of more than 3 cm. Doing so may cause the scooter to overturn and thereby cause personal injury or damage to the driver and/or the product. Any steps, curbs and/or other obstacles with a height below 3 cm should also be avoided as far as possible. Do not park the scooter on an incline.

For your driving safety, please maintain speeds within 32 km/h while riding. Please try to avoid riding at night. If you are required to ride at night, please turn on the lights and maintain speeds of 15 km/h or less.

Do not use this product in an environment with a temperature below -10 ºC / 14 ºF.

In case of uneven roads or other poor road conditions, please slow down in time and attempt to drive slowly and carefully, or else get off and push it until better conditions are available. The scooter is a special riding product, please try riding on a flat, smooth road in optimal conditions.

Do not drive the scooter in snow, rain, mud, icy, or wet roads under any circumstances. Do not drive the scooter over obstacles (such as sand, loose gravel, or road blockages). Doing so may result in loss of balance or grip, and possible injury. If riding in rain is unavoidable, please keep your distance and avoid sudden braking.

Do not immerse the product in water more than 4 cm / 1.57" inches deep to avoid damaging the battery of the scooter.

Do not ride if the roal contains surface.

Safety tips: Do not hang or place any objects on its handlebars and body while riding.

Do not use this product beyond the maximum load (120 kg / 264.6 lbs) as specified by this product.

Users should ride safely and legally in strict accordance with local laws and regulations.

Please avoid using or placing this product in an environment where the temperature is above 40 ºC / 104 ºF or below -10 ºC/ 14 ºF. Please do not place this product together with flammable items so as to reduce the risk fire in the event of unlikely and unfortunate circumstances.

Assembly (Deployment Steps)

Open the kickstand, pull the pin in the direction of the arrow.

After erecting the stem, turn the folding handle 180º counterclockwise to lock.

Press and hold the release button, and turn the folding handle 180º anti-clockwise to unlock. Turn the handle 90º anti-clockwise to its original position, then turn the folding handle 180º clockwise to lock.

Once the scooter is assembled, check if it can be turned on/off properly. press and hold the power button for 3 seconds to turn it on or off.

Safety tips: Before each ride, please check to ensure that the screws, folding safety lock, and other linkage parts and components are not loose.

Folding Steps

The scooter MUST be turned off before being folded. Since the product can be folded, for your protection and safety, do not step on or turn the folding safety lock when riding.

Press and hold the release button, and turn the folding handle 1800 anti-clockwise to unlock. Turn the handle 90º clockwise, then turn the folding handle 180º clockwise to lock.

Hold the stem, press and hold the release button, and turn the folding handle 180º clockwise to unlock, then fold the stem.

Pull the pin and clip it into the pin hole of the upper cover of the rear mudguard.

Fold up the kickstand to complete scooter folding process.

Carry

Carry
Hold the stem with either one hand or both hands to carry.

Charging

Note: Please always use the original charger. If damaged, please contact the manufacturer to replace.
Charging

Open the rubber protector plug of the charging port.

Plug the charger into the charging port.

Close the rubber protector plug after charging.

The scooter is fully charged when the LEDon the charger changes from red (charging) to green.

Do not touch the interface when charging, be careful of electric shock.
Please check and make sure the power is off before charging.
NEVER turn on the power when charging.
Do not use this product when charging to avoid damages.
It is recommended to only charge at temperatures between 0-45 ºC / 32-113 ºF.
Please keep the scooter body away from heat sources, open flames, and flammable and/or explosive gases (pressurized and liquid states).

Correct Riding Method

Check the scooter thoroughly before each ride, and ride only after the folding safety lock is engaged.
Wear well-fitted flat heeled or athletic shoes when riding this product.
Please practice riding safely in an open space.
Keep away from vehicles and crowded areas. Please drive on the roads or areas as stipulated by local laws.
Safety helmet and protective equipment must always be worn while riding.
Rider age range should ideally be between 16 and 50 years (inclusive).
You should not drive on uneven ground. If there are any obstacles, please stop riding, fold up N65, or walk across the blocked passage with product.
Avoid riding in rainy or snowy weather, or at night, and keep away from cars to prevent sudden stops or accidents.
The maximum load capacity of the product (user plus luggage) is 120 kg / 264.6 lbs.
The ideal height of the rider should be between 1.2 m to 2.0 m. (inclusive).
Do not hang or place objects on the scooter body or its handlebars.
This product is a personal riding product and should NEVERbe used for stunt riding.
Users should abide by local laws and regulations.
It is recommended that the front and rear lights are checked before each ride.
Do not attempt to modify or adapt this product.
Never use replacement parts other than professionally produced parts provided by the original manufacturer.

Never use any replacement parts not produced by the manufacturer, nor allow repair by third-parties other than those approved by the manufacturer. You should understand that following the instructions and warnings in this manual can reduce risks, but will not eliminate all risks. Please always remember that you may be at risk of losing control, collisions, and falls while using the scooter. Whenever entering a public area, please abide by the local laws and regulations. Just like all vehicles, the faster you drive a scooter, the longer it takes to stop. On smooth ground, emergency braking may also cause the wheel to slip or the driver to fail. Therefore, it is very important to stay alert and keep a reasonably safe distance from all other people and vehicles. When driving into unfamiliar areas, always stay alert and drive at lower speeds.

This product should be ridden on the roads and areas stipulated by local laws. It is forbidden to ride outside the roads and areas as stipulated by local laws. It is forbidden to ride on highways. When crossing obstacles, stop riding and fold up the scooter, or slow down to pass safely. When passing pedestrians, or navigating blind corners, please sound the bell to alert people of your prescence.

Riding Instructions

Riding Preparation

Choose an open space suitable for riding.
Ride on flat and smooth roads.
Unfold the product according to the instructions and wear protective equipment.
Wear comfortable shoes that fit your feet well, yet are suitable for activity.
Keep away from vehicles and crowded places.
Protect yourself and others under all circumstances.

Start Riding

Pressthe power button to turn the scooter on.
Place one foot on the deck and the other foot on the ground.
Slide the scooter body forward and gently press the accelerator, the scooter will move forward slowly.
When riding, hold the handlebar tightly with both hands to avoid injury, or any falls due to loss of balance.
Once the scooter is running smoothly, move the other foot onto the pedal. When pressing the accelerator, the greater the acceleration angle applied, the faster the scooter speed.

Parking

Under normal circumstances, if you hold the left brake handle, the scooter will power off the accelerator and brake immediately. The greater the grip angle, the greater the braking force.
In case of emergency, hold the left brake lever tightly to activate the front wheel electromagnetic braking and rear wheel friction braking. The rear brake disc will heat up rapidly during use. Please do not ever touch it as doing so may result in harm or burns.

Maintenance

Lubrication
During maintenance, add a small amount of grease or lubricant to the folding part every 6 months. Check the tightness of the screws on the scooter every 3 months and tighten any loose screws.

Battery
Please fully charge the battery before the first use of the scooter. Charging will not damage the battery. If this product is not used for a long time, please make sure it is charged at least every 3 months.

Storage and Daily Maintenance
The scooter should always be turned off before being cleaning. Please never leave the scooter in the hot sun or wet place for extended periods of time. Please keep the scooter clean. Do not clean thes scooter with a high pressure hose or nozzle. Please never scrub with corrosive soaps or solvents.

Inflate the Tire
Check the tire pressure every month, and inflate the tires if the pressure is too low. The recommended tire pressure is 35 psi.

Do not make any modifications to the N65 scooter
Please never refit or modify the scooter in anyway, including the steering column and sleeve, rod, folding parts, and rear brake assembly.

It is recommended to check the folding device, shock absorber, wheel and axle of the scooter regularly. If there is wear, please replace them promptly.
It is recommended that the frame and front fork are regularly checked. Long term use may lead to loosened screws. Clean and tighten the screws regularly if needed.
Please replace any parts in case of failure, damage, or malfunction.
When the parts exceed the expected service life, please replace them in due time.

Specifications

[1] Vehicle height: From the ground to the top of the scooter.
[2] General range: Measured when there is no wind and at 2S' C. the scooter is fulty charged to ride at a constant speed of IS km/h on a flat surface with a load of 75 kg.
[3] To recharge the battery, only use the battery charger provided in the package. Please see battery charger parameters in Specifications.

FAQ

Problem Type	Reason	Solution
The display screen is black	This scooter is exposed to direct sunlight or heat for a tong time.	Put the scooter in a cool place for a period of time until cooled enough for use.
The value is inconsistent with the actual value	Incorrect or missing parameter setting.	Hold down the power button to turn off and then press again to restart the scooter.
The digital display is dim	Poor battery contact or no battery power.	Turn off the power, and then turn it on again. If the fault still exists after the battery is charged, please contact the manufacturer or dealer.
There is slamp shaking in the stem	The screw at the joint of the stem and the folding seat is loose.	Put down the stem, loosen the three screws, then erect the stem again, tighten the screws at the back of the stem, and then put down the stem and tighten the three loose screws to solve the problem.
If the product cannot operate normally, please check whether the following checks have been completed.	Check that the power is on. Check the battery level on the display. Check whether the left brake lever and rear disc brake are properly in place. Check that all sockets and connections are properly connected. If all steps have been completed and the product still does not work properly, please contact the manufacturer or dealer.

Troubleshooting

If the scooter is not working properly, the screen display will show an error message. Please refer to the troubleshooting table below to find your solution based on the error message.

Error	Error Message	Solution
E1	Rx Communication Failure	Check whether the tail light is on, if not, replace the controller or instrument. If it is on, please check whether the wire connection between controller and instrument.
E2	Braking Error	Check the wire connection or replace the brake level.
E3	Accelerator Error	Check the wire connection or replace the accelerator.
E4	Wheel Motor Error	Check whether the wheel motor and the controller cord are well connected or replace the motor.
E5	Controller Error	Check the controller wire connection or replace the controller.
E6	Overheating Warning	Wait until the battery temperature normalizes before resuming use.

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE).Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS
Store Indoors When Not in Use.

To reduce the risk of injury, user must read instruction manual
Wear a helmet, elbow pads and knee pads in case of a fall to avoid injury. Improper driving may lead to falls or serious accidents.
The scooter shall be used by one person only. Shoes muse be worn while riding. Do not use the scooter for other purpose. This scooter is not intended for acrobatic use.
The product is recommended for riders above age of 16 and below age of 50. People who are not suitable for riding this product include:
1. persons under the influence of alcohol or drugs,
2. persons unable to engage in strenuous physical activities due to health or physical conditions,
3. persons who are incapable of keeping their balance or who cannot keep their balance due to impaired motor skills,
4. persons whose size exceeds the weight limit,
5. women who are pregnant,
6. persons who suffer from visual and/or hearing impairments.
Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
When riding in countries and regions where there are no relevant national standards and regulations for electric scooters, please be sure to strictly abide by the safew requirements for drivers in this operation manual. Brightway innovation Intelligent Technology (Suzhou) Co., Ltd. will not bear any direct responsibility and joint and several liability for all property, personal losses, accidents, legal disputes, and all other adverse events that cause conflicts of interest caused by the use of behaviors in violation of the instructions for use.
Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowed. When passing through a place designated for pedestrians who are entitled to the right-of-way laws like crosswalk, please get off to walk along with the scooter.
Do not choose places where children, pedestrians, pets, vehicles, bicycles or other obstacles and potential dangers may appear for your first ride.
Check the scooter before every use. When you note loose parts, low battery alerts, flat tires, excessive wear, strange sounds, malfunctions and other abnormal conditions, stop riding immediately and call for professional support.

To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
Do not ride in bad weather, low visibility, or after intense physical exertion.
Always park the scooter with kickstand on an even and stable surface.
This electric scooter is a leisure device. However, when entering a public area, it will be considered a means of transportation and subject to possible safety risks for all means of transportation. Riding in strict accordance with the instructions in this manual will protect you and others to the greatest extent.
The user should check the limits of use in accordance with the local regulations. Ride the scooter on the roads or areas permitted by local regulations and laws and park it in the areas permitted. The maximum speed of the scooter is limited to 19.9 mph (32 km/h). If the local regulations and laws have different provisions on the maximum speed, the local regulations and laws will prevail Please respect and follow the road safety and vehicle rules.
Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind pedestrians, ring your bell to give them a heads-up and slow your scooter down to pass from their left, and keep to the right at a low speed while riding across them (applicable to countries where vehicles drive on the right). When you drive across pedestrians, keep the lowest speed or getting off the vehicle.
In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk and the most vulnerable. Notify your presence when approaching a pedestrian or cyclist when you are not seen or heard. Cross the protected passages while walking. Cross the protected passages while walking. Avoid high traffic areas or overcrowded areas.
Riding with high speed ora speed that is not appropriate or adequate for the situation (bad weather conditions, bad surface conditions, or the like) may lead into a potential loss of stability or loss of control. To reduce any risk, you must follow all instructions in this manual. Be careful when rnounting and dismantling the product, it may fall and cause injury.
Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to avoid obstacle jumps. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or slippage.
Do not lend your scooter to whoever does not know the operations. Before lending the electric scooter to others, please make sure that the rider has read this instruction manual and watched the instruction video, and understood the basic operation. Remind riders to wear safety protection correctly to ensure the safety of riders.
Contact your seller for appropriate training organizations.
In all cases, take care of yourself and others.
Any load attached to the handlebar will affect the stability of the vehicle. Do not touch the brake system, it could cause injuries due to sharp edges. The brake may become hot in use. Do not touch after use. The A-weighted emission sound pressure level is less than 70 dB(A).
Fora better riding experience, it is recommended to carry out a regular maintenance of the product.
Eliminate any sharp edges caused by use.

Accessories and any additional items which are not approved by the manufacturer shall not be used.
Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake shaft.
Do not modify or transform the vehicle, including the steering tube and sleeve, stem, folding mechanism and rear brake.
Make sure the scooter is turned off when being transported and kept in its original packaging if possible. In order to avoid accidental injuries such as electric shock and fire caused by improper use, please read the instructions carefully before use, and keep them properly for future reference.
Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage arising from improper use of this product.
Do not charge if the charge port or charge cable is wet. Read this manual carefully before charging.
Do not charge the scooter at an ambient temperature above 45 ºC or below 0 ºC.
For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. Do not use a battery charger from any other product. Keep a safe distance from the surrounding combustibles when charging.
Do not use any third-party battery or battery charger. Use only with FY1505462000 supply unit.
Keep plastic covering away from children to avoid suffocation.
Never use the product close to a water source.
Stop using the product when damaged.

Environmental Instructions
The scooter contains a rechargeable lithium-ion battery pack, and improper disposal of these batteries will cause harm to the environment. Follow the steps below to remove the batteries before disposing of the scooter and discard the batteries property:

Before removing the batteries, it is better to use them up and make sure the scooter is disconnected from the power supply. Then unscrew the bottom cover of the scooter to remove it.
Unplug the battery connector, and then remove the batteries. Do not damage the battery case to avoid any risk of injuries.
Discard the removed batteries at a professional recycling facility.
