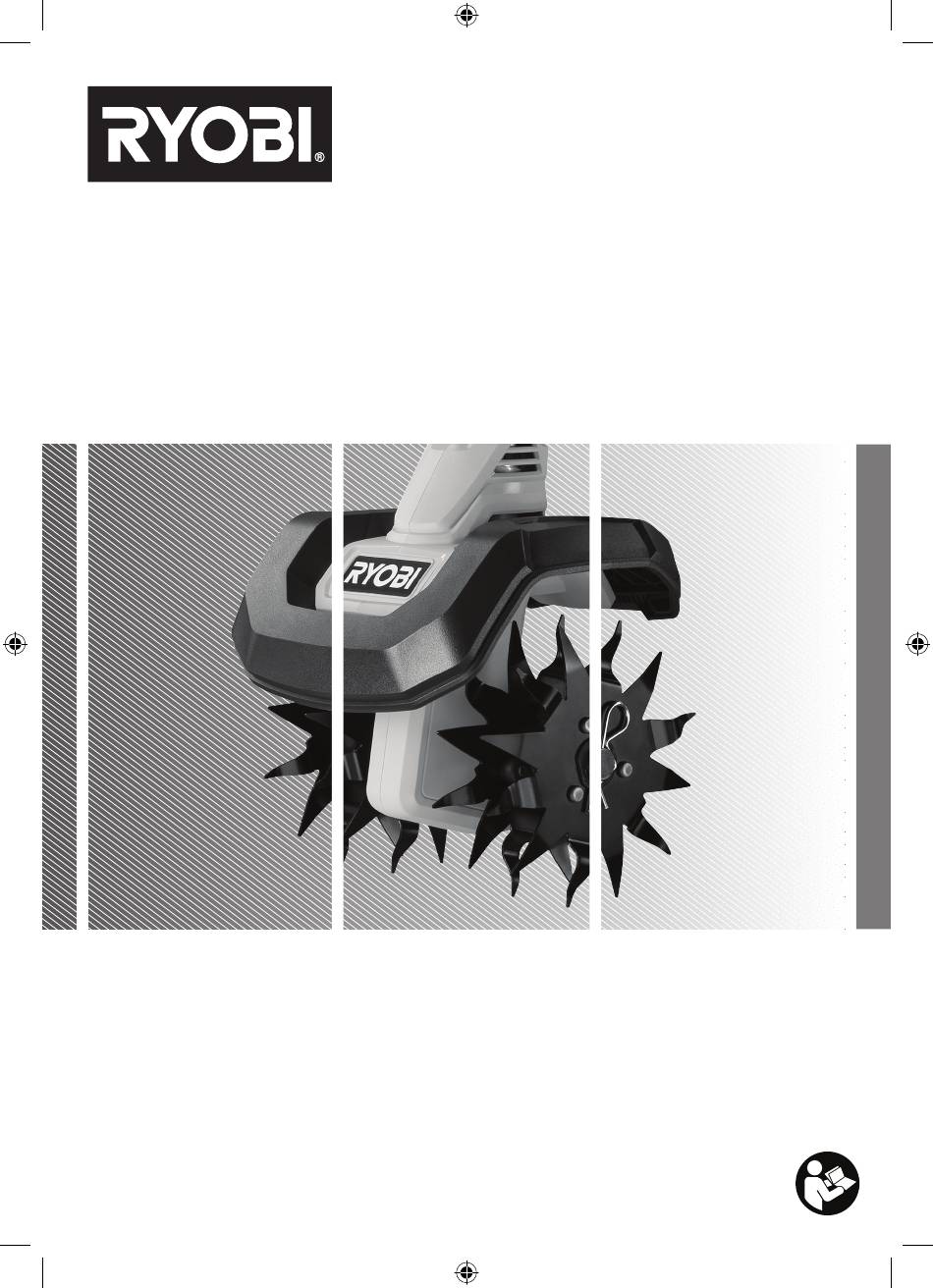

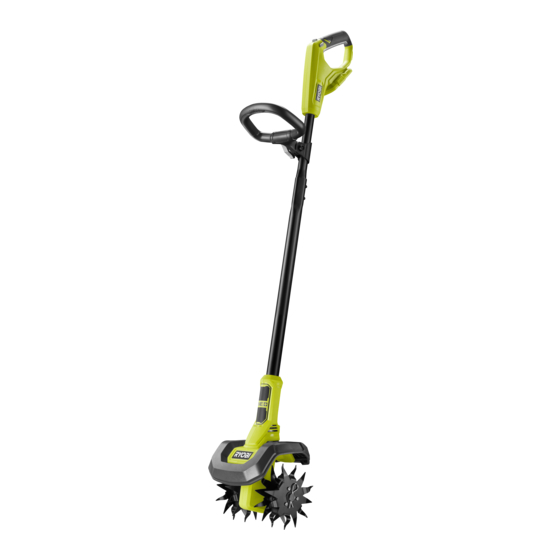

- Page 1 FRONT PAGE R18CLV120...
- Page 2 cord suitable for outdoor use reduces the risk of electric IMPORTANT! shock. It is essential that you read the instructions in this manual ■ If operating a power tool in a damp location is before assembling, operating, and maintaining the unavoidable, use a residual current device (RCD) product.
- Page 3 ■ Maintain power tools and accessories. Check for ■ Exercise extreme caution when reversing or pulling the misalignment or binding of moving parts, breakage product towards you. of parts and any other condition that may affect the ■ Never pick up or carry the product while the motor is power tool’s operation.
- Page 4 ■ Store the product in a location where the ambient temperature is between 0°C and 40°C. Regulatory Compliance Mark (RCM). The product meets applicable TRANSPORTING LITHIUM BATTERIES regulatory requirements. Transport the battery pack in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party.
- Page 5 R18CLV120 Lock-out button Speed selector switch Trigger switch Handle adjustment knob Shaft lock bolts Lower shaft Tine guard Tine guard locking slot Handle Operator's manual Outer tine D Inner tine C Inner tine B Outer tine A Hitch pin Crosshead screwdriver...
- Page 6 Always wear safety goggles or safety NOTE: The product will not operate properly if the tines are installed incorrectly. glasses with side shields protection when operating the product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
- Page 7 Place tine B on the tine shaft to the right of Insert the hitch pin into the holes located Place tine C on the tine shaft to the left of the gearbox. The stamped side of the tine on the side of the tine shaft. the gearbox.
- Page 8 Four-tine operation p. 9 p.11 Two-tine operation Cleaning the tines p.13 Storing the product p.15...
- Page 9 FOUR-TINE OPERATION WARNING: Keep hands and feet away from the rotating tines at all times. CAUTION: The product must be adequately controlled by using a two-handed operation at all times. 1. Install the battery pack until the latches click into place. Make sure that the battery pack is securely attached before using the product.
- Page 10 NOTE: For cultivating ease and safety, use a forward and backward motion when using the product. WARNING: Never operate the product on rocky surfaces. Operation...
- Page 11 TWO-TINE OPERATION 1. Press the latches on each side, and remove the battery pack. CAUTION: Wait for the product to cool before removing the tines. 2. Unlock the hitch pin, and remove tine A. Install the hitch pin back in place. 3.
- Page 12 5. Press the lock-out button, and squeeze the trigger to start operating the product. Use the speed selector switch to increase the power when necessary. Operation...
- Page 13 CLEANING THE TINES 1. Press the latches on each side, and remove the battery pack. 2. Unlock the hitch pin and remove tine A. 3. Unlock the hitch pin and remove tine D. 4. Unlock the tine guard by using a coin or screwdriver to turn the slot counterclockwise.
- Page 14 6. Clean the product with a soft, dry cloth. Clean the debris from the tines with a stiff brush. WARNING: Do not use water to clean the tines. Maintenance...
- Page 15 STORING THE PRODUCT NOTE: Remove all foreign materials from the product. 1. Press the lock-out button to lock the trigger switch in place. 2. Press the latches on each side of the battery pack to remove the battery pack. 3. Turn handle adjustment knob...
- Page 16 RC18627U, RC18150, RC18150U, RC18120, RC18115, BCL1418IV Cordless cultivator WARNING! The declared vibration total values and the Model R18CLV120 declared noise emission values given in this instruction Weight without battery pack 4.8 kg manual have been measured in accordance with a...
