Summary of Contents for Ryobi R18CLVH1

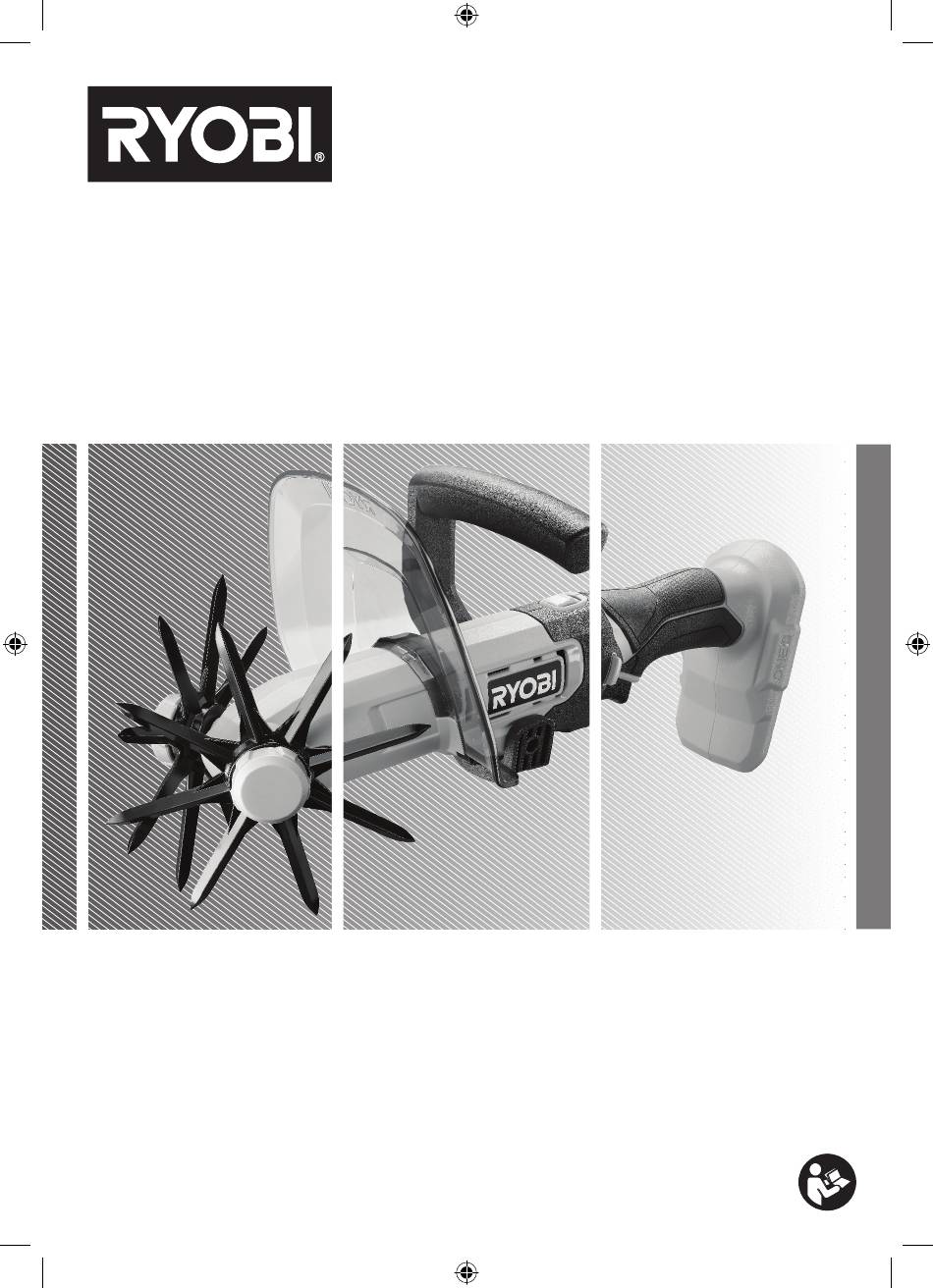

  • Page 1 FRONT PAGE R18CLVH1...

  • Page 2: Intended Use

    protected supply. Use of an RCD reduces the risk of IMPORTANT! electric shock. It is essential that you read the instructions in this manual PERSONAL SAFETY before assembling, operating, and maintaining the product. ■ Stay alert, watch what you are doing, and use common sense when operating a power tool.

  • Page 3: Transportation And Storage

    tool repaired before use. Many accidents are caused ■ Never allow children or people who are unfamiliar with by poorly maintained power tools. these instructions to use the product. Local regulations may restrict the age of the operator. ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are ■...

  • Page 4: Maintenance

    no batteries can come in contact with other batteries Beware of thrown or flying objects. or conductive materials while in transport by protecting Keep all bystanders, especially exposed connectors with insulating, non-conductive caps children and pets, at least 15 m away or tape.
  • Page 5 R18CLVH1 Tine guard Front handle Speed selector Rear handle Trigger release button Short screws Long screws Switch trigger Compression spring Blade release cap Pick tine Battery pack Charger Grease Know your product...
  • Page 6 Always wear safety goggles or safety Push down to attach the tine guard into Secure the base part of the tine guard glasses with side shields when the product. onto the product using the short screws operating the product. Failure to do so and rotate clockwise to tighten.
  • Page 7 Secure the upper part of the tine guard onto the product using the short screws Push the front handle onto the product and rotate clockwise to tighten. until it is securely attached. Secure the left side of the front handle Attach the left tine and blade release Attach the right tine onto the product.
  • Page 8 Operating the Adding grease to p.10 product the product Cleaning the Storing the product p.12 p.13 product...
  • Page 9 TWO-TINE OPERATION WARNING: Keep hands and feet away from the rotating tines at all times. WARNING: The product must be adequately controlled by using two-handed operation at all times. 1. Insert the battery pack into the product until the latches click into place. Make sure that the battery pack is securely attached before using the product.
  • Page 10 ADDING GREASE TO THE PRODUCT NOTE: Grease is added on the right hand drive shaft (from operator’s position) during production to ensure that the tines run smoothly. The grease needs to be reapplied to the drive shaft after approximately 1 hour of use to help limit vibration in the tines.
  • Page 11 5. Attach the right tine onto the drive shaft. 6. Reinstall the compression spring onto the drive shaft. 7. Reinstall the blade release cap onto the drive shaft. Operation...

  • Page 12: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the latch on each side, and remove the battery pack. 2. Clean the product with a soft brush. Remove all foreign materials. WARNING: Do not use water to clean the tines. Maintenance...

  • Page 13: Storing The Product

    STORING THE PRODUCT 1. Clean the product. 2. Press the latch on each side, and remove the battery pack. 3. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.

  • Page 14: Product Specifications

    Cordless cultivator manual have been measured in accordance with a standardised test and may be used to compare one tool with Model R18CLVH1 another. They may be used for a preliminary assessment Rated voltage 18 V d.c. of exposure.
  • Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961478278-02...
