Regent Lighting Solutions Aries Installation Instructions

Aries
DO NOT CONNECT THE FITTING LIVE
Electrical products can cause death, injury, or damage to property. Installation of this
product must be carried out by a qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On completion of installation, the
Certificate of Compliance must be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE
WITH IEC 60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items
without incurring obligation and whilst every effort is made to ensure that descriptions, specifications
and other information in this catalogue are correct, no warranty is given in respect thereof and the
company shall not be liable for any error therein.
"The light source contained in this luminaire shall only be replaced by the
manufacturer or his/her service agent or a similar qualied person."
The above testing allows access to the Driver and LED compartments, however
these test should only be carried out by trained professional, incorrect handling
of the delicate components could cause further damage to the luminaire.
If the luminaire is opened for testing, all components must be re-assembled as
before, as incorrect re-assembly will impact the IP rating of the luminaire.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
July 2018

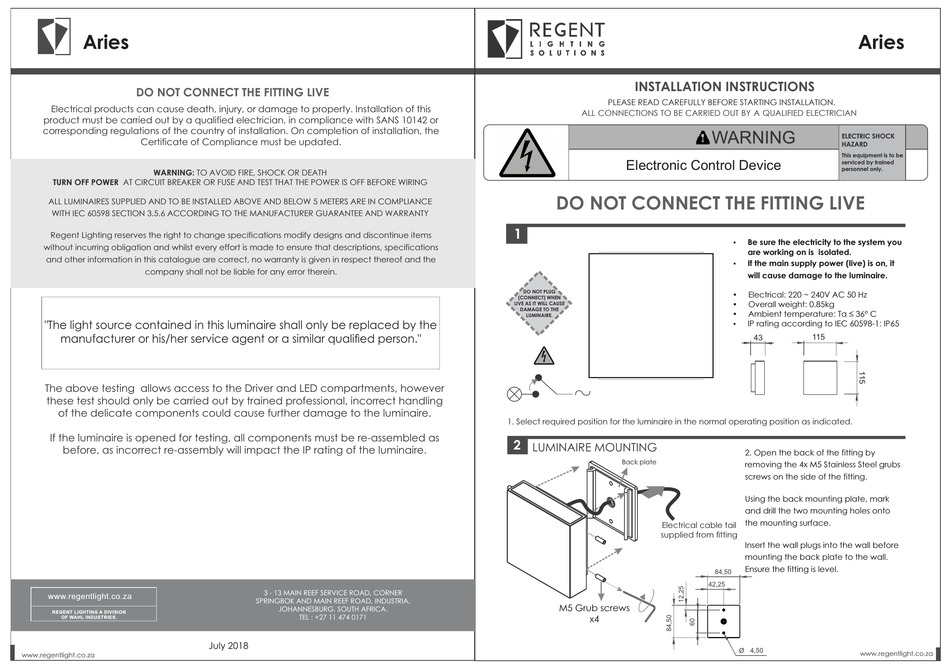

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
1. Select required position for the luminaire in the normal operating position as indicated.
2
2
LUMINAIRE MOUNTING
Back plate
Electrical cable tail
supplied from tting
M5 Grub screws
x4
Aries
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Be sure the electricity to the system you
Ÿ
are working on is isolated.
If the main supply power (live) is on, it
Ÿ
will cause damage to the luminaire.
Ÿ Electrical: 220 ~ 240V AC 50 Hz
Ÿ Overall weight: 0.85kg
Ÿ
Ambient temperature: Ta ≤ 36° C
IP rating according to IEC 60598-1: IP65
Ÿ
43 115
2. Open the back of the fitting by
removing the 4x M5 Stainless Steel grubs
screws on the side of the fitting.
Using the back mounting plate, mark
and drill the two mounting holes onto
the mounting surface.
Insert the wall plugs into the wall before
mounting the back plate to the wall.
Ensure the fitting is level.
