Regent Lighting Solutions Strata Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic Control Device
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician,
in compliance with SANS 10142 or corresponding regulations of the
country of installation. On completion of installation, the Certificate of
Compliance must be updated.
For non user replaceable light source: The light source contained in this luminaire
shall only be replacedby the manufacturer or his/her service
agent or a similar qualied person
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH
SANS 60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items
without incurring obligation and whilst every effort is made to ensure that descriptions, specifications
and other information in this catalogue are correct, no warranty is given in respect thereof and the
company shall not be liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Strata
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
May 2021

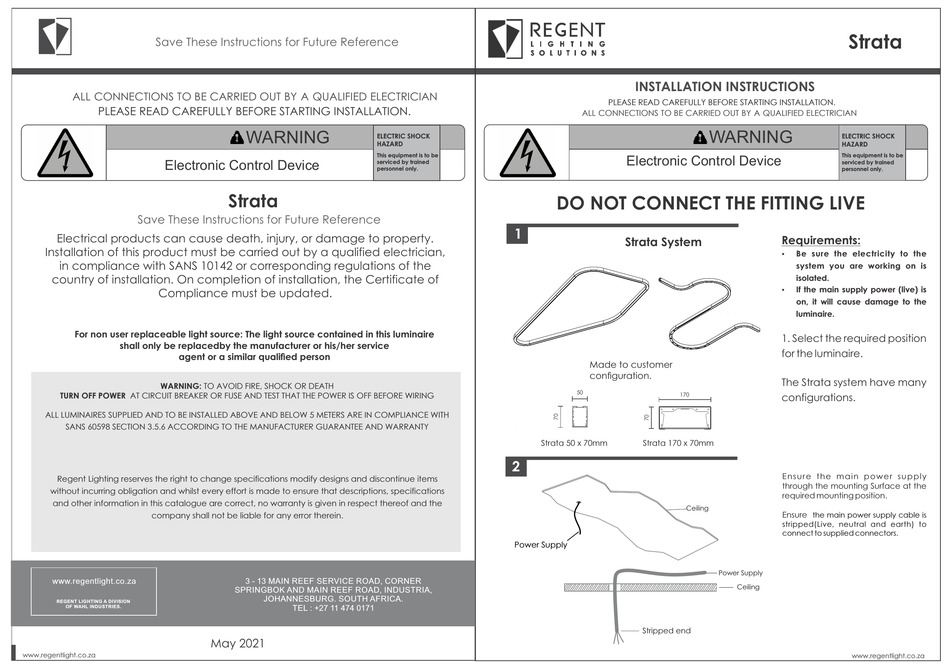

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1 1
Strata System
Made to customer
conguration.
50
170
2
Strata 50 x 70mm Strata 170 x 70mm
2
Ceiling
Power Supply
Stripped end
Strata
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to the
Ÿ
system you are working on is
isolated.
If the main supply power (live) is
Ÿ
on, it will cause damage to the
luminaire.
1. Select the required position
for the luminaire.
The Strata system have many
configurations.
Ensure the main power supply
through the mounting Surface at the
required mounting position.
Ensure the main power supply cable is
stripped(Live, neutral and earth) to
connect to supplied connectors.
Power Supply
Ceiling
