Regent Lighting Solutions Longo Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic Control Device
Electrical products can cause death, injury, or damage to property. Installation of this product
must be carried out by a qualified electrician, in compliance with SANS 10142 or corresponding
regulations of the country of installation. On completion of installation, the Certificate of
Compliance must be updated.
For non replacable lightsources:
The light source of this luminaire is not replaceable; when the
light source reaches its end of life the whole luminaire shall be replaced
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without incurring obligation and
whilst every effort is made to ensure that descriptions, specifications and other information in this catalogue are correct, no
warranty is given in respect thereof and the company shall not be liable for any error therein.
9
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
9. Place the fitting into the aluminium extrusion.
Connect to main supply using the electrical tail
supplied from the fitting.
Ensure the fitting is secure in the aluminium
extrusion.
Switch Mains to
Live Red
Luminaire
DO NOT PLUG
(CONNECT) WHEN
(L) Brown LIVE AS IT WILL CAUSE
Earth Loop
Green/Yellow
DAMAGE TO THE
(E) Green/Yellow
LUMINAIRE.
(N) Blue
Neutral loop
Black or Blue
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
March 2018

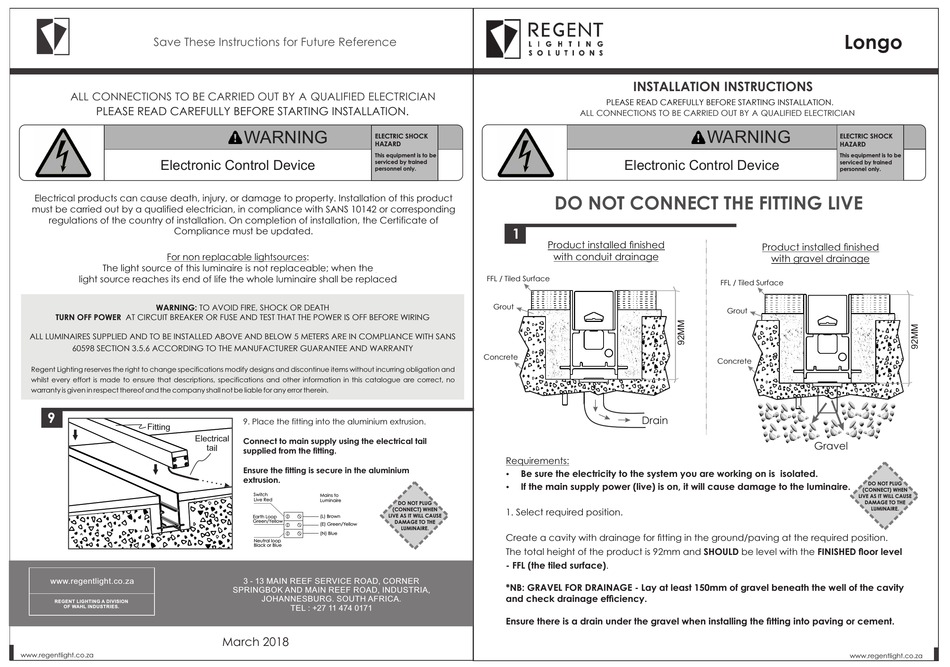

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
Product installed finished
with conduit drainage
FFL / Tiled Surface
Grout
Concrete
Drain
2
Requirements:
Be sure the electricity to the system you are working on is isolated.

If the main supply power (live) is on, it will cause damage to the luminaire.

1. Select required position.
Create a cavity with drainage for fitting in the ground/paving at the required position.
The total height of the product is 92mm and SHOULD be level with the FINISHED floor level
- FFL (the tiled surface).
*NB: GRAVEL FOR DRAINAGE - Lay at least 150mm of gravel beneath the well of the cavity
and check drainage efficiency.
Ensure there is a drain under the gravel when installing the fitting into paving or cement.
Longo
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Product installed finished
with gravel drainage
FFL / Tiled Surface
Grout
Concrete
Gravel
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
