Regent Lighting Solutions Acer Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic Control Device
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician, in
compliance with SANS 10142 or corresponding regulations of the country of
installation. On completion of installation, the Certificate of Compliance must
– For non-user replaceable light sources:
"The light source contained in this luminaire shall only be replaced by the
manufacturer or his/her service agent or a similar qualied person."
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Acer
be updated.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
March 2018

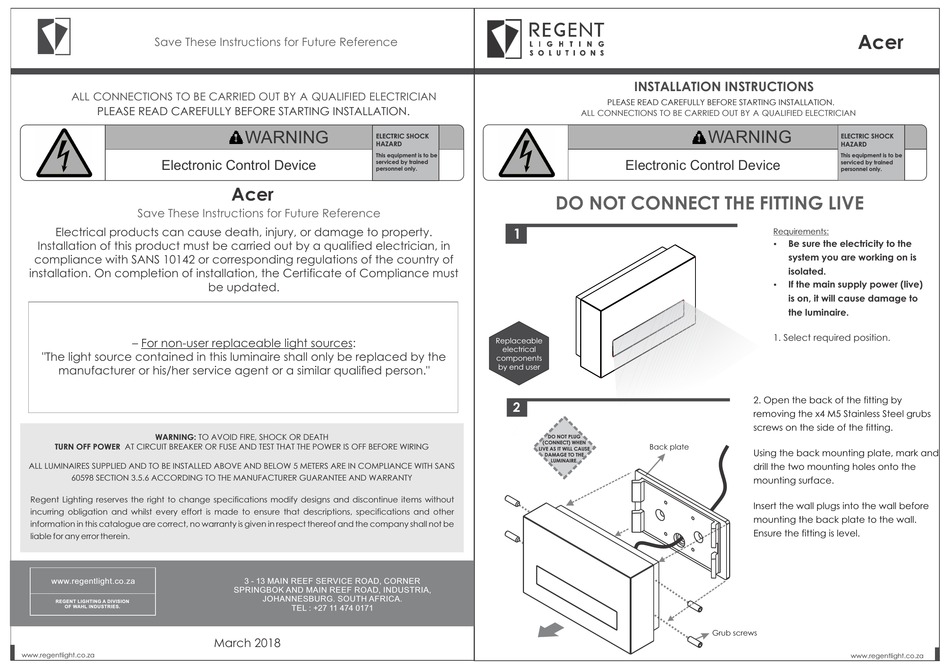

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
Replaceable
electrical
components
by end user
2
2
DO NOT PLUG
(CONNECT) WHEN
Back plate
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Acer
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to the
Ÿ
system you are working on is
isolated.
Ÿ If the main supply power (live)
is on, it will cause damage to
the luminaire.
1. Select required position.
2. Open the back of the fitting by
removing the x4 M5 Stainless Steel grubs
screws on the side of the fitting.
Using the back mounting plate, mark and
drill the two mounting holes onto the
mounting surface.
Insert the wall plugs into the wall before
mounting the back plate to the wall.
Ensure the fitting is level.
Grub screws
www.regentlight.co.za
