Regent Lighting Solutions Giza Quick Start Manual

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic/Magnetic Control Device
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property. Installation of
this product must be carried out by a qualified electrician, in compliance with
SANS 10142 or corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must be updated.
– For non-user replaceable light sources:
"The light source contained in this luminaire shall only be replaced by the
manufacturer or his/her service agent or a similar qualied person."
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Giza
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
May 2020

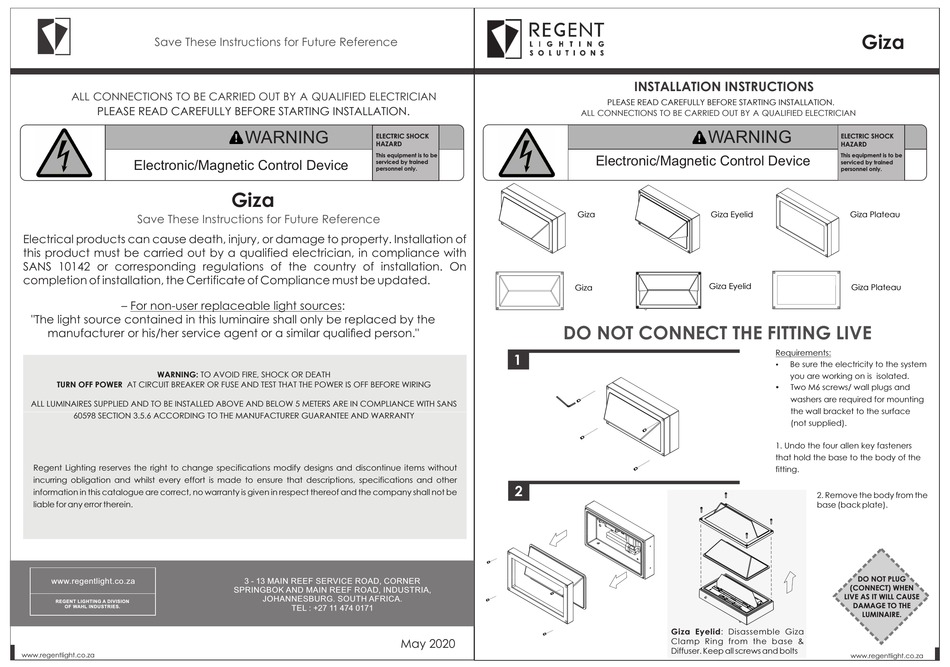

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic/Magnetic Control Device
Giza
1
1
Giza
DO NOT CONNECT THE FITTING LIVE
1
2
2
Giza Eyelid: Disassemble Giza
Clamp Ring from the base &
Diffuser. Keep all screws and bolts
Giza
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Giza Eyelid Giza Plateau
Giza Eyelid
Giza Plateau
Requirements:
Be sure the electricity to the system
Ÿ
you are working on is isolated.
Ÿ Two M6 screws/ wall plugs and
washers are required for mounting
the wall bracket to the surface
(not supplied).
1. Undo the four allen key fasteners
that hold the base to the body of the
fitting.
2. Remove the body from the
base (back plate).
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
