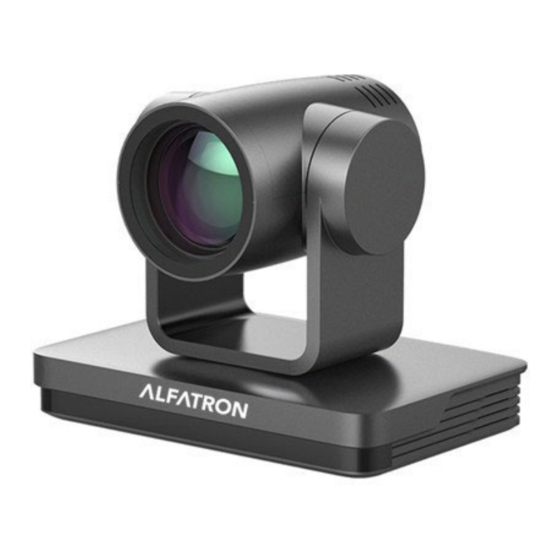

ALFAtron ALF-20X-SDIC User Manual

Full hd ptz camera with monocular ai tracking
Hide thumbs Also See for ALF-20X-SDIC:
Table of Contents

Advertisement

Quick Links

Download this manual
www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY
ALF-12X-SDIC
ALF-20X-SDIC
With Monocular AI
Tracking
Full HD PTZ Camera User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALF-20X-SDIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALFAtron ALF-20X-SDIC

Summary of Contents for ALFAtron ALF-20X-SDIC

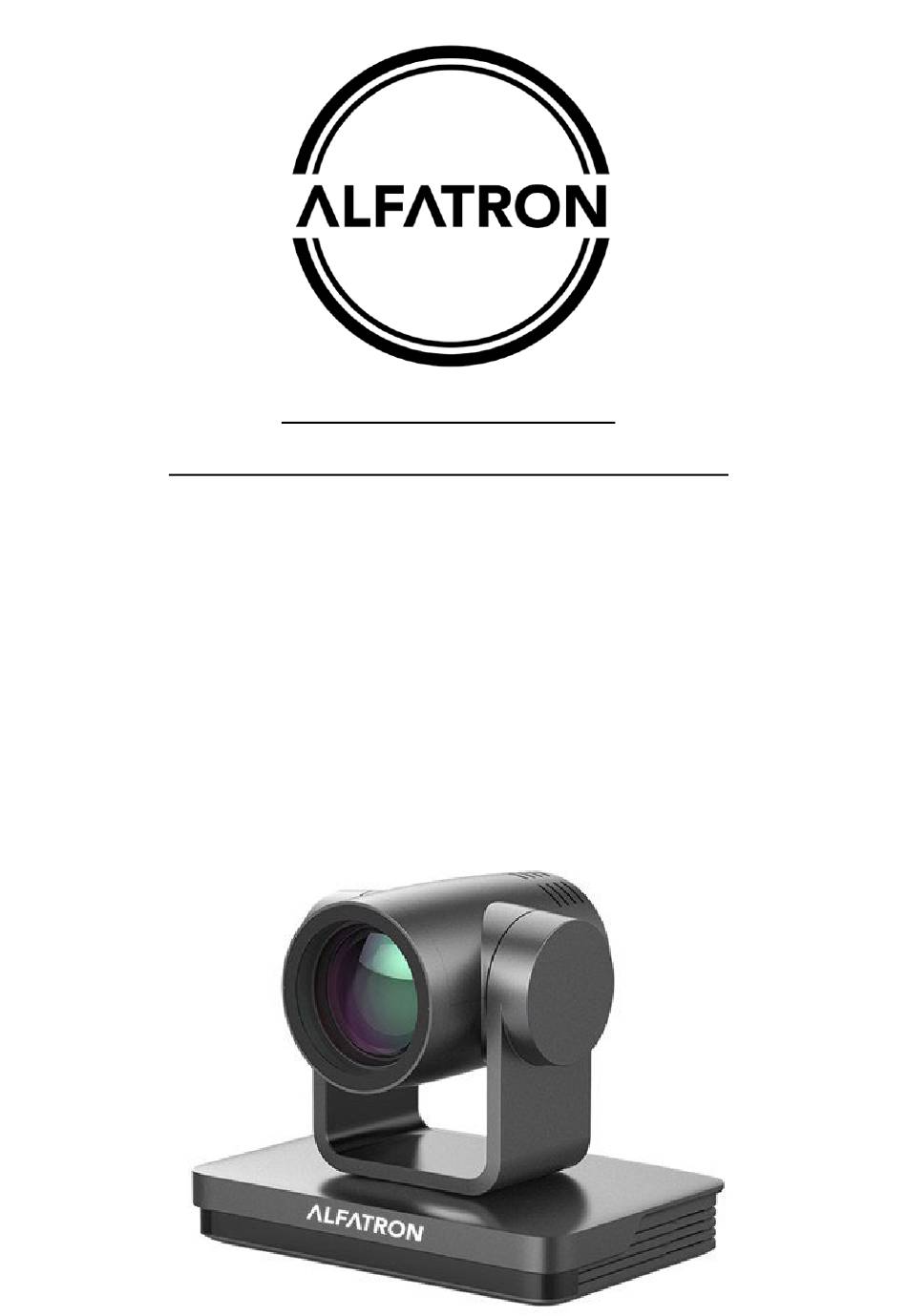

  • Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-12X-SDIC ALF-20X-SDIC With Monocular AI Tracking Full HD PTZ Camera User Manual...
  • Page 2 Alfatron ALF-12X-SDIC, ALF-20X-SDIC • Attention Improper operations may damage the product structure and result in mechanical failure. Please note the following tips: Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands.
  • Page 3 Alfatron ALF-12X-SDIC, ALF-20X-SDIC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Alfatron ALF-12X-SDIC, ALF-20X-SDIC This manual introduces functions, installations, and operations for this PTZ camera in detail. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to the product caused by heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Table Of Contents

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC Content 1. Camera Installation ..............................2 1.1 Camera Introduction ............................2 1.2 General Operation at Boot up .......................... 3 1.3 Mounting Brackets ............................3 2. Product Overview ..............................6 2.1 Dimension ............................... 5 2.2 Accessory ................................ 7 2.3 RS-232 Interface .............................

  • Page 6: Camera Installation

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 1. Camera Installation 1.1 Camera Introduction Figure 1.1 Interface of the SDIC models (All models) 1. Camera Lens 2. Camera Base 3. Remote Control Receiving Indicator 4. Infrared Receiver 5. Tripod Screw Hole 6. Screw Hole for Tripod 7.

  • Page 7: General Operation At Boot Up

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 1.2 General Operation at Boot up 1) After powering on and self-checking, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#. If the unit is restored to factory defaults, the remote control default address will restore to 1#.
  • Page 8 Alfatron ALF-12X-SDIC, ALF-20X-SDIC...
  • Page 9 Alfatron ALF-12X-SDIC, ALF-20X-SDIC 2) Ceiling Mounting...

  • Page 10: Product Overview

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 2. Product Overview 2.1 Dimension Figure 2.2 Product Dimension...

  • Page 11: Accessory

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 2.2 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wireless Remote Control IR Remote Control Ceiling Mount RS232 Cable Wall Mount User Manual USB3.0 Cable 2.3 RS-232 Interface 1).

  • Page 12: Rotary Dip Switch

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 3). RS232 (DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4). VISCA networking as shown below: Camera cascade connection...

  • Page 13: Main Features

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC Note: 1. Please remember to reboot the camera to take effect when video format is switched. 2. If switched to F, please power off and reboot for setting to take effect. 2.5 Main Features This series camera has exceptional functionality, superior performance and rich video output interfaces. Featuring advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition.
  • Page 14 Alfatron ALF-12X-SDIC, ALF-20X-SDIC Minimum 0.5Lux (F1.8, AGC ON) Illumination 2D & 3D DNR White Balance Auto/Manual/One Push/Specify color temperature (range: 2400k-7100k) Focus/Aperture/ Auto/Manual/One Push Focus Electronic Shutter Iris Auto/Manual Shutter Auto/Manual ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve >50dB...

  • Page 15: Remote Control

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC Storage Humidity 20%~95% Working Temperature -10℃~+50℃ Working Humidity 20%~80% Dimension 181mmX115mmX149mm Weight 1.15KG Accessory Package Power Supply, RS232 Control Cable, USB3.0 cable(U3 model), IR Remote Control, User Manual Optional Accessories Ceiling / Wall Mount (Extra Cost) 3. Remote Control 3.1 Match Code for Wireless Remote Control...
  • Page 16 Alfatron ALF-12X-SDIC, ALF-20X-SDIC position is set, the camera will return to preset 0 position). 2. Camera Selection Select the camera address to control. 3. Focus Control Auto: Auto focus mode Manual: Manual focus mode Focus + (near): Press【FOCUS +】key (Valid only in manual focus mode) Focus - (far): Press【FOCUS -】key (Valid only in...
  • Page 17 Alfatron ALF-12X-SDIC, ALF-20X-SDIC 6. Pan/Tilt Control Up: press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint. The action will stop as soon as the key is released.

  • Page 18: Menu Introduction

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+ Auto: Enter aging mode 7) 【#】+【*】+ Auto: Exit aging mode 8) 【*】+【#】+ Manual: Restore the default user name,...
  • Page 19 Alfatron ALF-12X-SDIC, ALF-20X-SDIC 2). Menu Tree...

  • Page 20: Network Configuration

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 4. Network Configuration 4.1 Network Connection Direct connection: Connect the camera and computer via a network cable. Internet connection mode: Connect the camera to the Internet via Router or Switcher. User can login to the device via the browser web page.
  • Page 21 Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 4.2 Web Interface Login 1) Web Page Login Input the default IP address 192.168.5.163 in the browser and click the Enter button to enter into Web Client login page. User can login as administrator and normal user. If logging in as administrator (Default User name/Password: admin), users can preview, playback, and set configuration in the Web Client;...

  • Page 22: Streaming

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 4.3 Streaming 1). Video Stream Capture Configurations -> Video Configure-> Video Encode Configure the parameters according to the network environment. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as per below: rtsp://192.168.5.163:554/live/av0（av0 main stream）...

  • Page 23: Software Upgrading

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 2). Push Video Stream Configurations -> Video Configure-> Stream Publish Push RTMP stream to public network server, the stream camera must be on the public network, or else it will fail to connect to the server.
  • Page 24 Alfatron ALF-12X-SDIC, ALF-20X-SDIC 3). Click "browse" to select .mrg update file, then click on the upgrade button to finish software upgrading. 4). Camera will reboot after completion of firmware update. It prompts with "successful upgrade". Log in to check the firmware version to make sure software upgrade successful.

  • Page 25: Monocular Tracking

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 5. Monocular AI Tracking Function Web Page Configuration 1. After login, enter into the management interface and turn on Tracking below “Monocular Tracking” 2. On the right top is PTZ control area, in which you can set the preset region of Regional Tracking. Interface is as below.

  • Page 26: Serial Port Communication And Control

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC 5. Serial port communication and control The camera could be controlled through RS232/RS485 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None.

  • Page 27: Visca Protocol Control Command

    ALF-25X-4KCAM 5.2 VISCA Protocol Control Command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF...
  • Page 28 ALF-25X-4KCAM Command Function Command packet Note One Push mode 8x 01 04 38 04 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus Direct 0t 0u 0v 0w FF tuvw: Focus Position High 8x 01 04 58 01 FF Normal 8x 01 04 58 02 FF CAM_AFSensitivity...
  • Page 29 ALF-25X-4KCAM Command Function Command packet Note Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position 8x 01 04 33 02 FF Back Light CAM_Back Light Compensation 8x 01 04 33 03 FF Reset 8x 01 04 21 00 FF 8x 01 04 21 02 FF WDR Level Setting CAM_WDRStrength...

  • Page 30: Visca Protocol Inquiry Command

    ALF-25X-4KCAM Command Function Command packet Note 4:720P60 9:720P25 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft 8x 01 06 01 VV WW 01 01 FF VV: Pan speed 0x01 (low speed) to 0x18...
  • Page 31 ALF-25X-4KCAM y0 50 02 FF CAM_BacklightModeInq 8x 09 04 33 FF y0 50 03 FF CAM_WDRStrengthInq 8x 09 04 51 FF y0 50 00 00 00 0p FF p: WDR Strength CAM_NRLevel(2D) Inq 8x 09 04 53 FF y0 50 0p FF P: 2DNRLevel CAM_NRLevel(3D) Inq 8x 09 04 54 FF...

  • Page 32: Pelco-D Protocol Command List

    ALF-25X-4KCAM 5.4 Pelco-D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address...

  • Page 33: Maintenance And Troubleshooting

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 6. Maintenance and Troubleshooting 6.1 Maintenance 1) Please power off the camera and disconnect the power adapter and socket if it’s not used for n extended period of time. 2) Use a soft cloth to clean the camera cover.

  • Page 34: Warranty

    Alfatron ALF-12X-SDIC, ALF-20X-SDIC and ALF-30X-SDIC 7. Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
